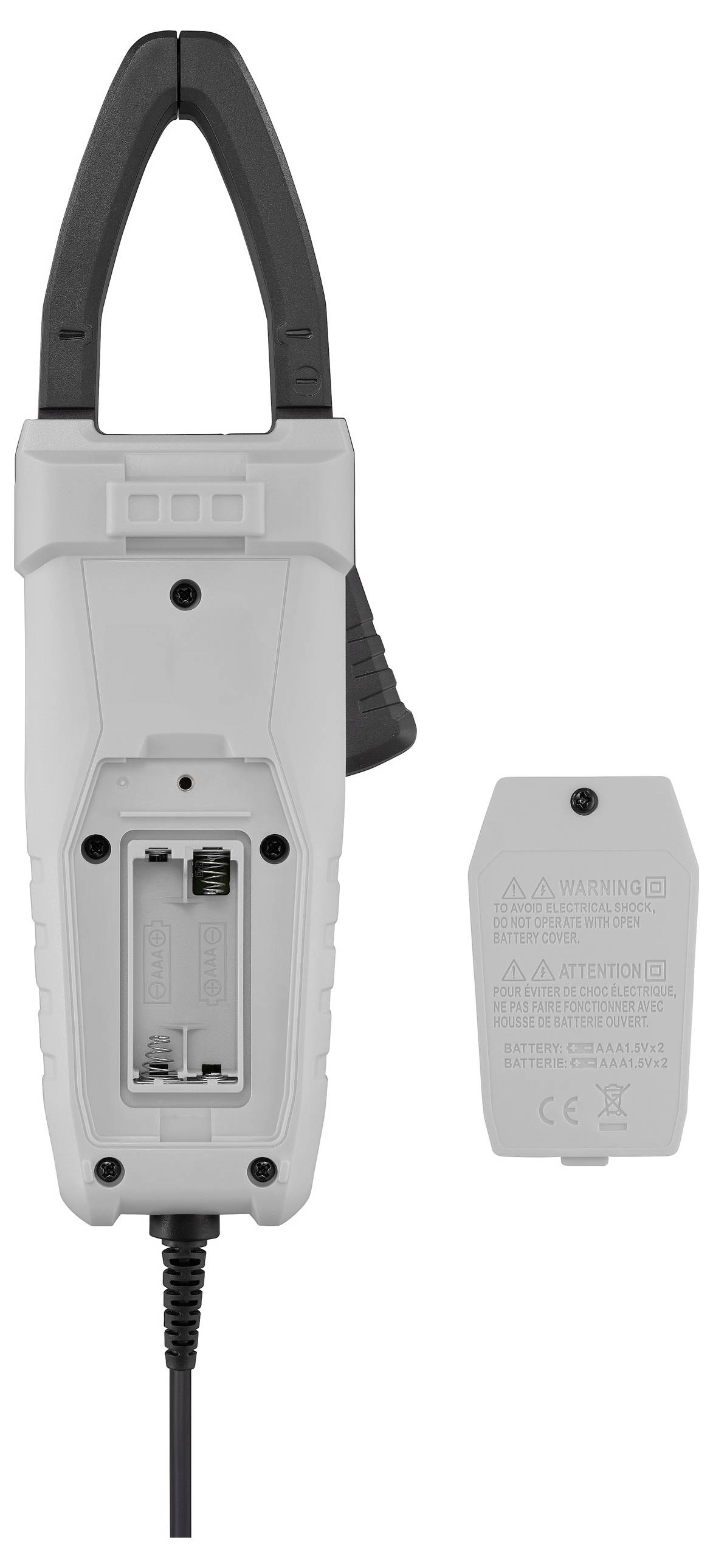

Electrical clamp meter with black jaws, open battery compartment showing springs for batteries; cover side displays safety instructions and symbols.

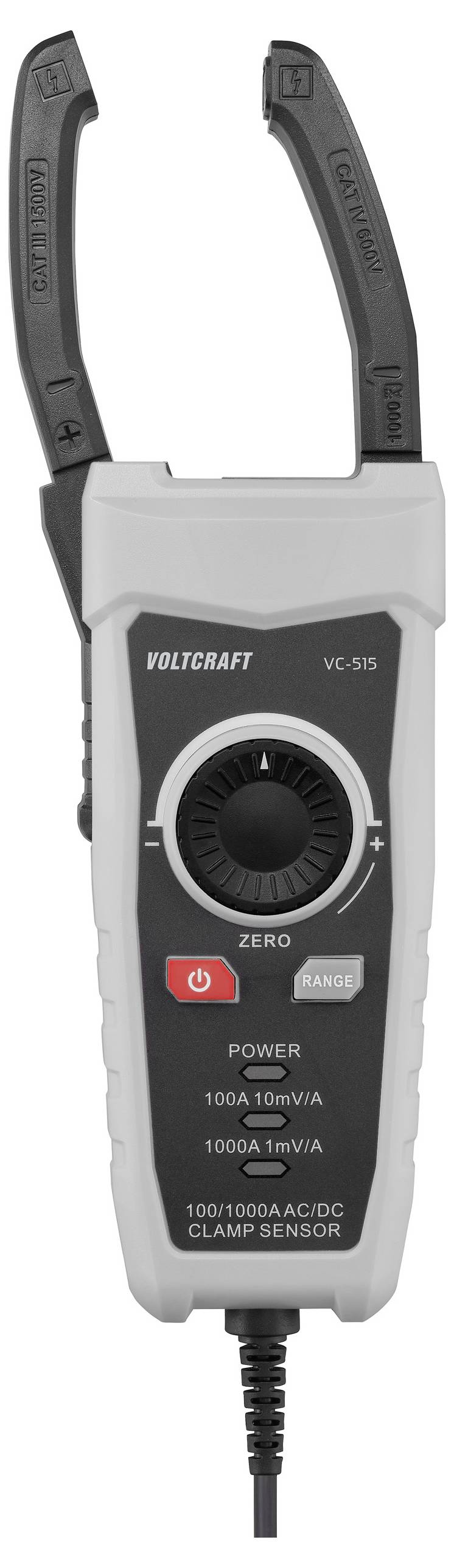

Digital clamp meter, 'VOLTCRAFT VC-510', displays power, mode switch, and probes on top. Used for measuring electric currents.

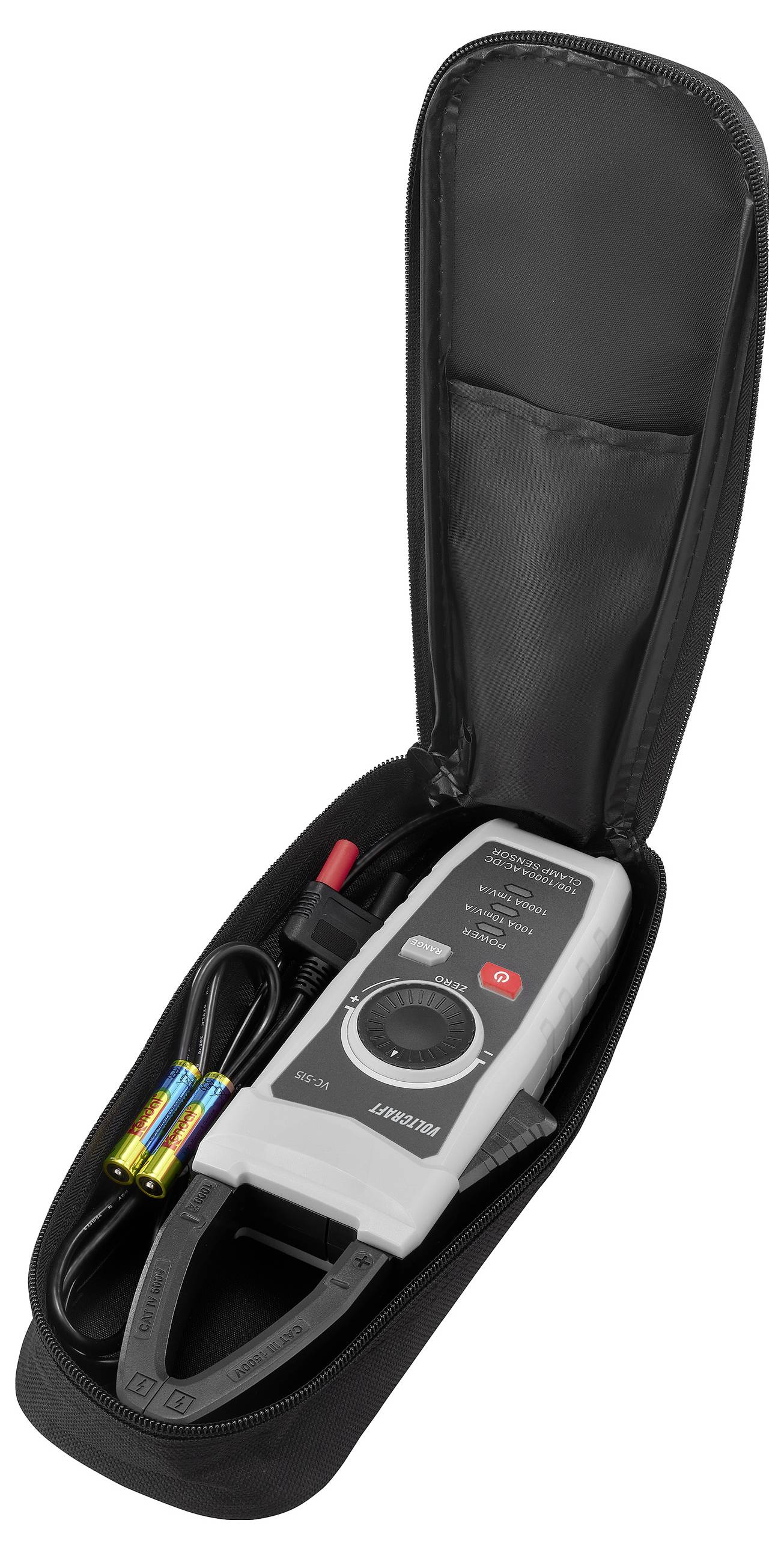

A digital clamp meter with a display screen and control dial, next to a black carrying case and two AA batteries, used for measuring electrical current.

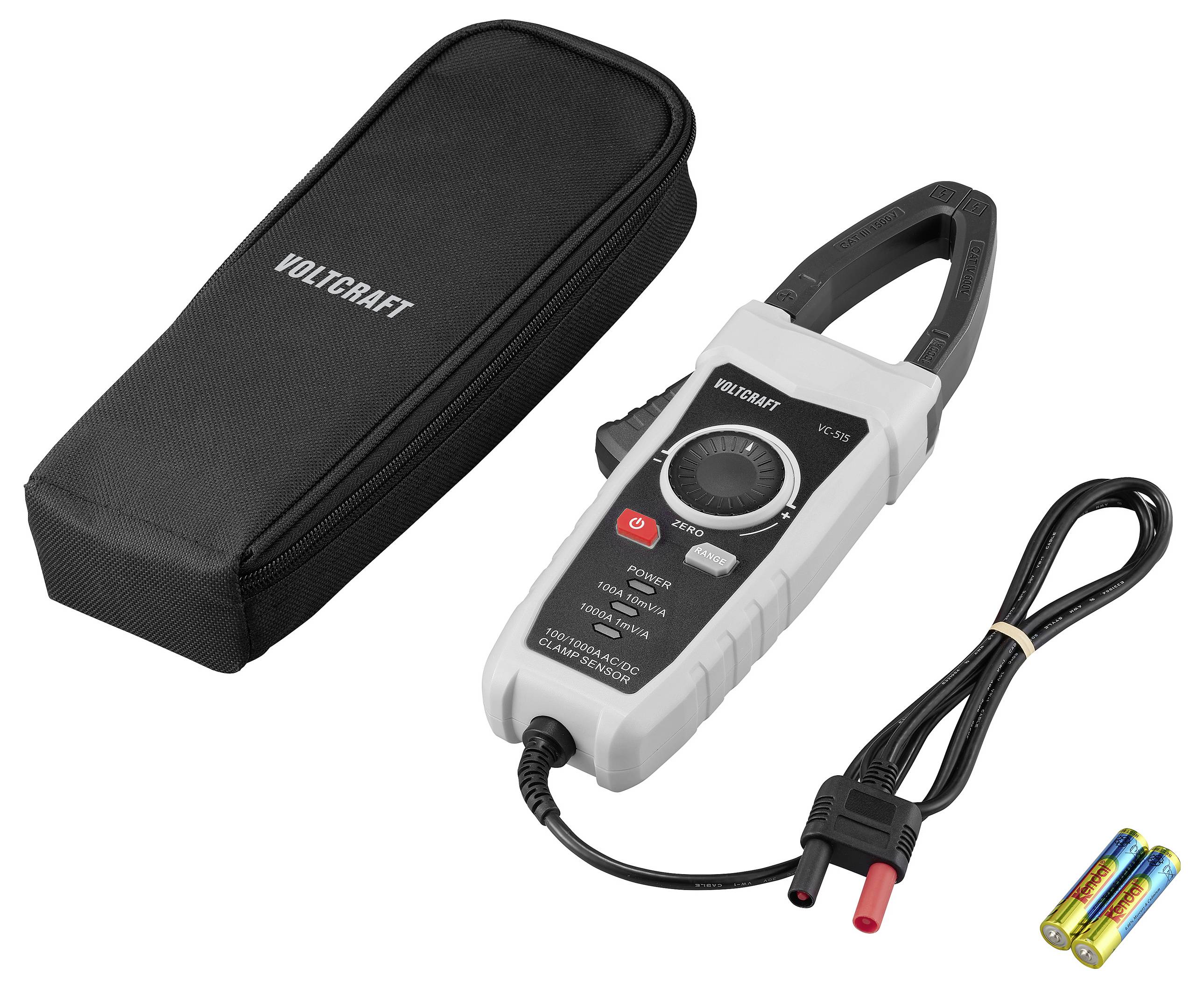

A clamp meter with a digital display and a dial for selecting measurement settings, alongside a carrying case and two AA batteries.

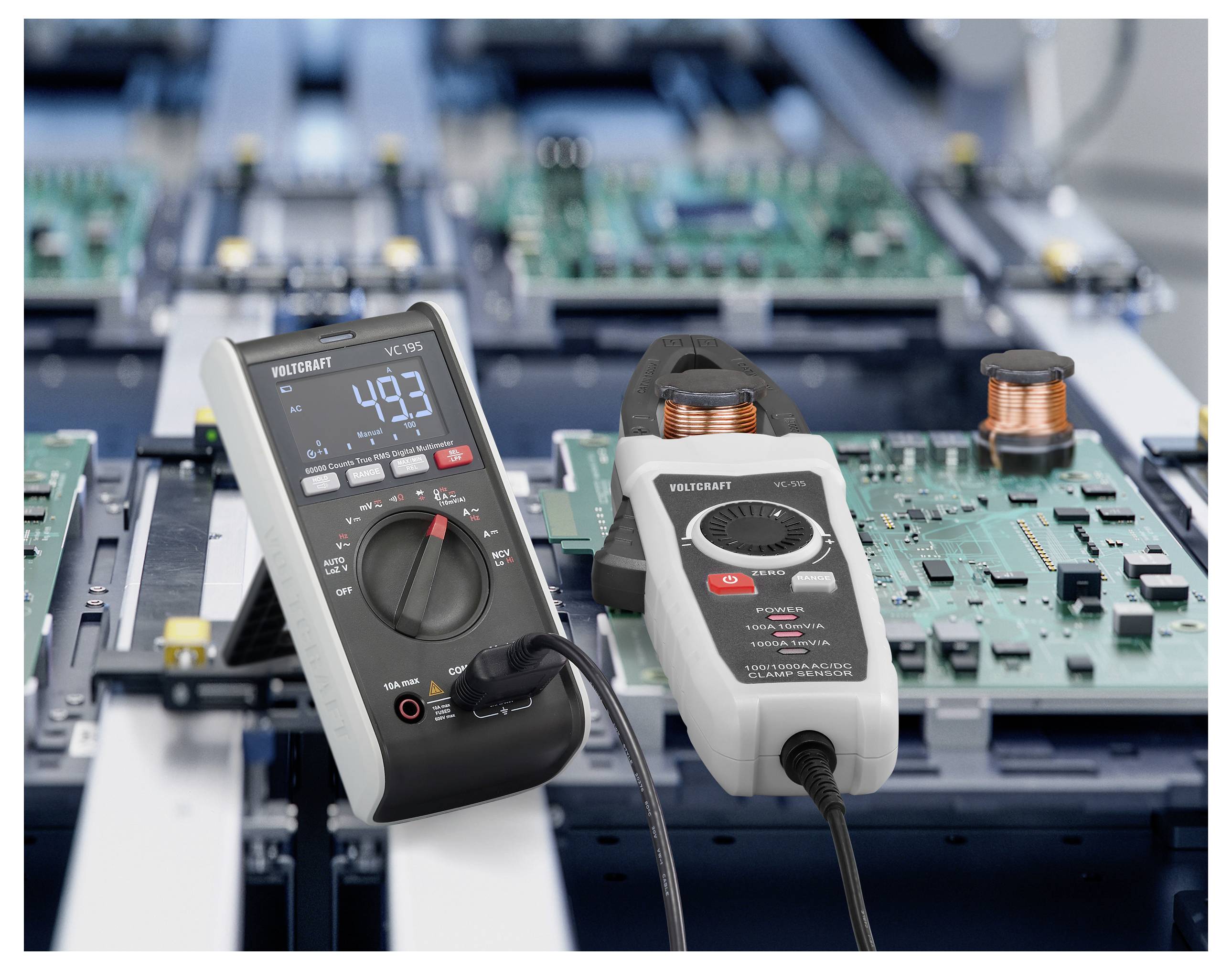

Digital multimeter and clamp meter on a circuit board assembly line, displaying measurement readings.

'A person holding a digital multimeter displaying 22.9 volts, testing electrical components in a circuit breaker panel with various colored wires.'

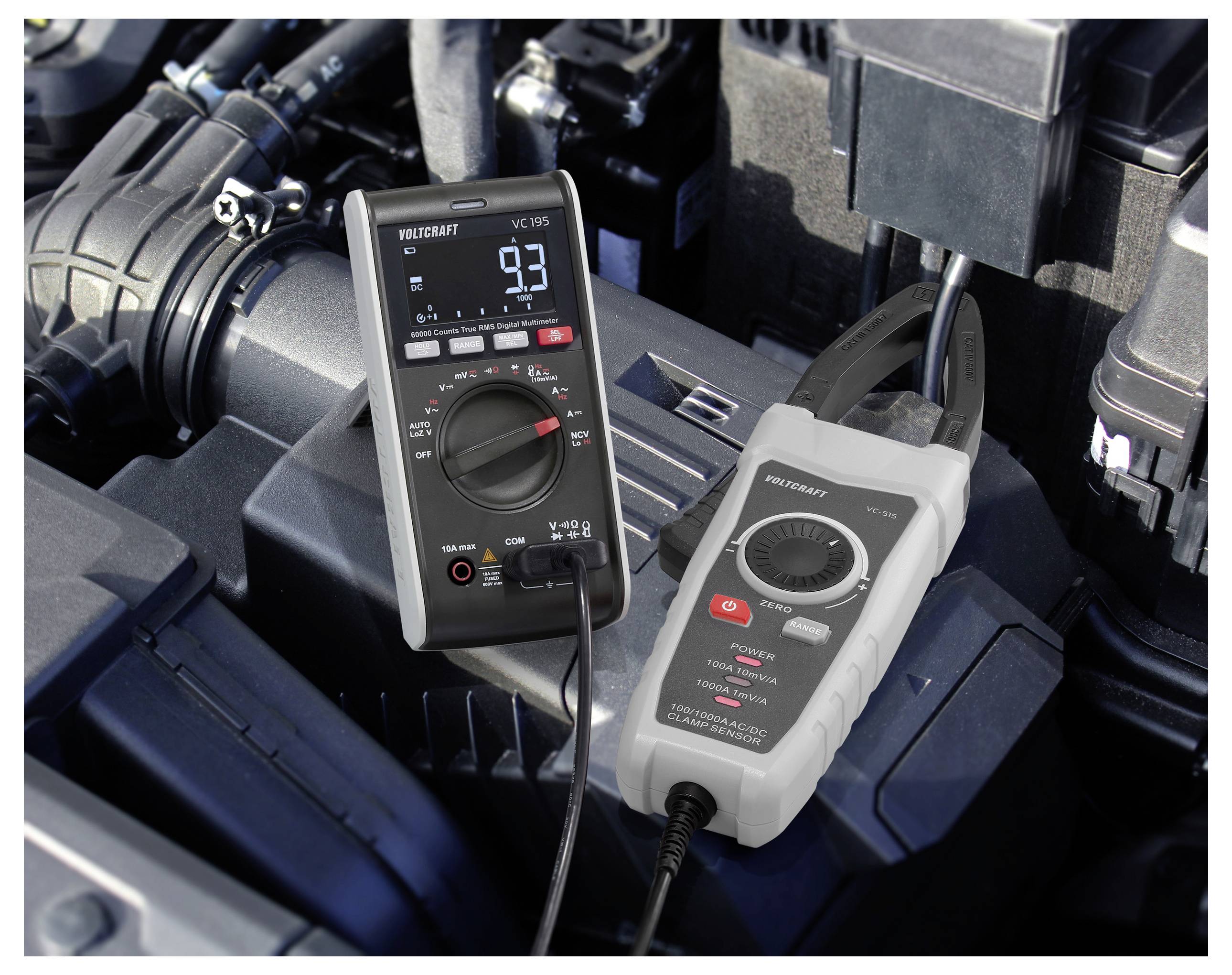

A multimeter and a clamp meter sit on a car engine, displaying readings. They are used for measuring electrical parameters in vehicles.

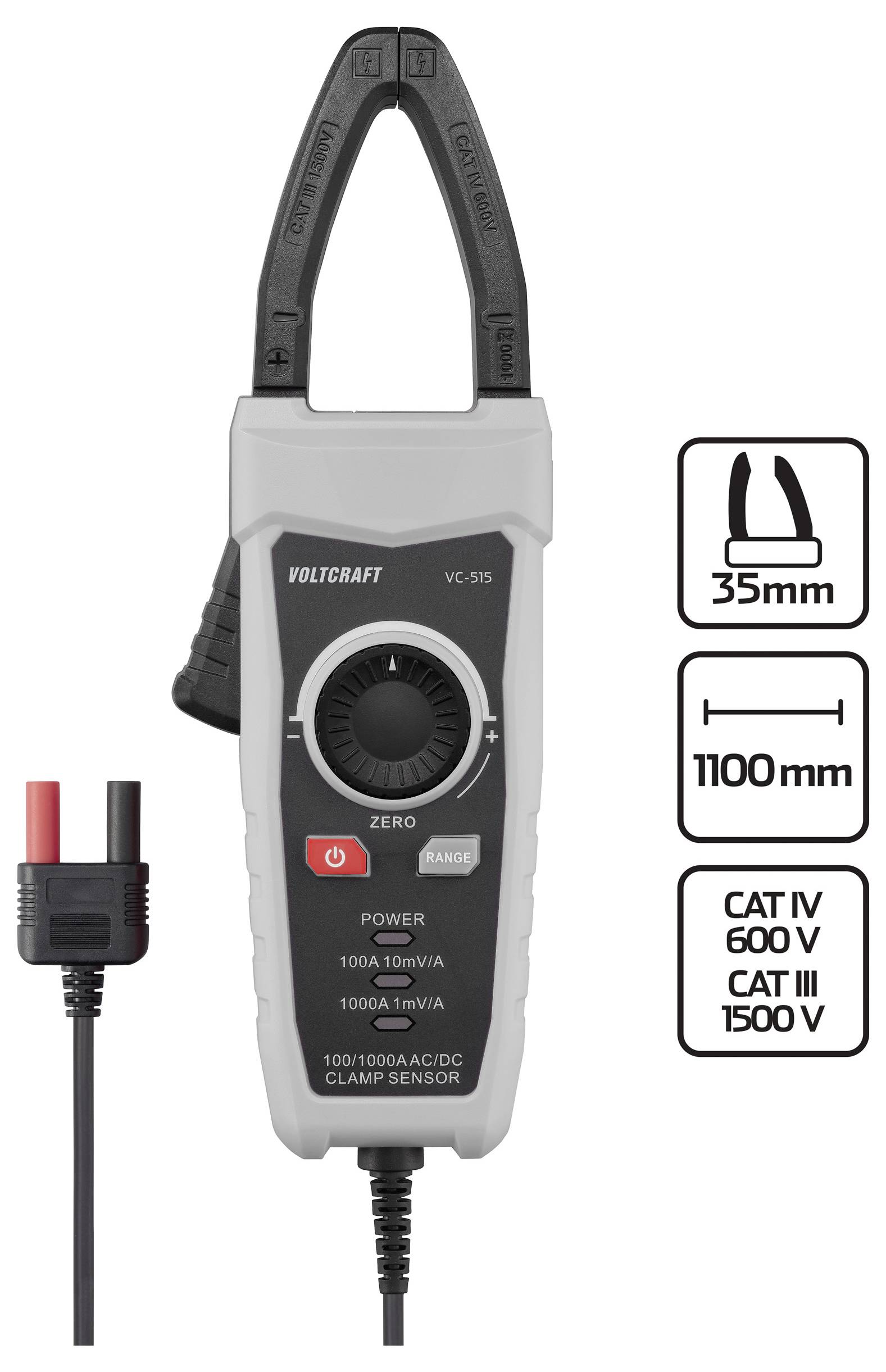

'Voltcraft VC-595' clamp meter with a 35mm jaw opening, power ratings 100A/600V and 1000A/1500V, suitable for CAT IV 600V and CAT III 1500V.

1/11

VOLTCRAFT

Our service for you

Datasheet (PDF)

Fast track dispatch on Tue 27 Oct

194 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 95.99 / piece)

€ 95.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

VOLTCRAFT VC-515 Clamp Meter Adapter AC/DC 1000 A CAT III 1500 V

Current measurement (AC/DC): up to 1000 A
Frequency response (ACA): 45 - 400 Hz
Opening range of current clamps 35 mm
CAT IV 600 V / CAT III 1500 V
Indicator for different current ranges
Suitable for Voltcraft VC195 and VC 480
Measurement diameter (max.): 35 mm conductor / 65 x 8 mm copper busbar

Technical specifications

Opening range of current clamps: 35 mm

Product type: Clamp meter adapter

Type B: 4 mm connector

: Manufacturer's standards (no certificate)

A AC reading range (min.): 1 A

Amperage reading range AC (max.): 1000 A

Amperage reading range DC (min.): 1 A

A DC reading range (max.): 1000 A

Dim: (L x W x H) 73.5 x 46.5 x 255.7 mm

Current reading: AC/DC

Reading category: CAT IV 600 V
CAT III 1500 V

Weight: 425 g

Output signal (max.): 1 V

Max. frequency: 400 Hz

Width: 46.5 mm

Height: 255.7 mm

Length: 73.5 mm

Plastic free packaging: Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3521175 VOLTCRAFT VC-515 Clamp meter adapter A/AC reading range: 1 - 1000 A A/DC reading range: 1 - 1000 A

User & Safety Instructions

User & Safety Instructions 3521175 VOLTCRAFT VC-515 Clamp meter adapter A/AC reading range: 1 - 1000 A A/DC reading range: 1 - 1000 A

Warranty Terms

Warranty Terms 3521175 VOLTCRAFT VC-515 Clamp meter adapter A/AC reading range: 1 - 1000 A A/DC reading range: 1 - 1000 A

Description

The VOLTCRAFT VC-515 clip-on ammeter adapter is a highly reliable and safe AC/DC current clamp, which can be used as an extension of a multimeter for current measurement. It measures the current through the sensor and converts the current value into a voltage value. The converted voltage is then transmitted to the multimeter via a cable that displays the corresponding voltage value. It can measure AC/DC currents up to 1000 A.

This text is machine translated.

Features

Operating altitude: 2000 m
Transmission cable length: 1.1 m
Output ratios 1 mv/A and 10 mV/A for fast readings
Compatible with Voltcraft® VC 480, VC195

Scope of delivery

Clamp adapter
2x 1.5 AAA batteries
Carrying bag
User manual

Description

The VOLTCRAFT VC-515 clip-on ammeter adapter is a highly reliable and safe AC/DC current clamp, which can be used as an extension of a multimeter for current measurement. It measures the current through the sensor and converts the current value into a voltage value. The converted voltage is then transmitted to the multimeter via a cable that displays the corresponding voltage value. It can measure AC/DC currents up to 1000 A.

This text is machine translated.

Features

Operating altitude: 2000 m
Transmission cable length: 1.1 m
Output ratios 1 mv/A and 10 mV/A for fast readings
Compatible with Voltcraft® VC 480, VC195

Scope of delivery

Clamp adapter
2x 1.5 AAA batteries
Carrying bag
User manual
