Gossen Metrawatt WZ1001 Clamp meter adapter A/AC reading range: 1 - 1000 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 50.41 / piece)
€ 50.41
plus VAT.
14-day return policy included
Highlights & Details
AC current clamp meter WZ1001
- N/A
- Opening range of current clamps 43 mm
Technical specifications
- Cable length: 1.5 m
- Output signal 1 mA AC / 1 A AC
- Transmission ratio 1000:1.
- Opening range of current clamps
43 mm
- Product type
Clamp meter adapter
- Type B
4 mm plug
Manufacturer's standards (no certificate)
- A AC reading range (min.)
1 A
- Amperage reading range AC (max.)
1000 A
- Dim
(L x W x H) 39 x 92 x 220 mm
- Current reading
AC
- Reading category
CAT III 600 V
- Weight
650 g
- Output signal (max.)
1 A
- Max. frequency
1 kHz
- Width
92 mm
- Height
220 mm
- Length
39 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1909988 Gossen Metrawatt WZ1001 Clamp meter adapter A/AC reading range: 1 - 1000 A
User & Safety Instructions
User & Safety Instructions 1909988 Gossen Metrawatt WZ1001 Clamp meter adapter A/AC reading range: 1 - 1000 A
Description
The AC current clamp meter enables the uninterrupted measurement of alternating currents by enclosing the current conductor or the bus bar. The AC current clamp meter is particularly suitable for measuring with the multimeter METRALINE DM61.
This text is machine translated.
This text is machine translated.
Features
- Compact and handy
- Permanently connected safety cables
Scope of delivery

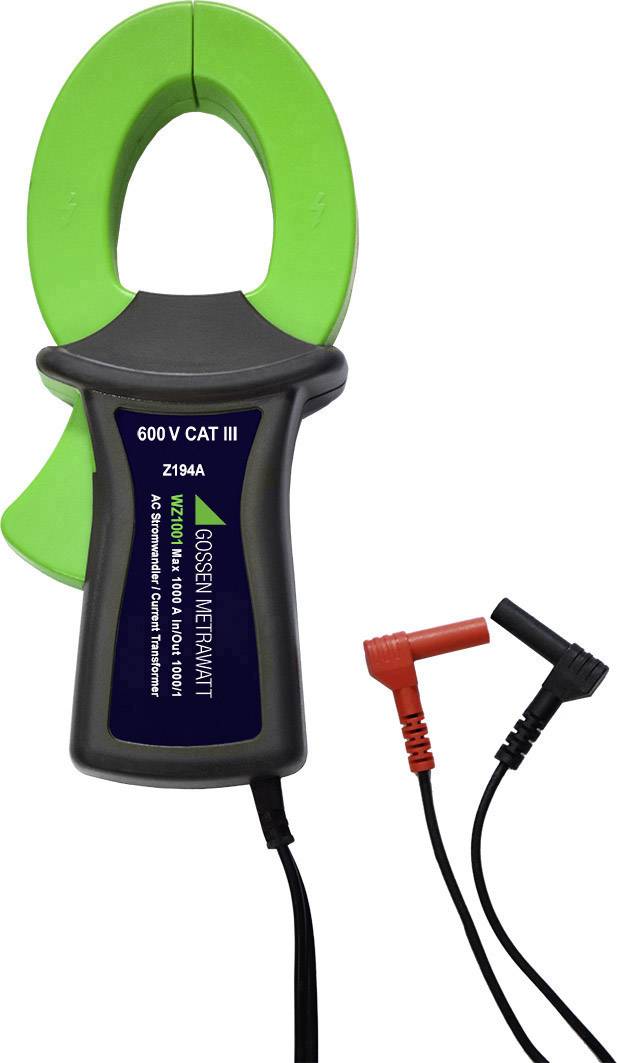

- Clamp-on ammeter with connection cable and 4 mm safety plugs
- User manual
