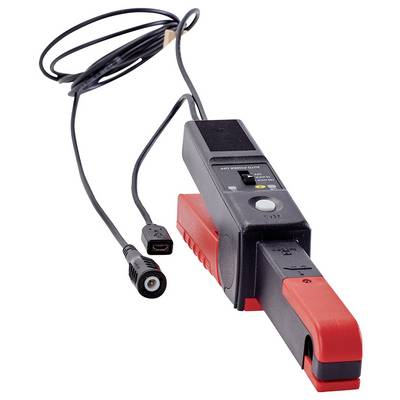

A measuring device with clips and cables. It is designed for analysing electrical currents.

A digital clamp multimeter with a red clamp and black leads shows measurement unit and reset button on the front panel.

A black and red electrical measuring instrument with a detachable probe and cable. The device displays measurement readings on a small display.

Red and black electricity measuring device for electrical applications with long cable and plug.

1/6

Datasheet (PDF)

Fast track dispatch on Wed, 9 Sep

11 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 466.39 / piece)

€ 466.39

plus VAT.

Report legal concerns

Highlights & Details

PLIERS E27 CVH OSCILLOSCOPE

N/A
Opening range of current clamps 11.8 mm

Technical specifications

Opening range of current clamps: 11.8 mm

Dim: (L x W x H) 231 x 67 x 36 mm

Weight: 0.33 kg

Type B: BNC plug

Current reading: AC
DC

Height: 36 mm

Length: 231 mm

Width: 67 mm

Max. frequency: 100 kHz

: Manufacturer's standards (no certificate)

Reading category: CAT III 600 V
CAT IV 300 V

Amperage reading range AC (max.): 100 A

A AC reading range (min.): 100 mA

A DC reading range (max.): 100 A

Amperage reading range DC (min.): 100 mA

Output signal (max.): 1000 mV

UKCA: not relevant

Product type: Clamp meter adapter

Documents & Downloads

Datasheet

Datasheet 2446302 Chauvin Arnoux E27 Clamp meter adapter A/AC reading range: 100 mA - 100 A A/DC reading range: 100 mA - 100 A

User & Safety Instructions

User & Safety Instructions 2446302 Chauvin Arnoux E27 Clamp meter adapter A/AC reading range: 100 mA - 100 A A/DC reading range: 100 mA - 100 A

Description

The E27 clamp-on ammeter is an insulated current transformer with Hall-Effect technology to display the shape and amplitude of DC and AC currents on oscilloscopes.
It has two measurement ranges to measure current strengths up to 100 A with a bandwidth up to 100 kHz.
The pliers E27 is powered independently of the mains by batteries or with a 5V standard power supply unit via a µUSB-interface, in addition it has an automatic DC zero point correction and an automatic cut-off when not in use.
With its 2 m long connection cable and the insulated BNC connector plug, it can be connected to any oscilloscope with standard connection technology. The clamp-on ammeter can be used with electrical installations of category 600V CAT III and 300V CAT IV.
