Buy Metrix DOX 2025B Digital 20 MHz 2-channel 500 MSa/s 32 KP 8 Bit Digital storage (DSO) 1 pc(s)

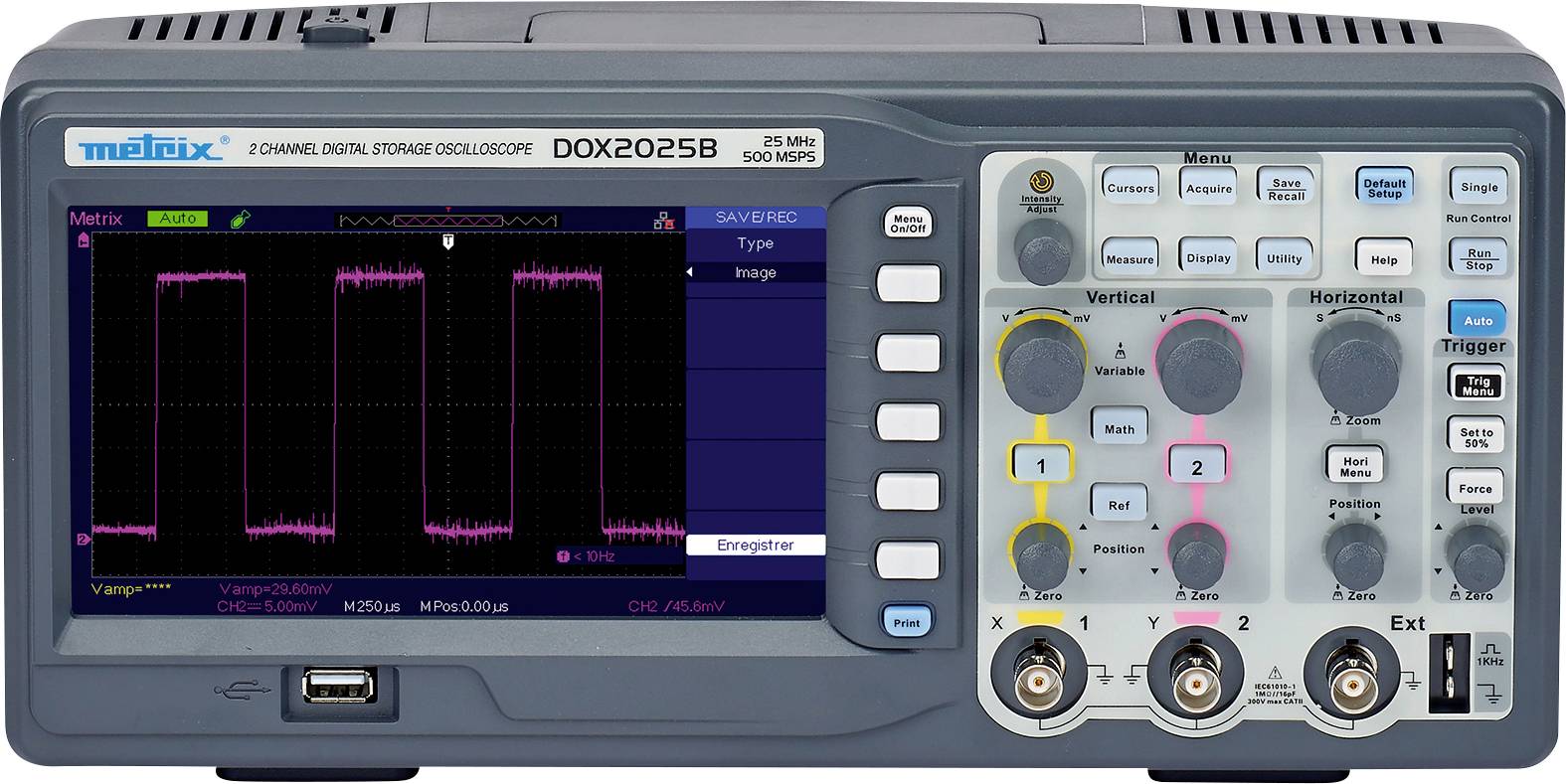

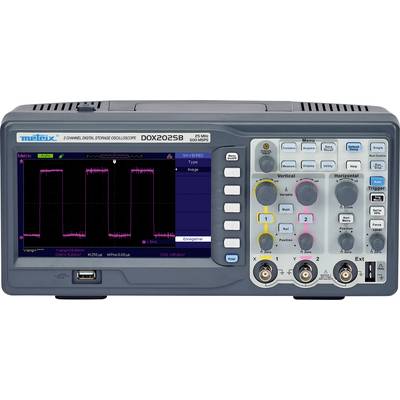

A digital oscilloscope with various settings and a screen displaying a waveform voltage curve.

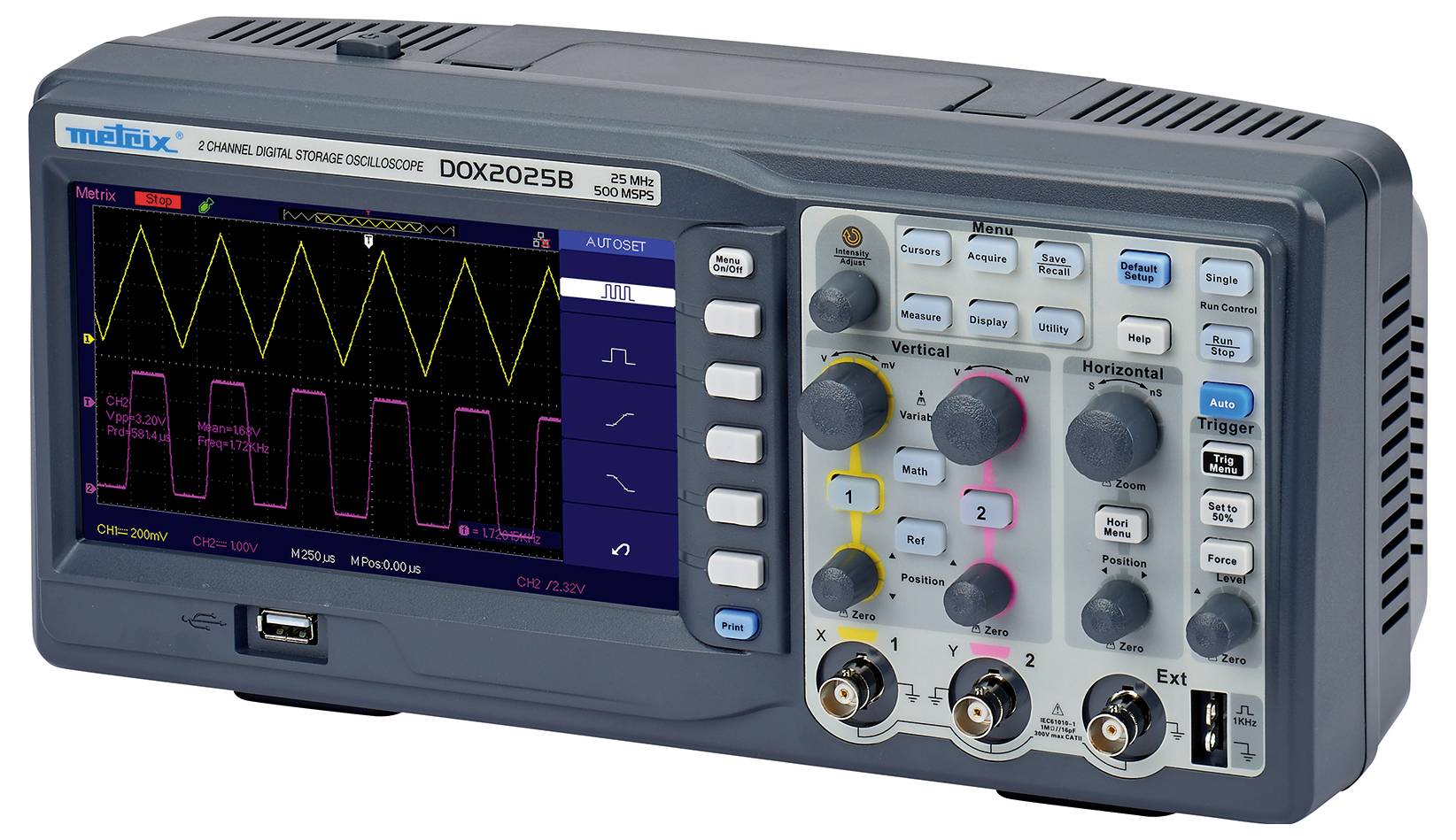

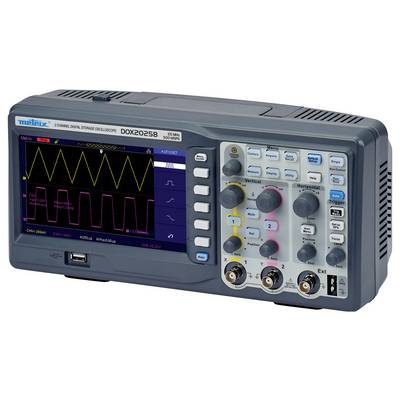

Digital oscilloscope with two channels showing yellow and red waveforms on the display. Controls for horizontal and vertical adjustment located on the right.

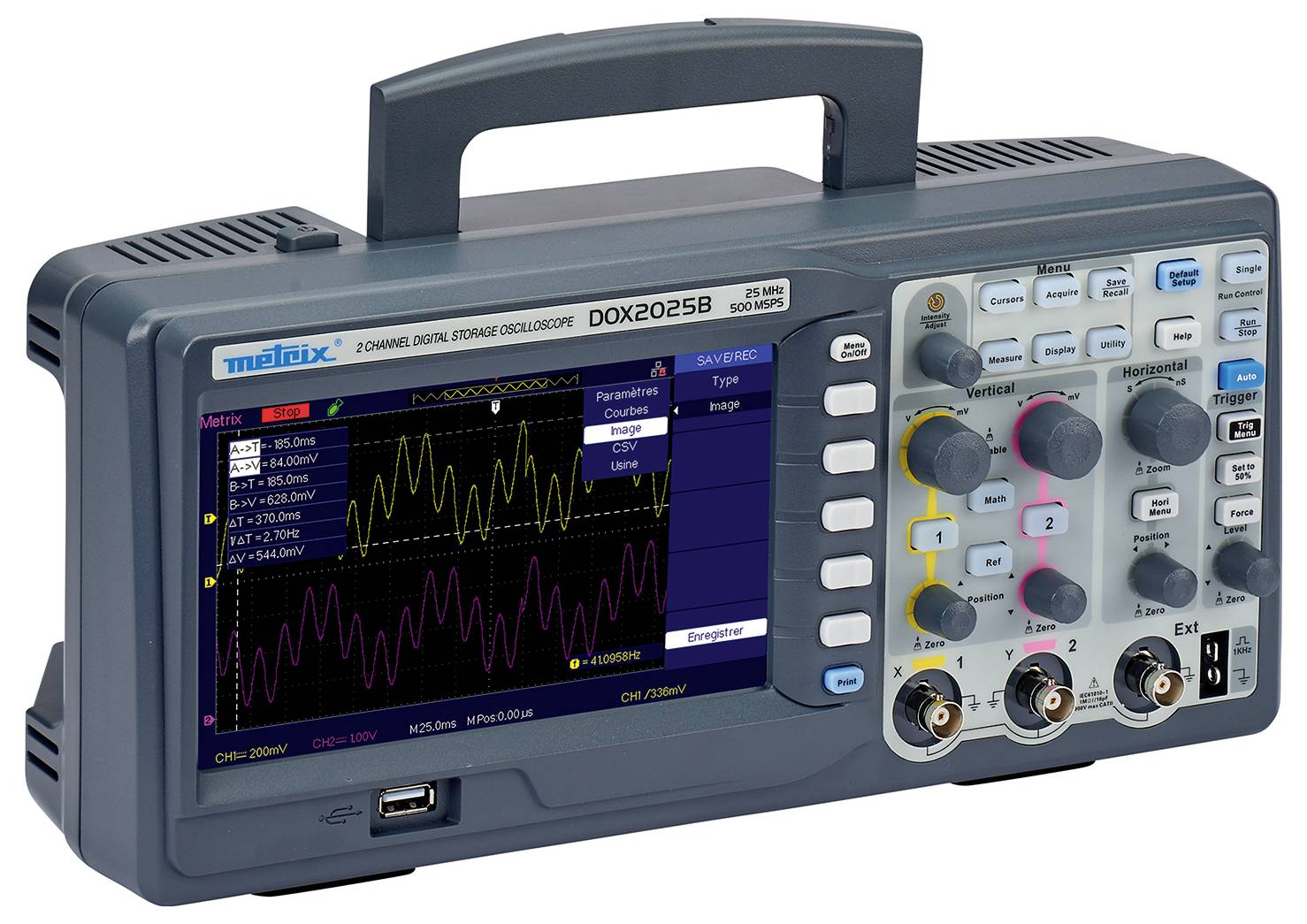

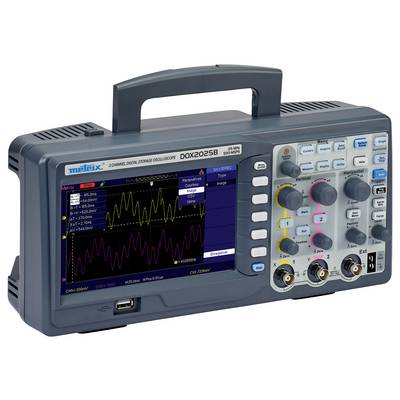

A digital storage oscilloscope with a colour display shows waveform signals and controls for signal management.

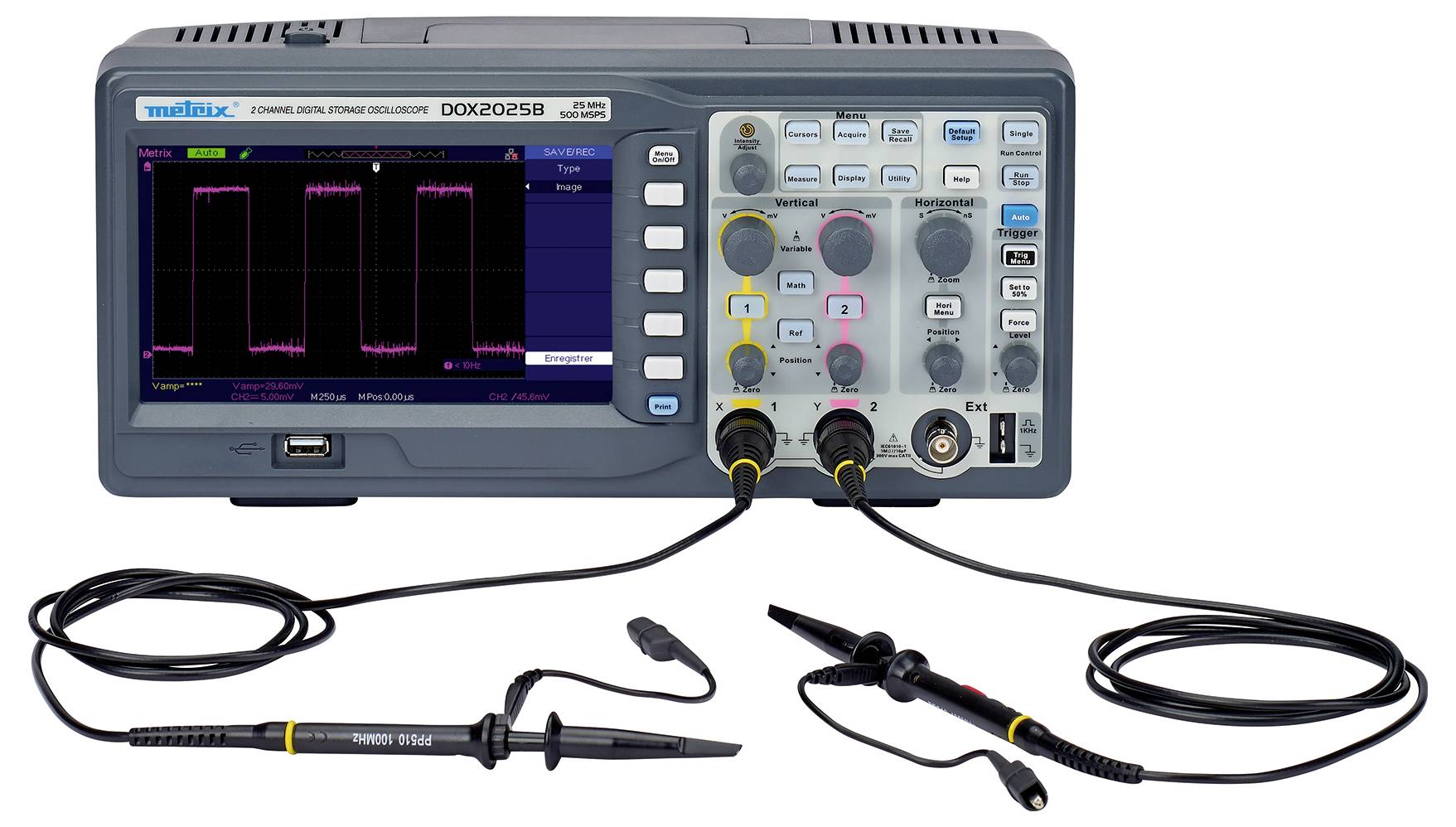

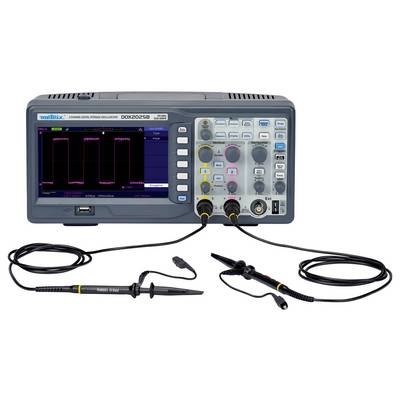

An oscilloscope with two connected probes, displaying a digital signal with rectangular pulses on the screen.

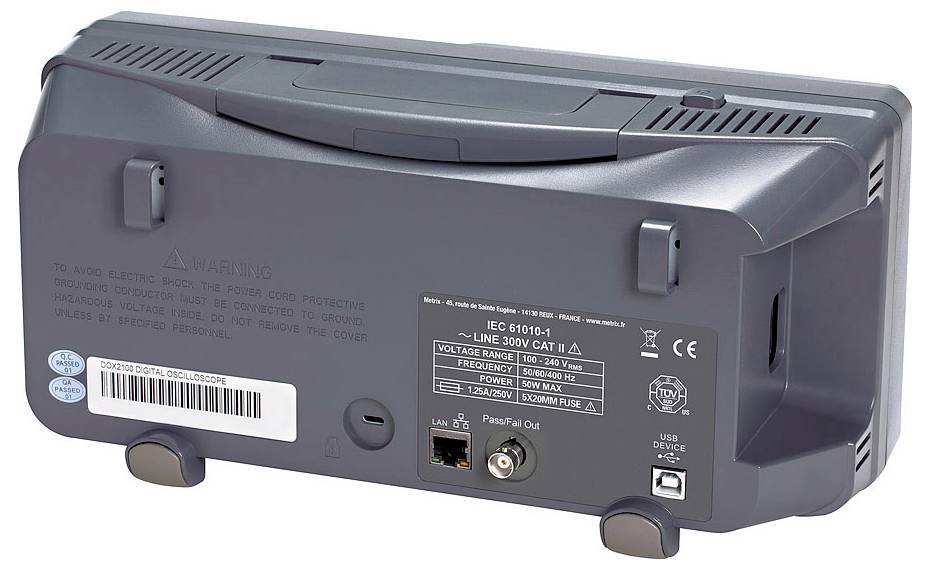

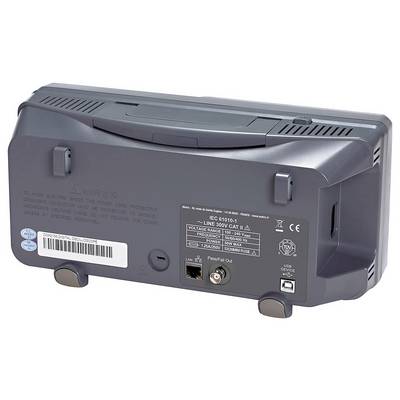

Rear view of an electronic device with multiple ports and specifications on a label. Includes LAN and 12V connections.

1/5

Datasheet (PDF)

8 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 626.05 / piece)

€

Only 8 Piece(s) available

Report legal concerns

Highlights & Details

Digital Table Oscilloscope DOX2025 B with 2 channels of Chauvin Arnoux

20 MHz
No. of analogue inputs 2

Technical specifications

Data transfer to PC: USB device and RJ45 Ethernet
MATH functions: in real time calculated curves CH 1 and CH 2 (Addition, subtraction, multiplication, division)
FFT analyzer

Product type: Digital

Bandwidth: 20 MHz

Channel sample rate: 500 MSa/s

Resolution: 8 Bit

Screen size: 7 inch

Oscilloscope features: Digital storage (DSO)

No. of analogue inputs: 2

: Manufacturer's standards (no certificate)

Reading category: CAT II 300 V

Input impedance: 1 MΩ

Dim: (L x W x H) 157 x 323 x 135 mm

Weight: 2385 g

Display: 800 x 480 p

Width: 323 mm

Height: 135 mm

Length: 157 mm

Channel memory depth: 32 KP

Type: DOX 2025B

Documents & Downloads

Datasheet

Datasheet 1666203 Metrix DOX 2025B Digital 20 MHz 2-channel 500 MSa/s 32 KP 8 Bit Digital storage (DSO) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1666203 Metrix DOX 2025B Digital 20 MHz 2-channel 500 MSa/s 32 KP 8 Bit Digital storage (DSO) 1 pc(s)

Description

The Dox2025B is a very easy to use 2-channel oscilloscopes in a space-saving housing low depth, which has been developed especially for laboratory work places. With the DOX2025 B-table oscilloscope, the all signals represent and analyze.

This text is machine translated.

Features

Built-in 9-inch folding handle allows easy transport
Universal rotary switch
Traditional control elements of the front plate: rotary knobs and backlit buttons (CH1, CH2; math and REF + MENU)
Very bright, large 7" TFT color screen
Data transfer via the USB port
Feet give stability
housing.
2 channels + 1 channel for external triggering and 1 signal for probe calibration
