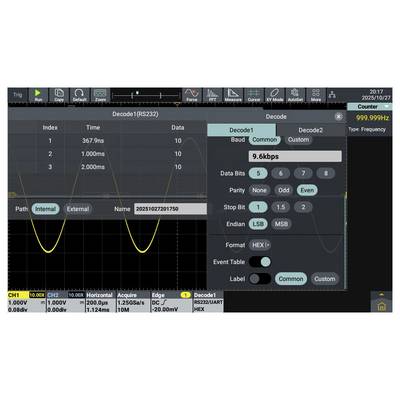

An oscilloscope screen displays a decoded RS232 signal with a chart showing two waveforms labeled Internal and External. Data on the right indicates a 9.6kbps baud rate and other configurations.

1/22

VOLTCRAFT

Our service for you

Datasheet (PDF)

English

Fast track dispatch on Wed, 16 Sep

19 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 810.92 / piece)

€ 810.92

plus VAT.

Report legal concerns

Highlights & Details

VOLTCRAFT ADO-1002 Oscilloscope 100 MHz, 2.5GSa/s, 250 Mtps, 12bit

100 MHz bandwidth
25.65 cm (10.1 inch) touchscreen
2 channels + 1 ext channel
Max. 2.5 GSa/s sample rate
12-bit vertical resolution
250M record length
500,000 wfms/s refresh rate
Low background noise (500 µV/div)
Decoding type: RS232/UART, I2C, SPI, LIN, CAN
Suitable for outdoor use

Technical specifications

- 25.65cm (10.1 inch) touch screen
- 12 bit ADC
- 2 channel + 1 ext channel, 100MHz bandwidth, max 2.5GSa/s sample rate
- 250M record length
- 500,000 wfms/s refresh rate
- low background noise 500uV/div
- support I2C, RS232/UART, SPI, CAN, LIN trigger and decoding function
- Support type-C power, floating measurement, suitable for outdoor use

Product type: Digital

Bandwidth: 100 MHz

Channel sample rate: 2.5 GS/s

Displays: LCD touch screen, 1024 x 600 pixels

Resolution: 12 Bit

Screen size: 25.65 cm

Oscilloscope features: Digital storage (DSO)

Time base: 500 ps/div - 1000s/div, step by 1-2-5

No. of analogue inputs: 2

: Manufacturer's standards (no certificate)

Reading category: CAT II 300 V

Vertical deflection: ±2 V (500µV/div – 50 mV/div)
±20 V (100 mV/div – 500 mV/div)
±200 V (1 V/div – 10 V/div)

Input impedance: 1 MΩ ± 2%

Input coupling: DC, AC, Ground

Power supply (details): 15 V 3 A Type-C

Dim: (L x W x H) 325 x 111.5 x 209 mm

Weight: 3.2 kg

Display: 1024 x 600 p

Width: 111.5 mm

Height: 209 mm

Length: 325 mm

Interfaces: USB-C
USB device
USB host
HDMI
LAN

Channel memory depth: 250 MP

Type: ADO-1002

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

English

Datasheet 3451430 VOLTCRAFT ADO-1002 Digital 100 MHz 2.5 GS/s 250 MP 12 Bit Digital storage (DSO) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3451430 VOLTCRAFT ADO-1002 Digital 100 MHz 2.5 GS/s 250 MP 12 Bit Digital storage (DSO) 1 pc(s)

User & Safety Instructions 3451430 VOLTCRAFT ADO-1002 Digital 100 MHz 2.5 GS/s 250 MP 12 Bit Digital storage (DSO) 1 pc(s)

User & Safety Instructions 3451430 VOLTCRAFT ADO-1002 Digital 100 MHz 2.5 GS/s 250 MP 12 Bit Digital storage (DSO) 1 pc(s)

User & Safety Instructions 3451430 VOLTCRAFT ADO-1002 Digital 100 MHz 2.5 GS/s 250 MP 12 Bit Digital storage (DSO) 1 pc(s)

Warranty Terms

Warranty Terms 3451430 VOLTCRAFT ADO-1002 Digital 100 MHz 2.5 GS/s 250 MP 12 Bit Digital storage (DSO) 1 pc(s)

Description

Features

Communication interface: HDMI, USB, Trig Out (P/F), LAN
Display resolution: 1024 x 600 pixels
Acquire mode: Sample, Peak, High Res, Average, Segmentation
Trigger source: CH1, CH2, EXT TRIG, AC Lines
Trigger type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic,
RS232/UART, I2C, SPI, CAN, LIN trigger
Vertical sensitivity: 500 µV/div-10 V/div

Scope of delivery

Oscilloscope
Power cord
USB-A to USB-B cable
2x Probes + adjustment set
Voltcraft Printed safety hintsheet
Voltcraft quick guide
