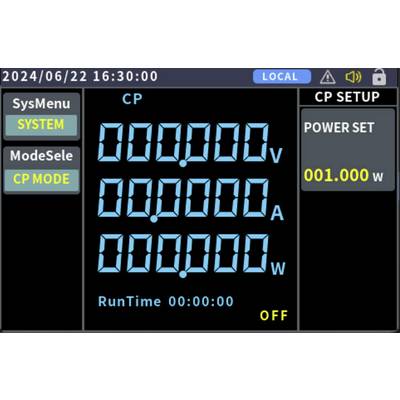

'CP MODE' screen shows date '2024/06/22', time '16:30:00'. Menu options on the left. Displays for voltage (V), current (A), power (W), all at zero. On the right 'CP SETUP', 'POWER SET' set to '001.000 W'.

Measurement screen of an instrument displaying voltage, current, and power with zero values, with running time at 00:00:00. Mode: CC Dynamic.

Image of a digital display with blue digits and multiple data fields: voltage, current, and power. Operating time shows 0. At the top: Date 2024/06/22 and time 16:30:00.

'PARAMETER SETUP' screen showing voltage and current settings including OVP at 165.000 V, OCP at 44.000 A, and OPP at 440.000 W.

1/15

Our service for you

Datasheet (PDF)

Fast track dispatch on Tue, 22 Sep

15 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 592.44 / piece)

€ 592.44

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

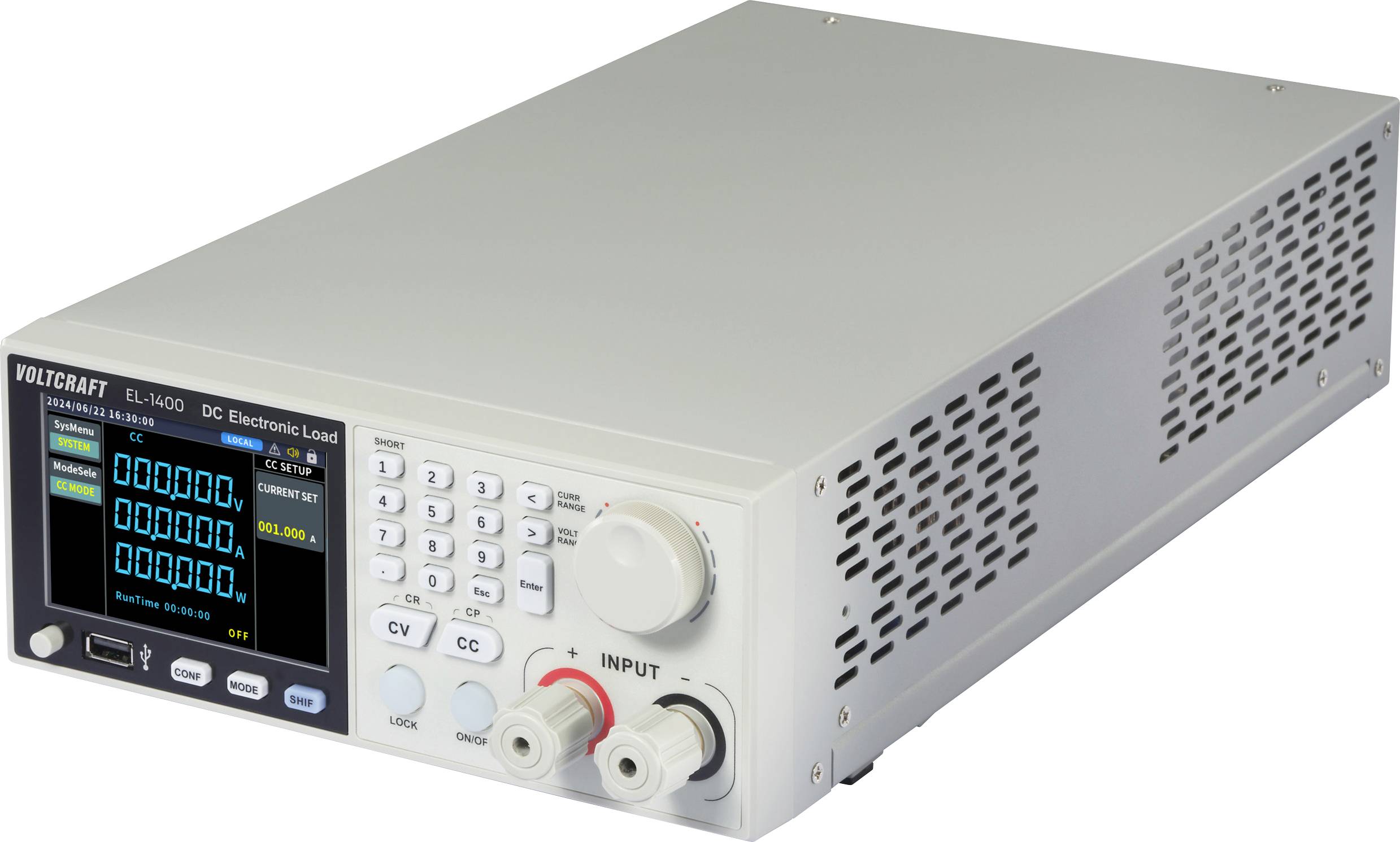

VOLTCRAFT EL-1400 DC Electronic load

/
USB , RS232

Technical specifications

Frequency range: 50, 60 Hz
Minimum operating voltage: 2 V, 40 A
Resolution: 1 mV, 1 mA

Type: EL-1400

Input voltage: 0-150 V

Product type: Electrical load

Min. input voltage: 0 V DC

Input voltage (max.): 150 V DC

Load input current (max.): 40 A

Max. non-stop power rating: 400 W

Dim: (L x W x H) 375 x 215 x 88 mm

Max. input voltage: 150 V DC

Weight: 5 kg

: Manufacturer's standards (no certificate)

Non-stop power rating: 0 W

Inputs: 0-40 A

Min. load input current: 0 A

Load connection: Screw terminals (front)

Width: 215 mm

Height: 88 mm

Length: 375 mm

Interfaces: USB
RS232

Type: DC Electronic load

Max. temperature: 40 °C

Min. temperature: 0 °C

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3364227 VOLTCRAFT EL-1400 Electrical load 150 V DC 40 A 400 W

User & Safety Instructions

User & Safety Instructions 3364227 VOLTCRAFT EL-1400 Electrical load 150 V DC 40 A 400 W

Warranty Terms

Warranty Terms 3364227 VOLTCRAFT EL-1400 Electrical load 150 V DC 40 A 400 W

Download

Download 3364227 VOLTCRAFT EL-1400 Electrical load 150 V DC 40 A 400 W

Description

Highly precise load simulation for power sources
The VOLTCRAFT EL-1400 DC is used for various applications like the testing of power supplies, batteries/batteries or chargers. It offers load control according to constant current (CC), constant voltage (CV), constant resistance (CR) and constant power (CP). Furthermore, functions such as dynamic current testing up to 10 kHz and remote compensation are integrated. 1 output is available, the load values can be set up to a maximum of 150 V, 40 A and 400 W.
Safe operation
In order to ensure safe operation, the VOLTCRAFT EL-1400 DC is repeatedly protected from overvoltages, overloads, overloads and overheating. The parallel control supports up to 10 devices and is also suitable for potentially powerful applications.
Easy analysis
All data is displayed on the easy-to-read 10 cm (3.9 inch) TFT LCD color display. Furthermore, a USB-connection as well as a RS232 standard interface for SCPI-protocols are also available.
Installation and accessories
For the stand-alone operation the VOLTCRAFT EL-1400 DC is equipped with foldable pedestal The power supply unit requires two height units half the rack width for rack installation. The unit is supplied with a power cable, a user manual and a safety data sheet.

This text is machine translated.

Features

1/2 2U standard rack size, suitable for rack-mount use
10 cm (3.9 inch) TFT colour LCD display
Four modes: constant current (CC), constant voltage (CV), constant resistance (CR), constant power (CP)
Dynamic current testing up to 10 kHz
Remote compensation
Multiple protection functions: overvoltage, overcurrent, overpower, overheat, etc.
Standard RS232 interface, supports SCPI protocol
Parallel control, supports up to 10 units for potential high power requirements.
