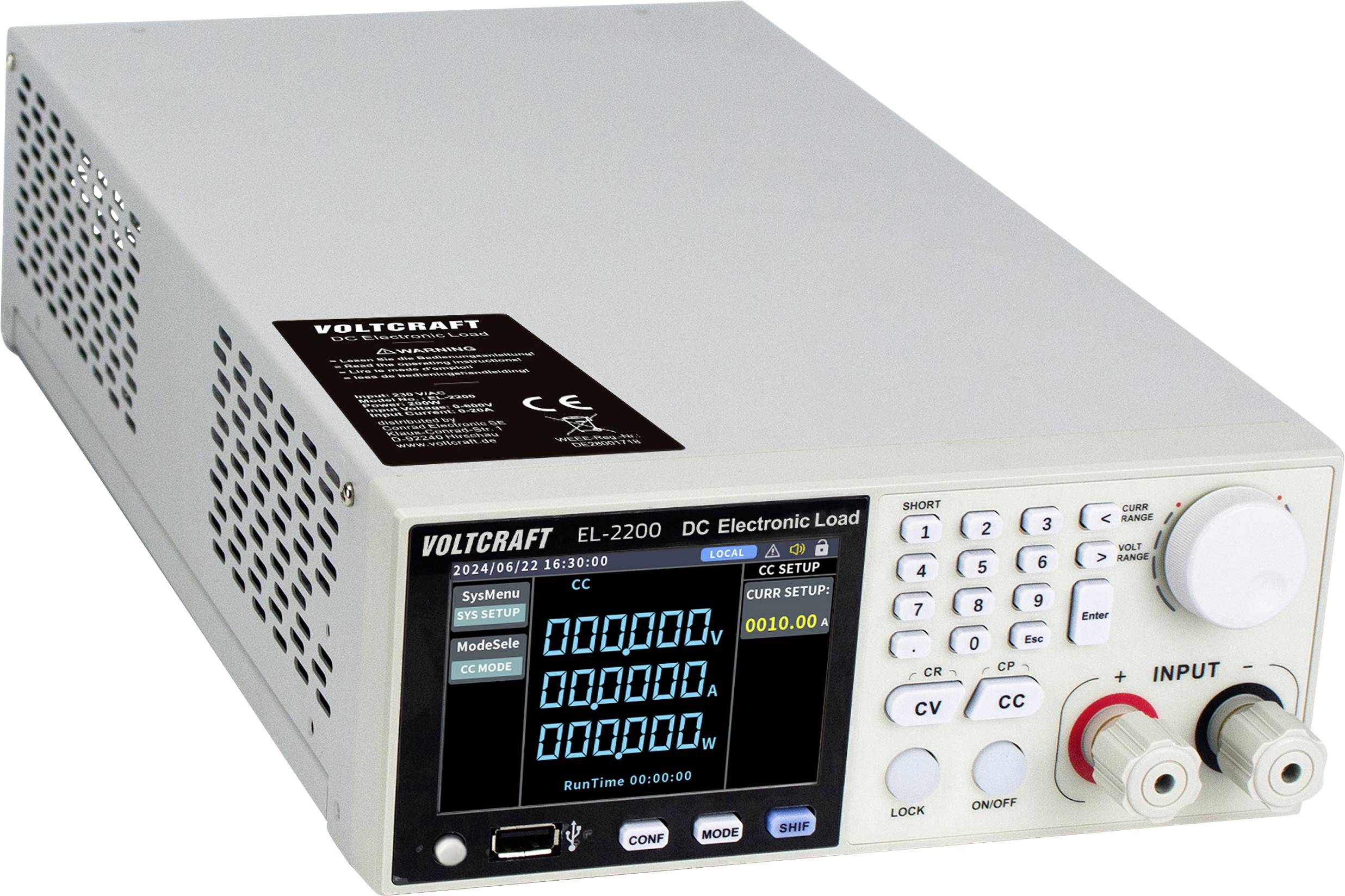

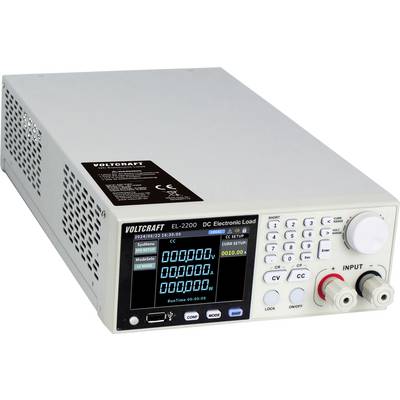

A voltmeter labeled 'Voltcraft EL-2200 DC Electronic Load' displays measurements on a screen, featuring input and control buttons.

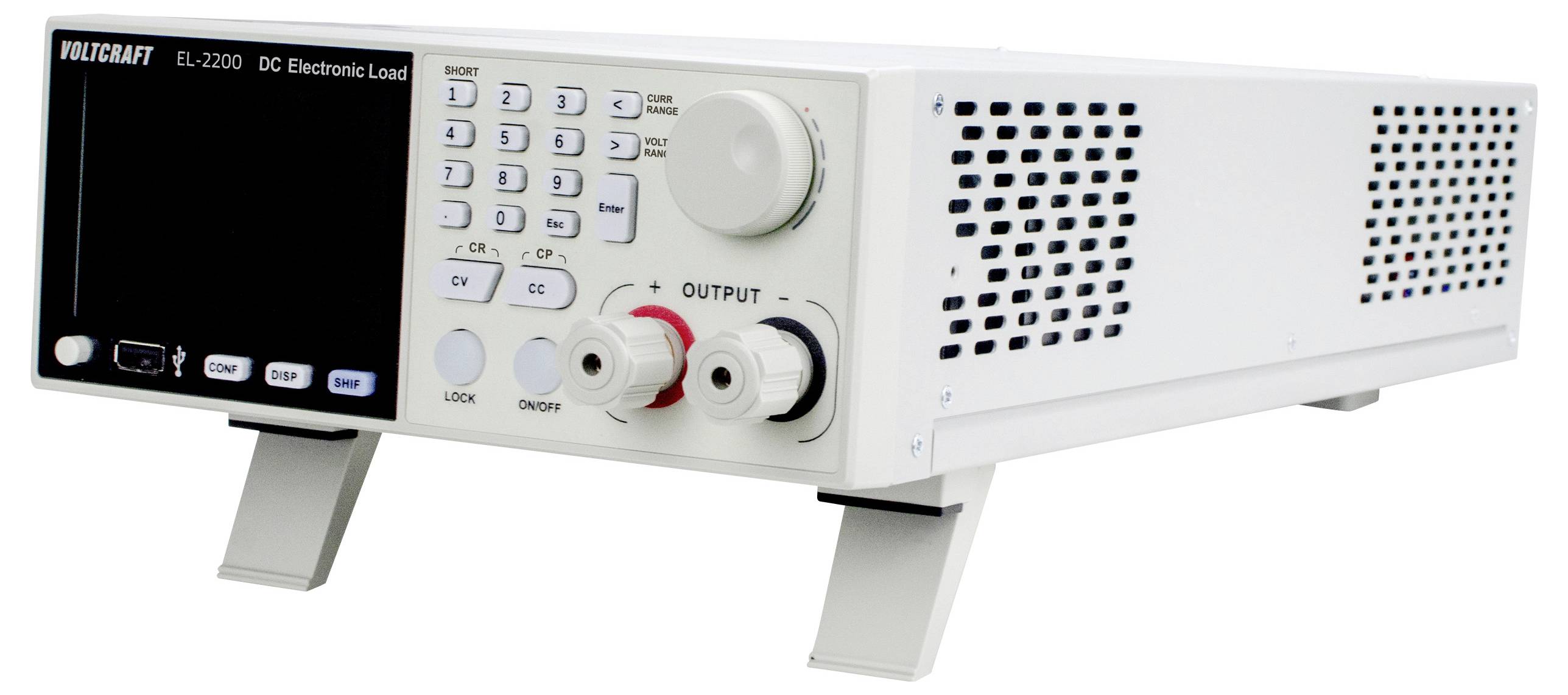

A Voltcraft DL-2200 electronic load device with control buttons and knobs is angled slightly right, featuring input/output terminals.

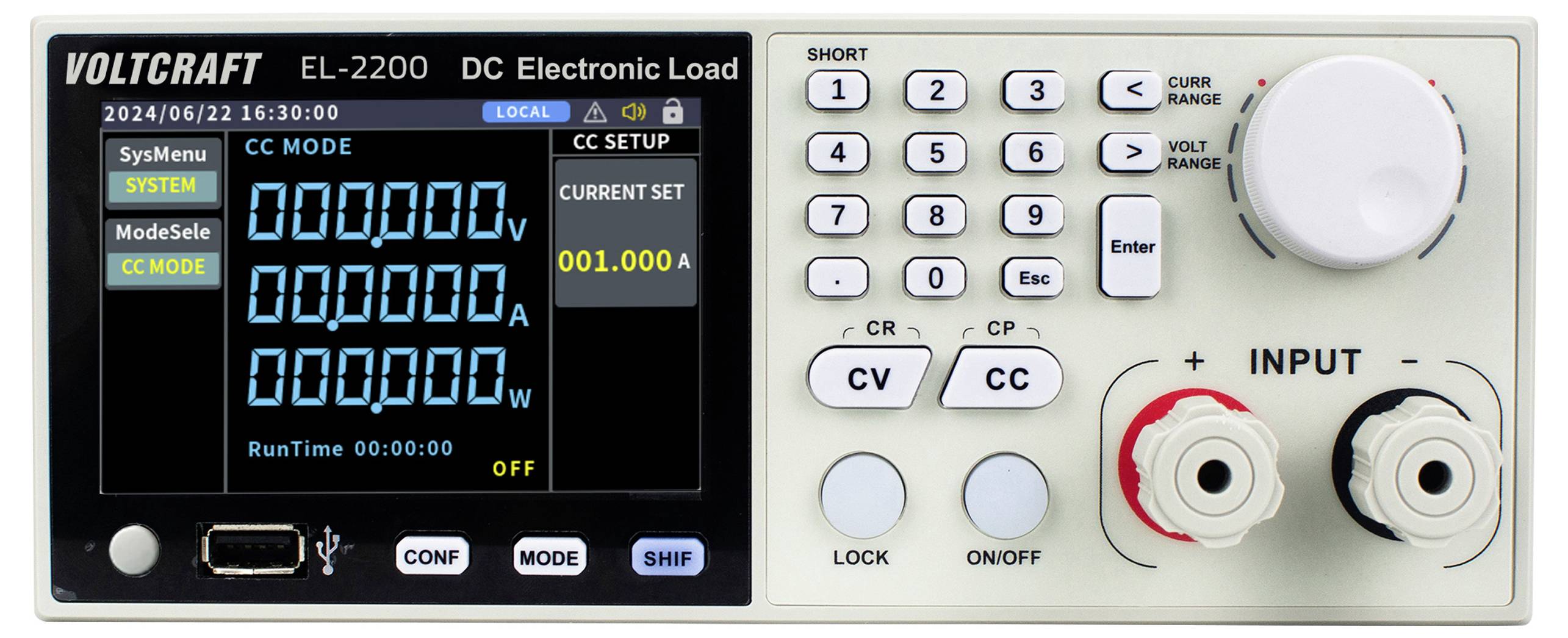

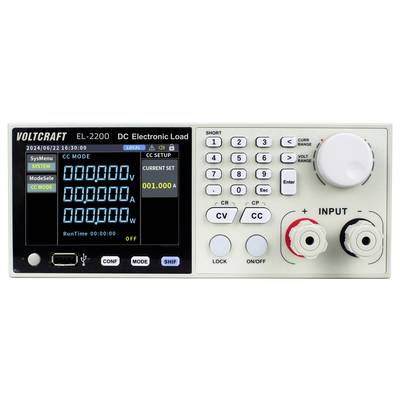

'Voltcraft EL-2200 DC Electronic Load device with a digital display, buttons for settings, and input terminals for power measurement.'

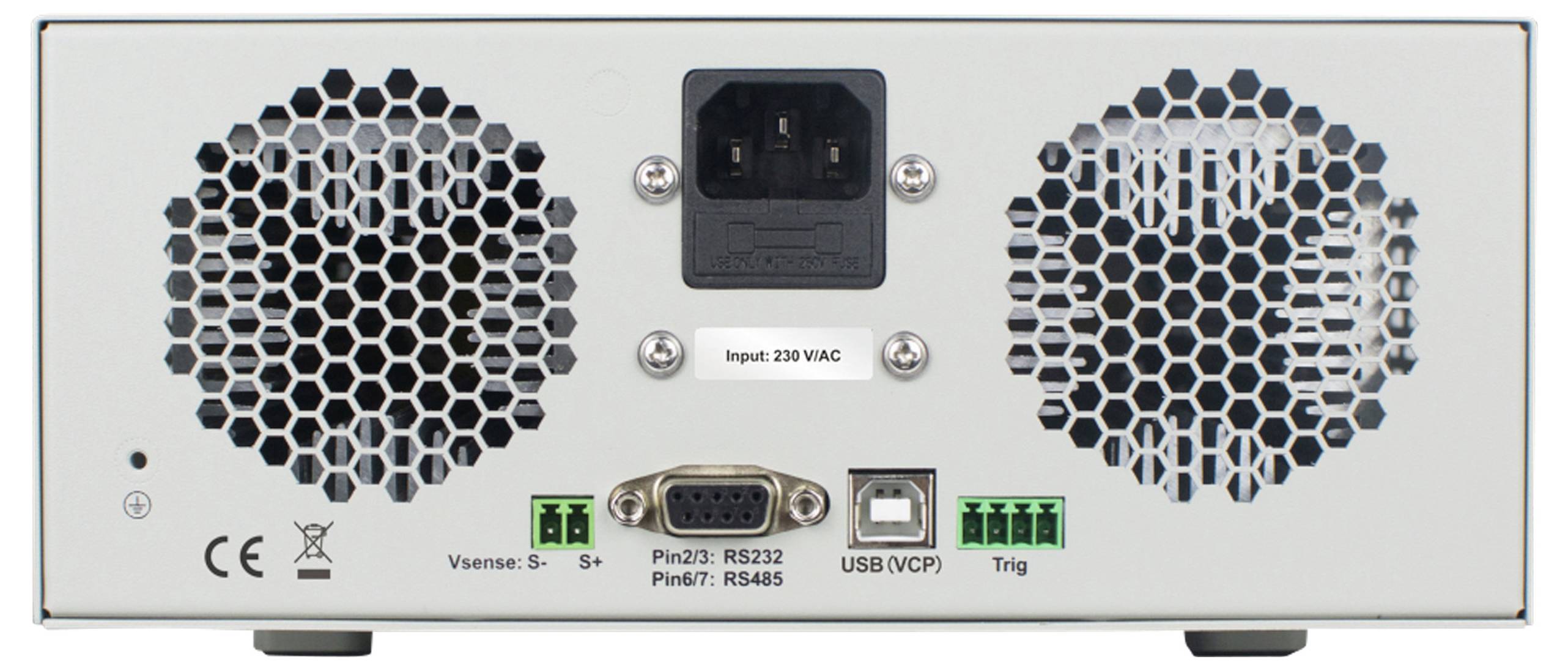

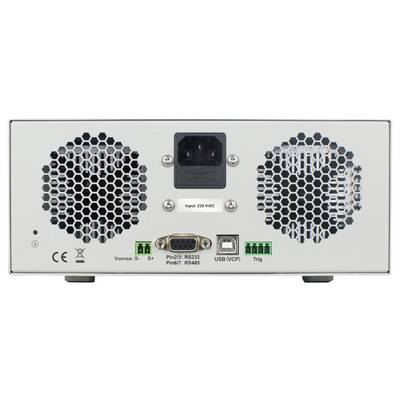

'Back view of a power supply unit with two large fans, an IEC power socket labeled 'Input: 230 VAC', RS232, RS485, USB, and trigger ports.'

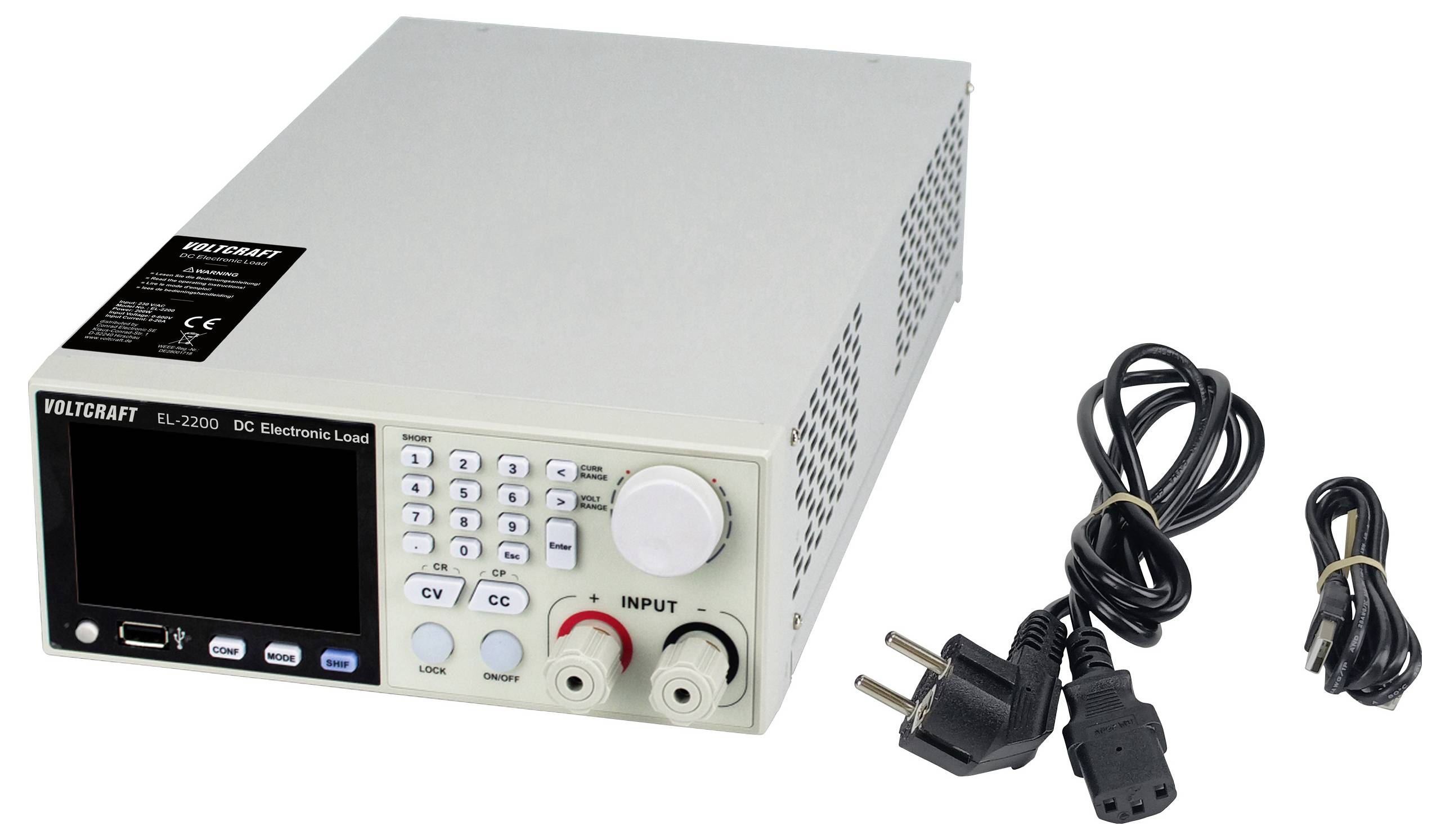

DC electronic load device with display, buttons, and input terminals, shown with power cables, used for testing and measuring electrical circuits.

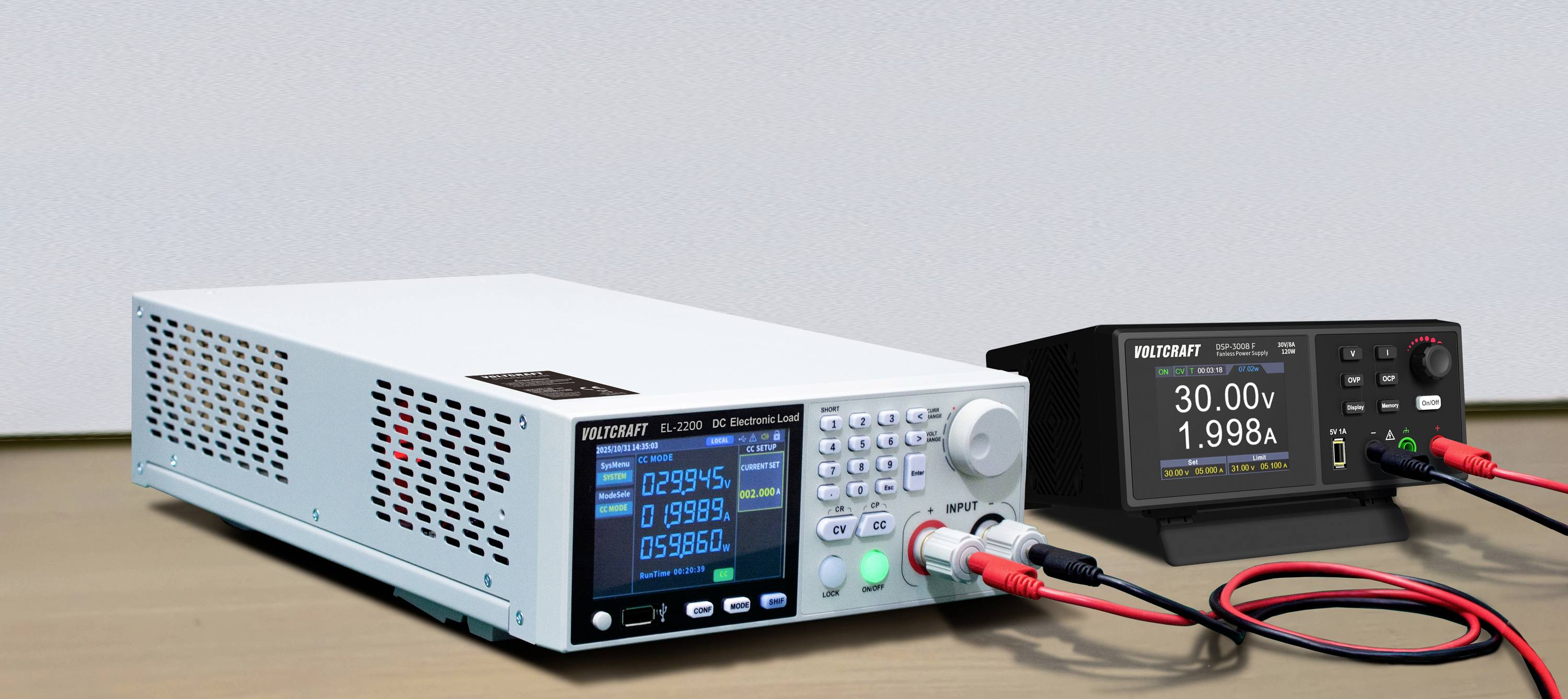

Two electronic devices on a table: a white digital power supply with a blue-lit display showing '12.00V' and '0.998A', and a second device displaying '30.00V' and '1.998A'.

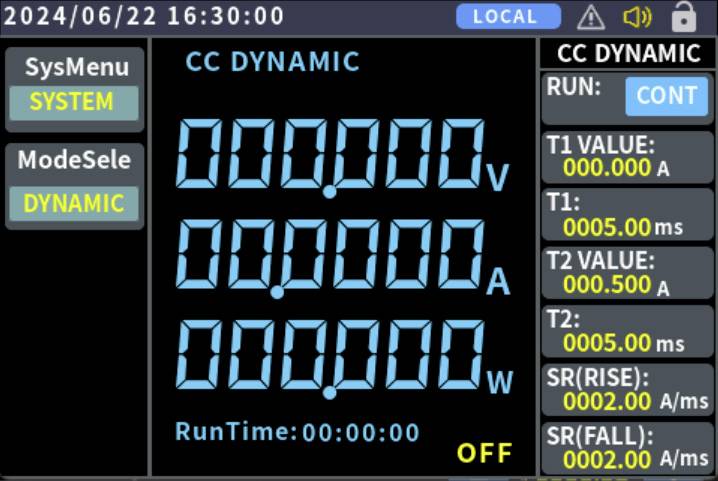

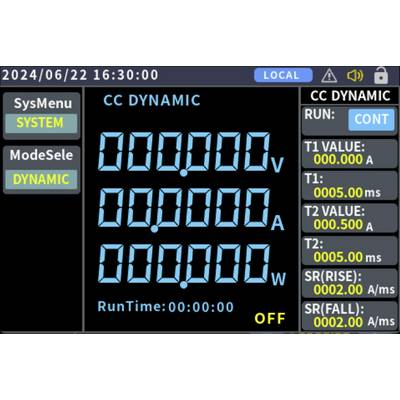

'CC DYNAMIC' screen displays voltage, current, and power as 0. Run time is '00:00:00'. T1 and T2 values in yellow indicate time intervals.

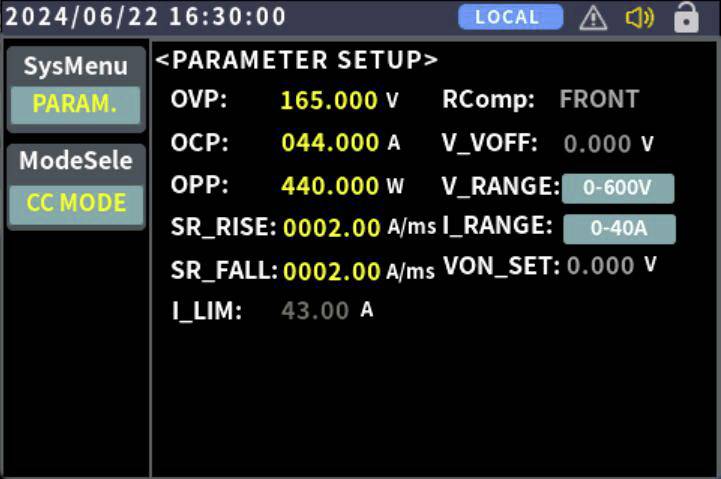

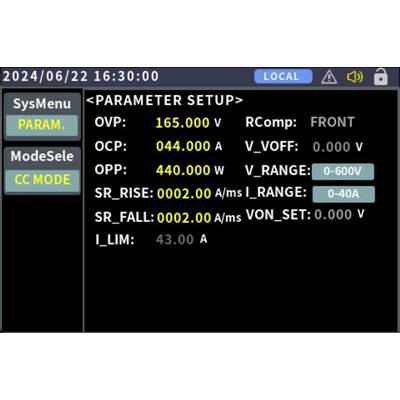

'Parameter Setup' screen displaying voltage and current settings: OVP 165V, OCP 44A, OPP 440W, I_LIMIT 43A, ranges 0-600V, 0-40A.

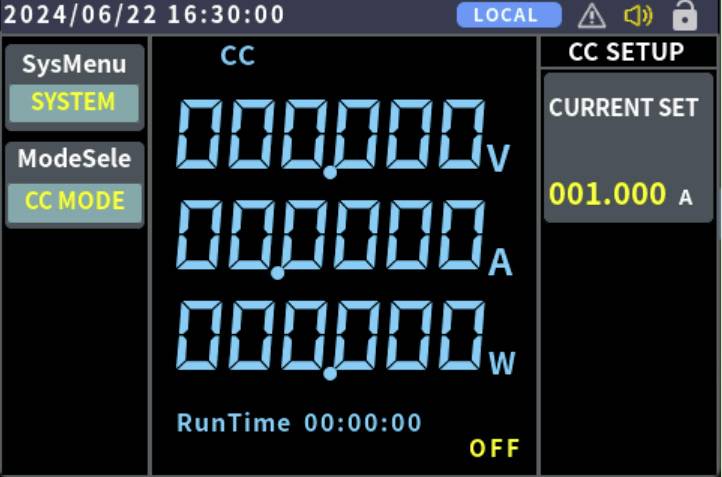

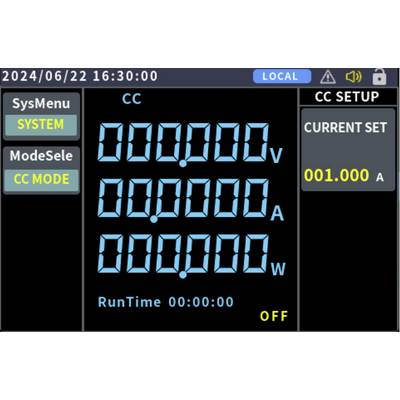

'CC SETUP' screen displays 'CURRENT SET' as '001.000 A'. Other metrics show '0' values for voltage, current, and power. 'RunTime' is '00:00:00'.

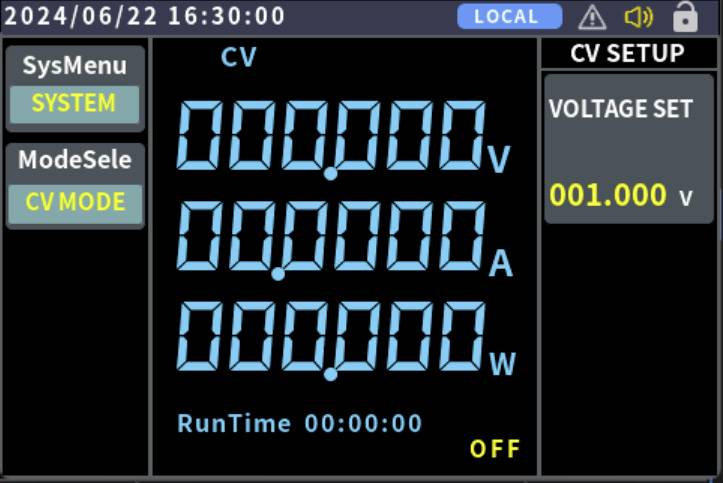

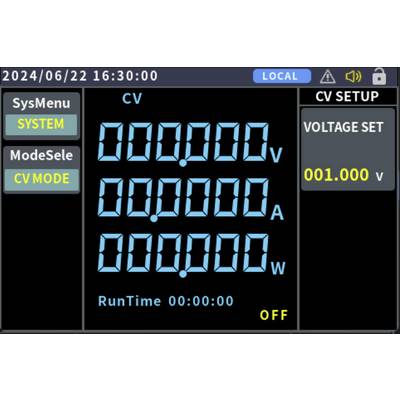

Display screen showing a digital power supply interface. Voltage is set to '001.000 V' in CV mode. Current and wattage are at zero.

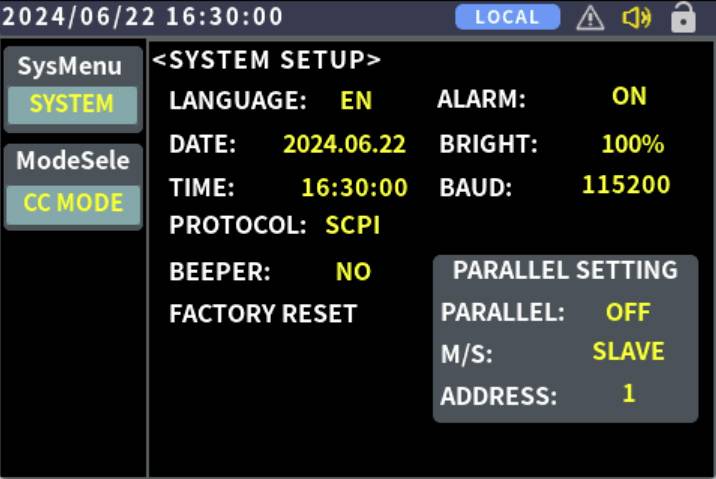

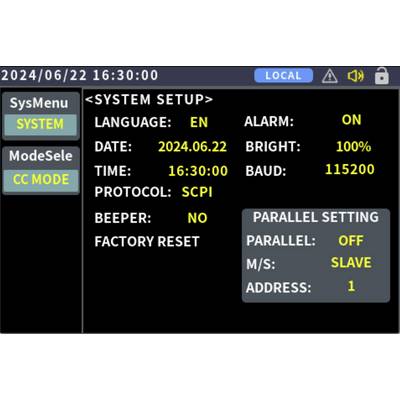

'System Setup' screen displaying language as EN, date 2024.06.22, time 16:30:00, protocol SCPI, alarm ON, brightness 100%, baud 115200, parallel setting OFF, M/S SLAVE, and address 1.

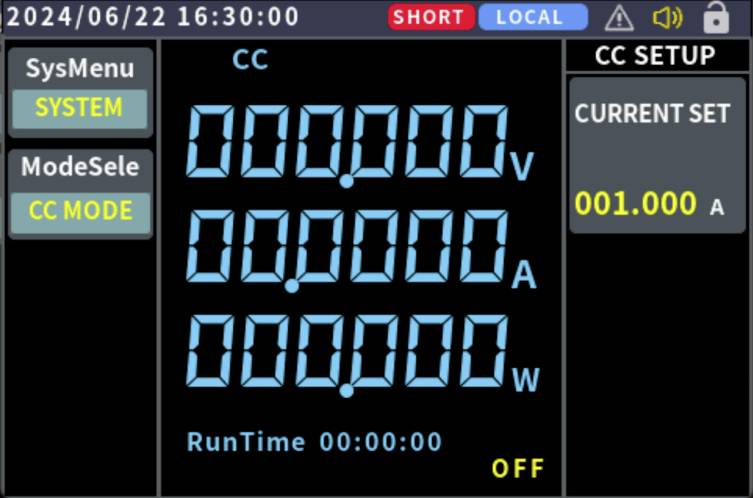

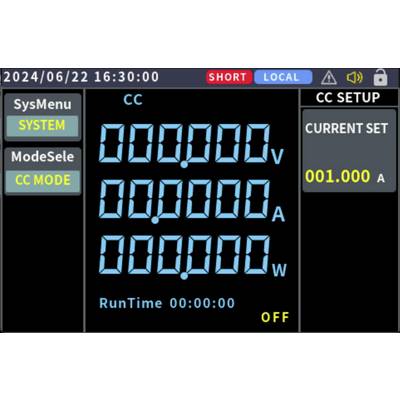

Device screen displaying voltage, current, and wattage readings as zeros. 'CURRENT SET' shows '001.000 A'. 'RunTime 00:00:00 OFF.'

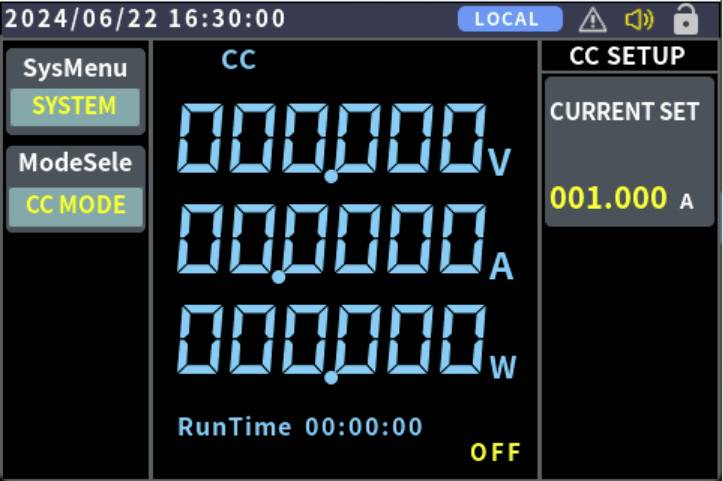

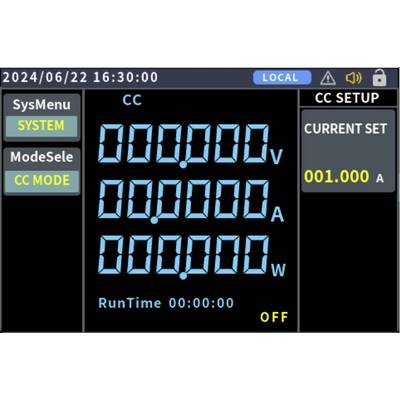

Digital power meter display showing voltage, amperage, and wattage at zero. Current set to 001.000 A. 'RunTime 00:00:00,' mode: CC.

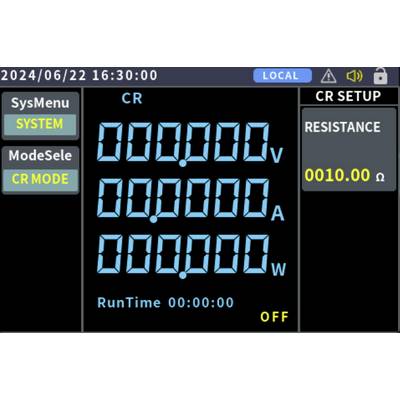

'CR MODE' display showing voltage (V), amperage (A), and wattage (W) all at 0. RunTime at 00:00:00 and setting RESISTANCE at 0010.00 Ω.

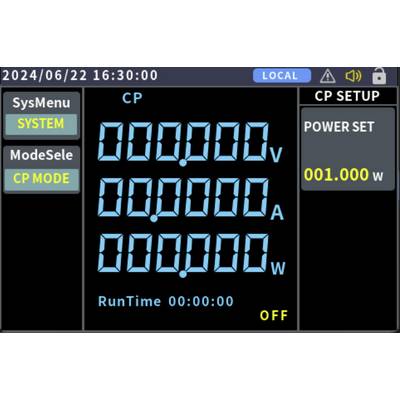

'CP SETUP' screen shows voltage, current, and wattage all at zero with power set at 001.000 W. RunTime is 00:00:00 and is OFF.

1/15

Our service for you

Datasheet (PDF)

Fast track dispatch on Mon, 6 Jul

48 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 528.57 / piece)

€ 528.57

plus VAT.

Report legal concerns

Highlights & Details

VOLTCRAFT EL-2200 DC Electronic load

Input voltage: 230 V ±10%
Frequency range: 50/60 Hz
Input current: 0 - 20 A
Max power: 200 W
Minimum operate voltage: 0.8 V, 20 A
Resolution: 1 mV, 1 mA

Technical specifications

Type: EL-2200

Load input current (max.): 20 A

Max. non-stop power rating: 200 W

Dim: (W x H x D) 215 x 88 x 375 mm

Weight: 4.2 kg

Depth: 375 mm

Height: 88 mm

Width: 215 mm

: Manufacturer's standards (no certificate)

Min. input voltage: 0 V DC

Min. load input current: 0 A

Max. input voltage: 600 V DC

Load input voltage (min.): 0.8 V DC

Inputs: 230 V AC, 50/60 Hz

Input voltage: 0-600 V

Plastic free packaging: Plastic-free packaging

Product type: Electrical load

Documents & Downloads

Datasheet

Datasheet 3451222 VOLTCRAFT EL-2200 Electrical load 600 V DC 20 A 200 W

User & Safety Instructions

User & Safety Instructions 3451222 VOLTCRAFT EL-2200 Electrical load 600 V DC 20 A 200 W

Warranty Terms

Warranty Terms 3451222 VOLTCRAFT EL-2200 Electrical load 600 V DC 20 A 200 W

Download

Download 3451222 VOLTCRAFT EL-2200 Electrical load 600 V DC 20 A 200 W

Description

Highly precise load simulation for power sources
The VOLTCRAFT EL-2200 DC is used for various applications like the testing of power supplies, batteries/batteries or chargers. It offers load control according to constant current (CC), constant voltage (CV), constant resistance (CR) and constant power (CP). Furthermore, functions such as dynamic current testing up to 10 kHz and remote compensation are integrated. 1 output is available, the load values can be set up to a maximum of 230 V, 20 A and 200 W.

Safe operation
In order to ensure safe operation, the VOLTCRAFT EL-2200 DC is repeatedly protected from overvoltages, overloads, overloads and overheating. The parallel control supports up to 10 devices and is also suitable for potentially powerful applications.

Easy analysis
All data is displayed on the easy-to-read 10 cm (3.9 inch) TFT LCD color display. Furthermore, a USB-connection as well as a RS232 standard interface for SCPI-protocols are also available

Installation and accessories
For the stand-alone operation the VOLTCRAFT EL-2200 DC is equipped with foldable pedestal The power supply unit requires two height units half the rack width for rack installation. The unit is supplied with a power cable, a user manual and a safety data sheet.

This text is machine translated.

Features

1/2 2U standard rack size, suitable for rack-mount use
10 cm (3.9 inch) TFT colour LCD display
Four modes: constant current (CC), constant voltage (CV), constant resistance (CR), constant power (CP)
Maximum input: 230 V ±10 %, 20 A, 200 W
Dynamic current testing up to 10 kHz
High-resolution voltage and current readback: 1 mV/0.1 mA
Remote compensation
Multiple protection functions: overvoltage, overcurrent, overpower, overheat, etc.
Standard RS232 interface, supports SCPI protocol
Parallel control, supports up to 10 units for potential high power requirements.
