Statron 3227.31 Electrical load 80 V DC 25.5 A 300 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 562.18 / piece)
€ 562.18
plus VAT.
14-day return policy included
Highlights & Details
Electronic load for ac and dc voltage up to 80 V/25 A 300 W
- Constant control: R, U, I
- 300 W
- 80 V DCAnd AC
- 25.5 A
Technical specifications
- Type
3227.31
- Product type
Electrical load
- Load input current (max.)
25.5 A
- Max. non-stop power rating
300 W
- Dim
(W x H x D) 443 x 134 x 320 mm
- Max. input voltage
80 V DC
- Weight
12 kg
Manufacturer's standards (no certificate)
- Load input voltage (min.)
1 V DC
- Min. load input current
0.05 A
- Width
443 mm
- Height
134 mm
- Depth
320 mm
Documents & Downloads
Datasheet
Datasheet 1400038 Statron 3227.31 Electrical load 80 V DC 25.5 A 300 W
User & Safety Instructions
User & Safety Instructions 1400038 Statron 3227.31 Electrical load 80 V DC 25.5 A 300 W
Description

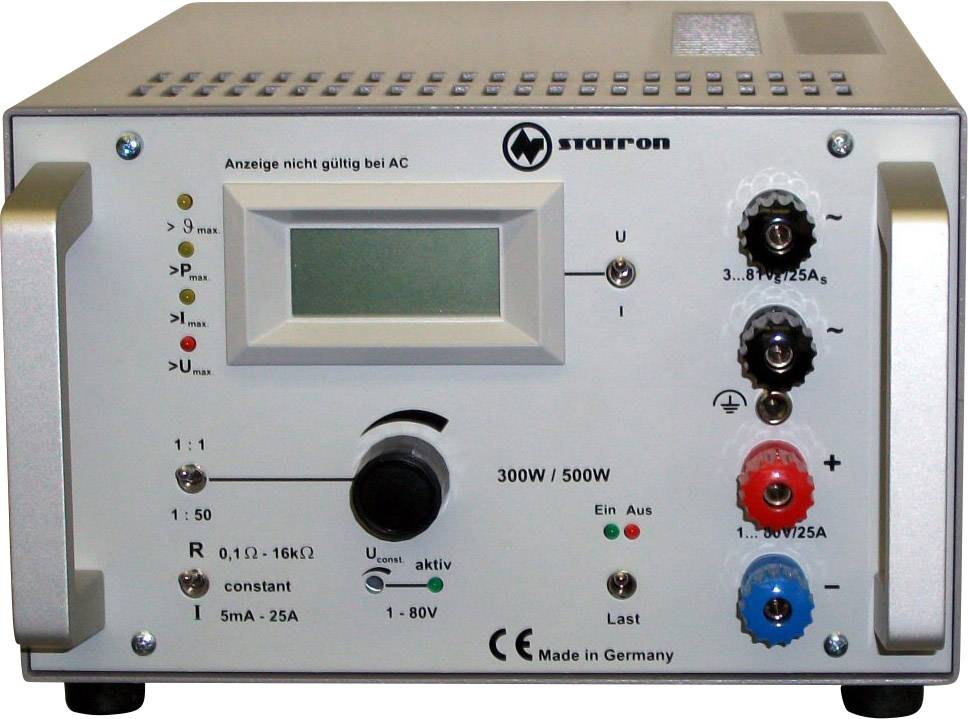

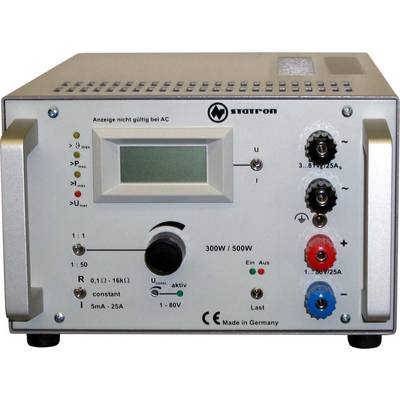

Electronic load for DC and AC voltages. The connection of the DC and AC voltage via separate input sockets. A wide range of protective measures as well as a load on/off switch are available.
This text is machine translated.
This text is machine translated.
Features
- 3.5 digit LCD display for voltage and switchable for current in the DC area
- Input/output galvanically isolated, UNGROUNDED
- Continuous power 300 W (500 Wp)
- Temperature-controlled exhaust
- It can be switched parallel
- External Input ON/OFF
- Compact design
- Undervoltage threshold can be set.
