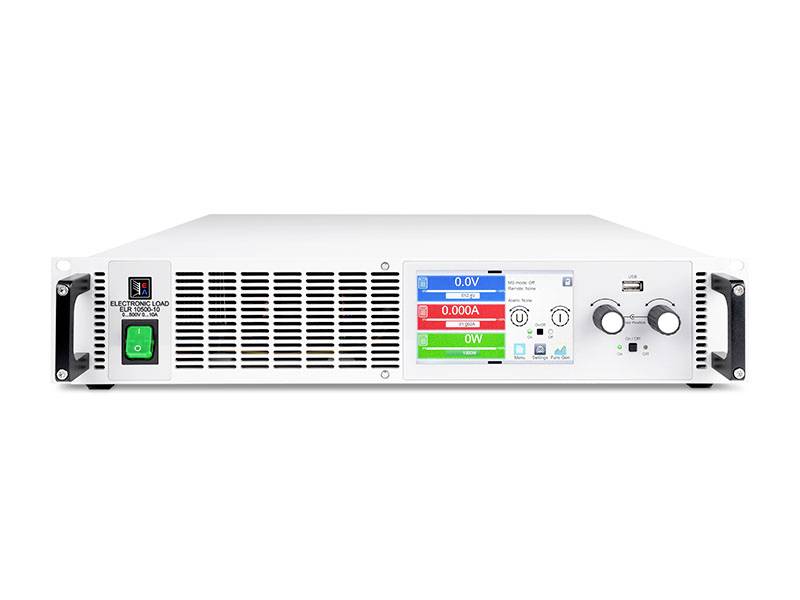

EA Elektro Automatik EA-ELR 10080-120 2U Electrical load 80 V DC 120 A 3000 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 6,587.39 / piece)
€ 6,587.39
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Interfaces: USB, Ethernet, analogue, USB-hostProtection class 1Protection class: IP20Operating temperature 0 °C - +50 °C
- Type
EA-ELR 10080-120 2U
- Load input current (max.)
120 A
- Max. non-stop power rating
3000 W
- Weight
12.7 kg
Manufacturer's standards (no certificate)
- Min. load input current
0 A
- Max. input voltage
80 V DC
- Load input voltage (min.)
0 V DC
- Input voltage
230 V AC
- Product type
Electrical load
Documents & Downloads
Datasheet
Datasheet 2757360 EA Elektro Automatik EA-ELR 10080-120 2U Electrical load 80 V DC 120 A 3000 W
User & Safety Instructions
User & Safety Instructions 2757360 EA Elektro Automatik EA-ELR 10080-120 2U Electrical load 80 V DC 120 A 3000 W
Description
The device series ELR 10000 from EA Elektro-Automatik are programmable power refeeding DC-loads. During operation, the DC loads work regeneratively and feed back the energy to the local electricity grid with an efficiency of over 96%. The series ELR 10000 series include single-phase and three-phase devices that can operate with their wide AC input range almost all mains voltages worldwide. The DC-voltages and currents are based on applications, the spectrum ranges in a device from 0 - 80 V to 0 - 2000 V as well as from 0 - 6 A to 0 - 1000 A.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Electronic load2x plug for remote sensorUSB cable (1.8m)1x Set DC-Terminal cover1x Sense terminal cover1x USB stick with documentation and software1x cable binder for strain relief
