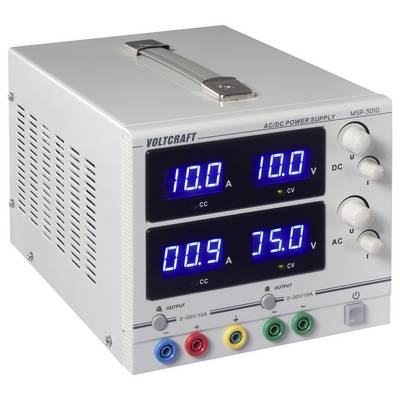

VOLTCRAFT MSP-3010 Bench PSU (adjustable voltage) 0 - 30 0 - 10 A 600 W 4 mm socket No. of outputs 2 x
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 553.78 / piece)
€ 553.78
plus VAT.
Only 1 Piece(s) available
Highlights & Details
VOLTCRAFT MSP-3010 AC/DC Switching power supply 2x 30 V 2 A
- No. of outputs 2 x
- 0 - 30 V AC / 0 - 10 A; 0 - 30 V DC / 0 -10 A
- 600 W
- 4 mm socket
Technical specifications
- Dimension (W x H x D): 170 x 160 x 250 mm
- Type
MSP-3010
- Product type
Bench PSU (adjustable voltage)
- No. of outputs
2 x
600 W
- Technology
SMPSU
- Interfaces
4 mm socket
Manufacturer's standards (no certificate)
- Weight
3 kg
- Output voltage (max.)
30 V AC
- Output voltage (min.)
0 V AC
- Output voltage 2 (max.)
30 V DC
- Output voltage 2 (min.)
0 V DC
- Max. output current
10 A
- Output current (min.)
0 A
- Output current 2 (max.)
10 A
- Output current 2 (min.)
0 A
- Inputs
100-127 V AC or 220-240 V AC, 50/60 Hz
- MTBF
2000 h
- Max. temperature
85 °C
- Min. temperature
0 °C
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3474029 VOLTCRAFT MSP-3010 Bench PSU (adjustable voltage) 0 - 30 0 - 10 A 600 W 4 mm socket No. of outputs 2 x
User & Safety Instructions
User & Safety Instructions 3474029 VOLTCRAFT MSP-3010 Bench PSU (adjustable voltage) 0 - 30 0 - 10 A 600 W 4 mm socket No. of outputs 2 x
User & Safety Instructions 3474029 VOLTCRAFT MSP-3010 Bench PSU (adjustable voltage) 0 - 30 0 - 10 A 600 W 4 mm socket No. of outputs 2 x
Warranty Terms
Warranty Terms 3474029 VOLTCRAFT MSP-3010 Bench PSU (adjustable voltage) 0 - 30 0 - 10 A 600 W 4 mm socket No. of outputs 2 x
Description
Features
- 600 W AC and DC power output
- AC and DC both constant voltage and constant current
- AC and DC can be set separately

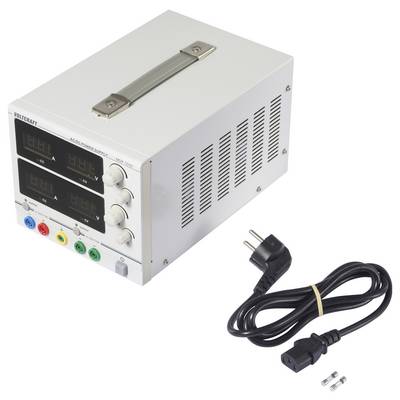

Scope of delivery
- Switching power supply
- Power cord
- Manual
