Name: GW Instek GPM-8330-60 (CE) Network diagnostics 3-phase Graphic display
Brand: GW Instek
SKU: 3439054
Availability: BackOrder

GW Instek GPM-8330-60 (CE) Network diagnostics 3-phase Graphic display-0

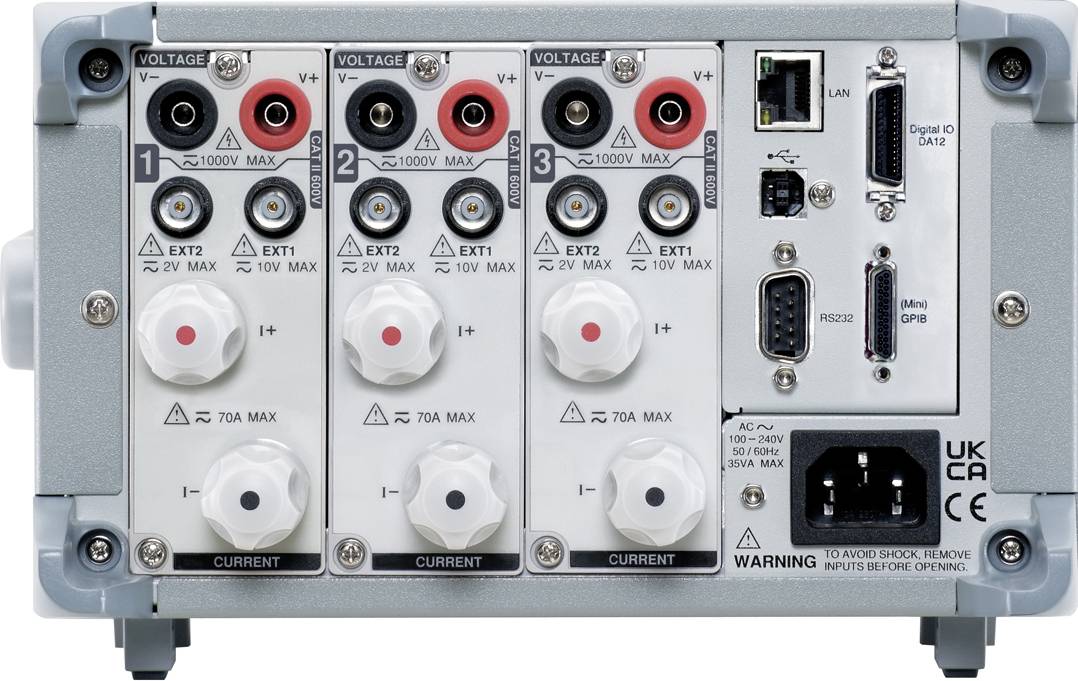

GW Instek GPM-8330-60 (CE) Network diagnostics 3-phase Graphic display-1

1/2

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 5,755.00 / piece)

€ 5,755.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

GW Instek GPM-8330-60 (CE) digital Power meter (RS-232C / USB device & host / LAN)

Fully-fledged three-phase power meter: 3 input elements for all three-phase measurement configurations (1P3W, 3P3W, 3P4W, 3V3A).
High current capacity: Direct current input up to 60 A (guaranteed).
Wide frequency bandwidth: Measures DC, 0.1 Hz to 100 kHz.
Intuitive display: Large 5-inch TFT LCD display with 5-digit measurement values and waveform display (V/I/P).
Comprehensive parameter analysis: 25 different performance parameters, including THDV/THDI.
Extended harmonic analysis: Up to 50. Order, compliant with IEC 61000-4-7.
Intelligent integration function: Automatic range switching for precise results.
Versatile connectivity: Standard RS-232C, USB (Host & Device), LAN; optional GPIB + Digital I/O (DA12).
Data storage and export: Screen recordings via USB-host, internal memory for 10,000 records.

Technical specifications

Bandwidth (voltage/current): DC, 0.1 Hz to 100 kHz
Sampling rate: Approx. 300 kHz
Display resolution 5 digits
Input resistance (voltage): Approx. 2 MΩ
Input resistance (power, direct input): Approx. 1.65 MΩ
Maximum input (voltage): 1000 V
Maximum input (current): 70 A (peak 150 A), guaranteed specification 65 A for direct input 1A to 60A
Harmonic analysis: Yes, to 50 th order
Total harmonic distortion: Yes
Measurement parameters: Vrms, VMN, Vdc, Vac, IRMS, IDC, IAC, P, VA, VAr PF, CFI, CFV, DEG, IHZ, Hz, V+PK, V-PK, I+PK, I-PK, P+PK, P-PK, THDI, THDV, MATH, MCR, EFI
Waveform display: V (voltage), I (current), P (power)
External current sensor input: Yes (EXT1/EXT2)
Internal memory: 10,000 data logs
Automatic range switching: For integration mode
Display refresh rate 0.1s/0.25s/0.5s/1s/2s/5s/10s/10s/20s
3 or 6 (6A) can be selected

Product type: Network diagnostics

Display (details): 5" TFT LCD (800*480)

Phase detection: Yes

: Manufacturer's standards (no certificate)

Power supply (details): AC 100 V to 240 V, 50 Hz to 60 Hz; Consumption Max. 35 VA

Dim: (L x W x H) 40.25 x 22 x 13.2 mm

Weight: 3.85 kg

Measurement type: 3-phase

Features: Graphic display

Width: 22 mm

Height: 13.2 mm

Length: 40.25 mm

Interfaces: RS232C
USB host
USB device
LAN

Documents & Downloads

Datasheet

Datasheet 3439054 GW Instek GPM-8330-60 (CE) Network diagnostics 3-phase Graphic display

User & Safety Instructions

User & Safety Instructions 3439054 GW Instek GPM-8330-60 (CE) Network diagnostics 3-phase Graphic display

Description

Discover peak performance in digital power measurement with the GW Instek GPM-8330-60 digital Power Meter. As an extension of the proven GPM-8330 series, this advanced device offers unsurpassed precision and versatility for demanding measurement tasks in production, quality assurance and research & development.

This text is machine translated.
