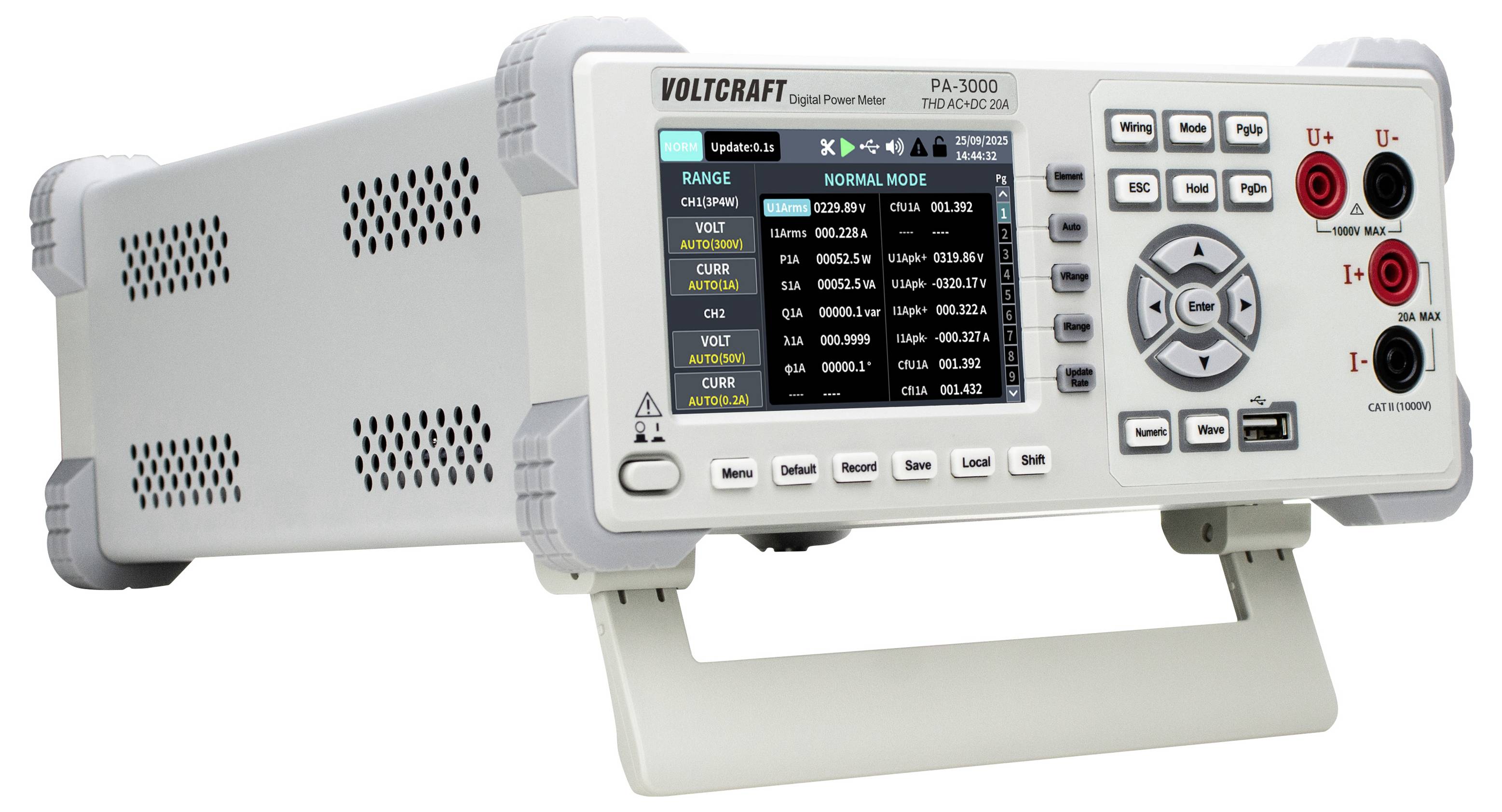

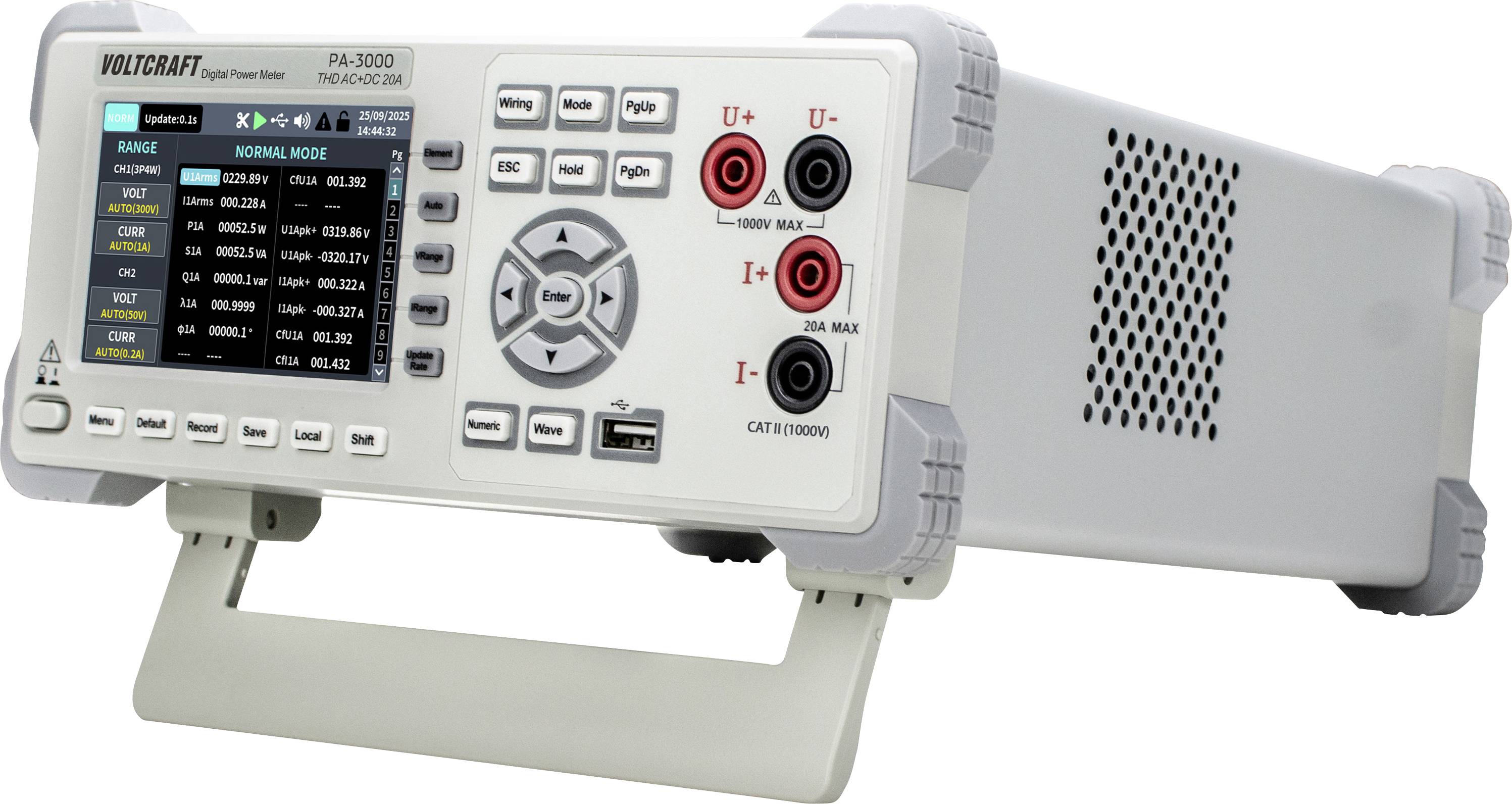

VOLTCRAFT PA-3000 Network diagnostics 3-phase 24-bit inputs, Graphic display

Precise 3-phase power measurement and mains analysis

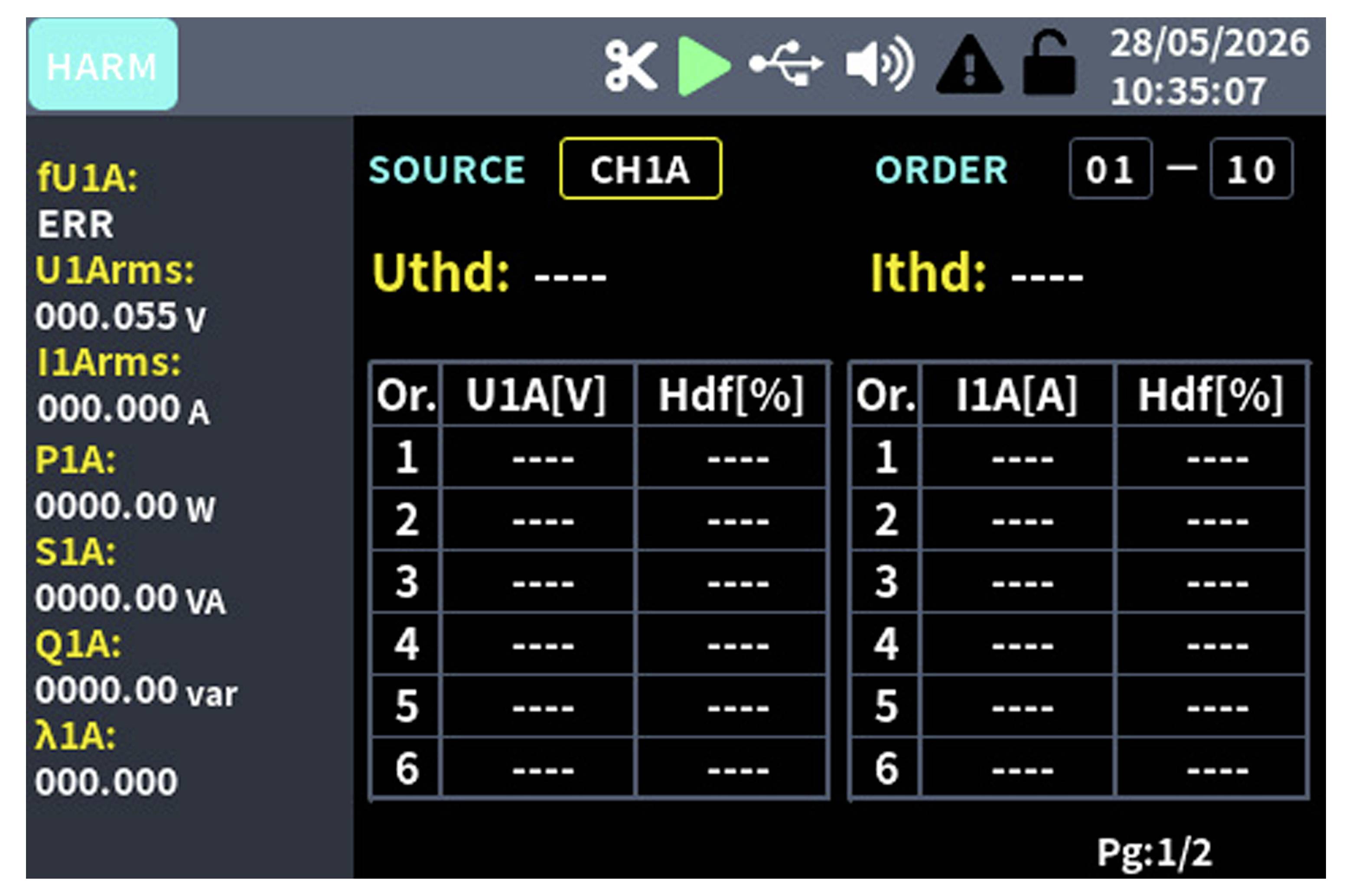

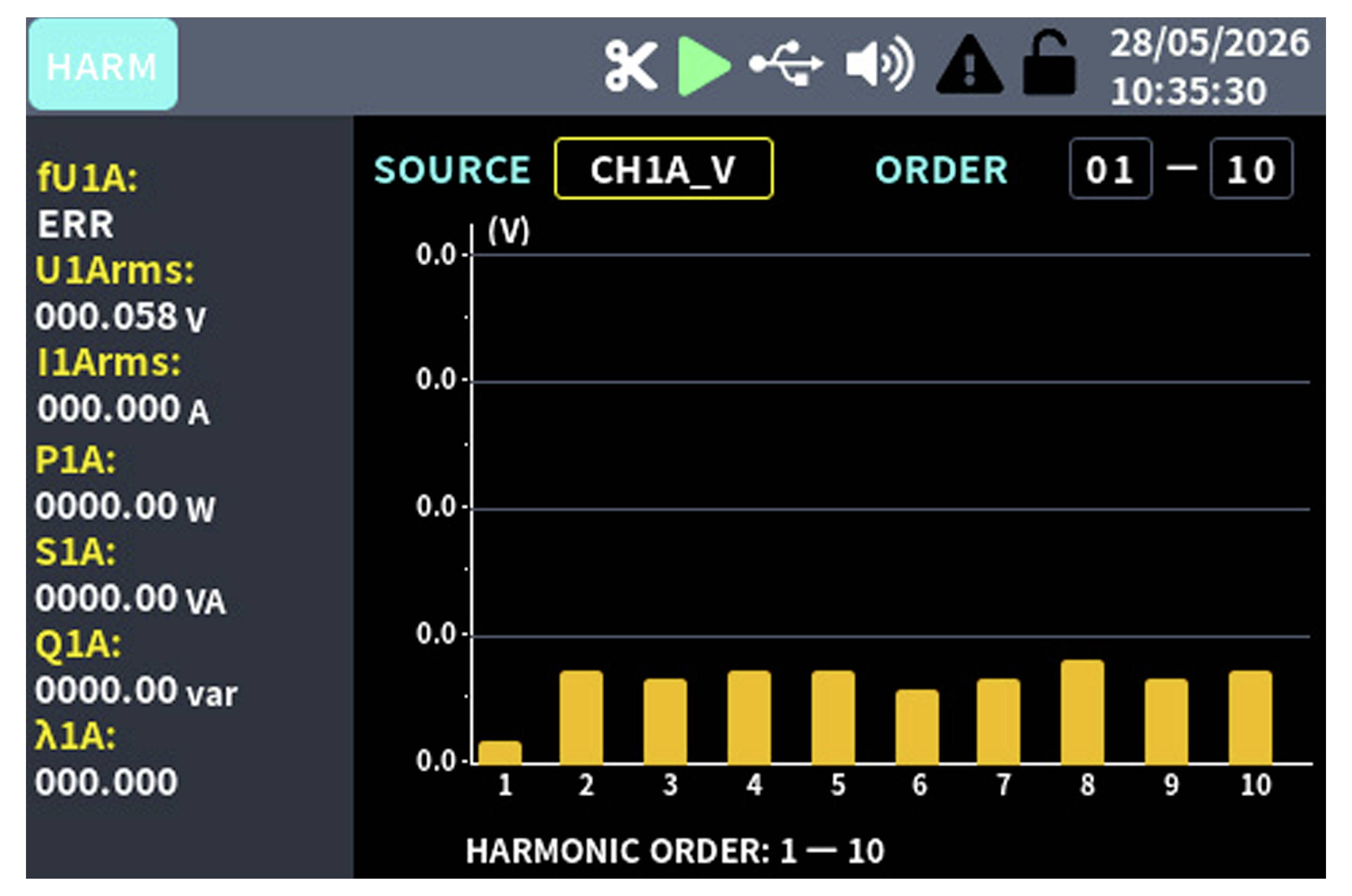

The 3-phase power analyzer from VOLTCRAFT is the ideal partner for detailed investigations of electrical systems in trade and industry. With a class 0.5 high-precision accuracy, the device enables the exact recording of voltages, currents and active power. A two-channel input and the in-depth harmonic diagnosis up to 63. Order make the fast identification of network reactions and interference sources in complex systems possible.
Real-time capture and detailed indicator analysis
All operational and performance data are recorded seamlessly in real time. The system detects voltage (V), current (A), active power (W), apparent power (VA), reactive power (var), Power factor (PF/λ), frequency (freq/ƒ), crest factor (V/I), peak values (Upk, Ipk) as well as the total distortion factor (THD). Thanks to an excellent resolution of up to 0.01 V at a voltage, 0.001 A at current and up to 0.01 W in power range even the slightest load changes can be documented exactly
Interfaces, visualization and data storage

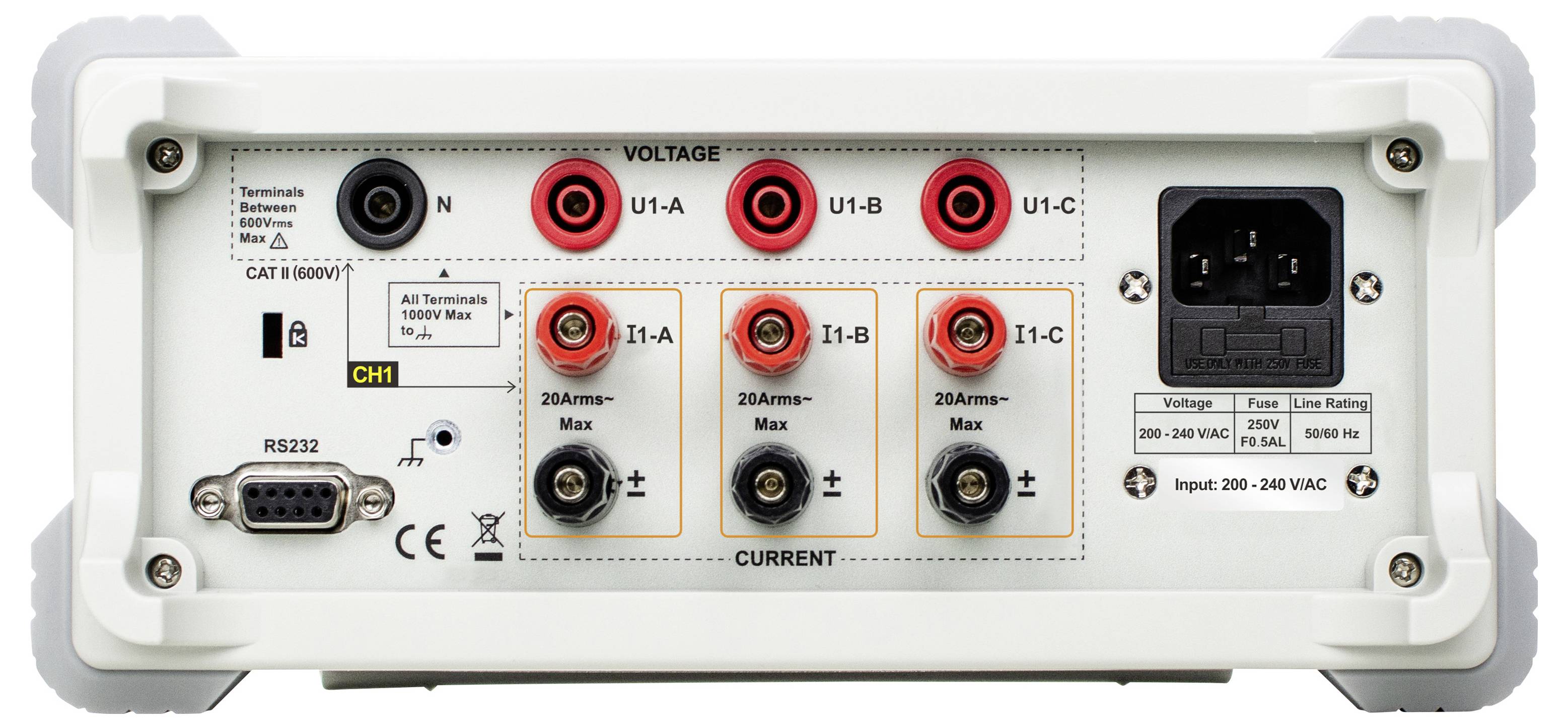

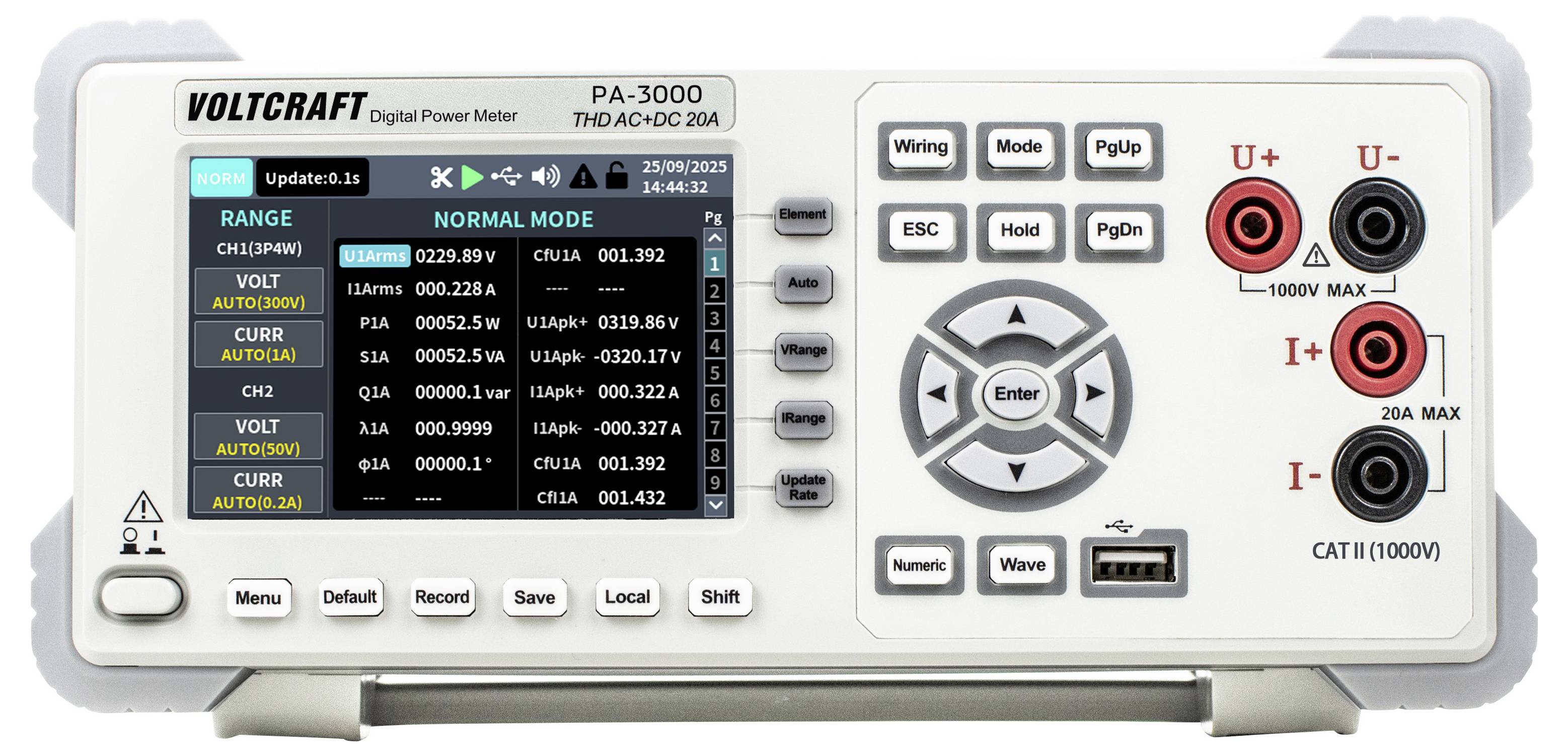

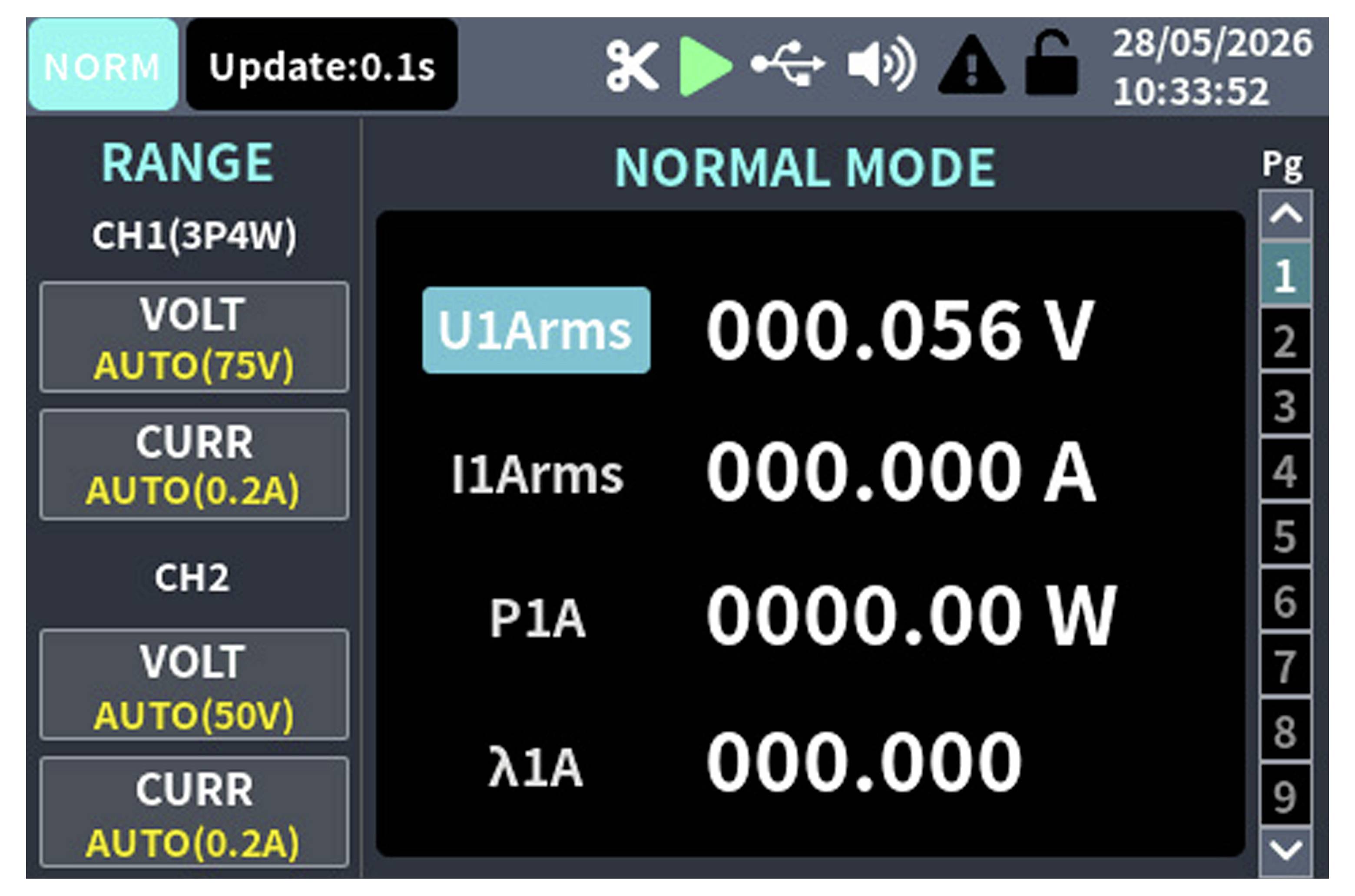

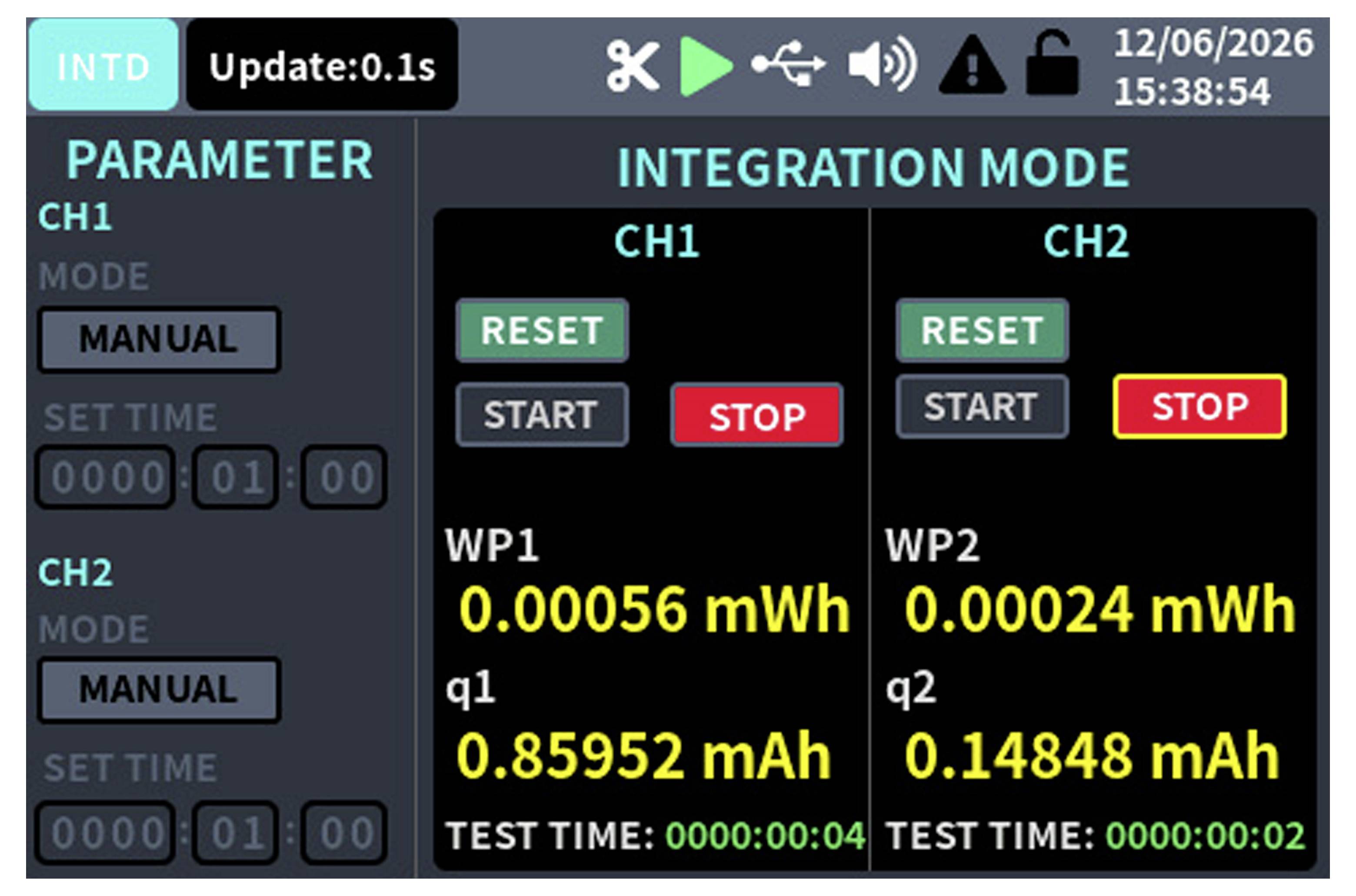

The measurement values are displayed clearly on a 10 cm (3.95") large color TFT display. A USB data logger is available for long-term documentation and evaluation, which is supplemented by a practical screenshot function for fast visual logging. A serial RS232 interface ensures reliable data communication and easy integration into existing test station environments.
Scope of delivery and system components
The VOLTCRAFT power analyzer comes with a power cable and test lead set with banana plugs and alligator clips. A detailed user manual is also enclosed.
