Buy PCE Instruments Power Analyzer Network diagnostics 3-phase, 1-phase Power testing, Graphic display

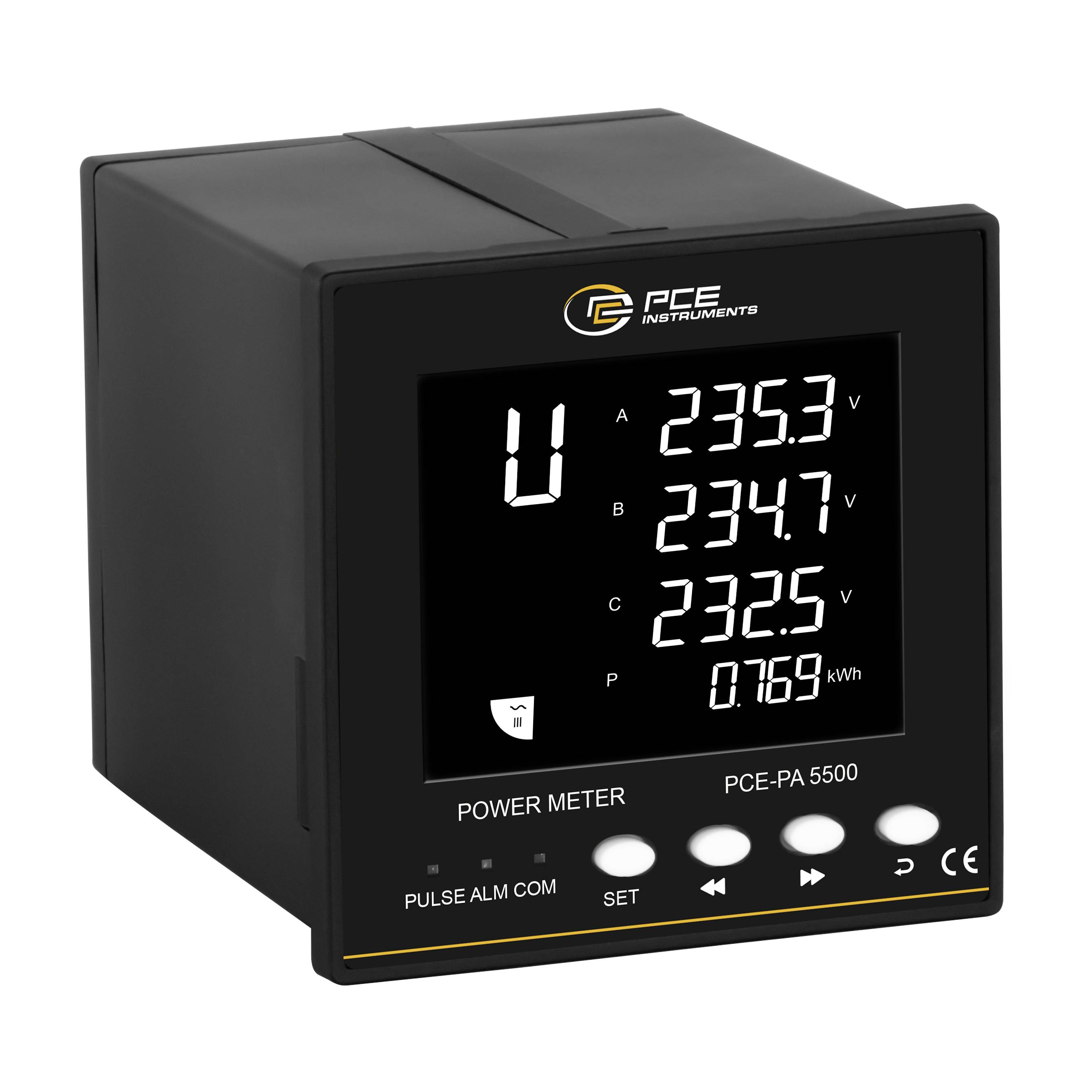

Black PCE Instruments power meter displaying voltage readings for phases A, B, and C and energy use in kWh.<br>

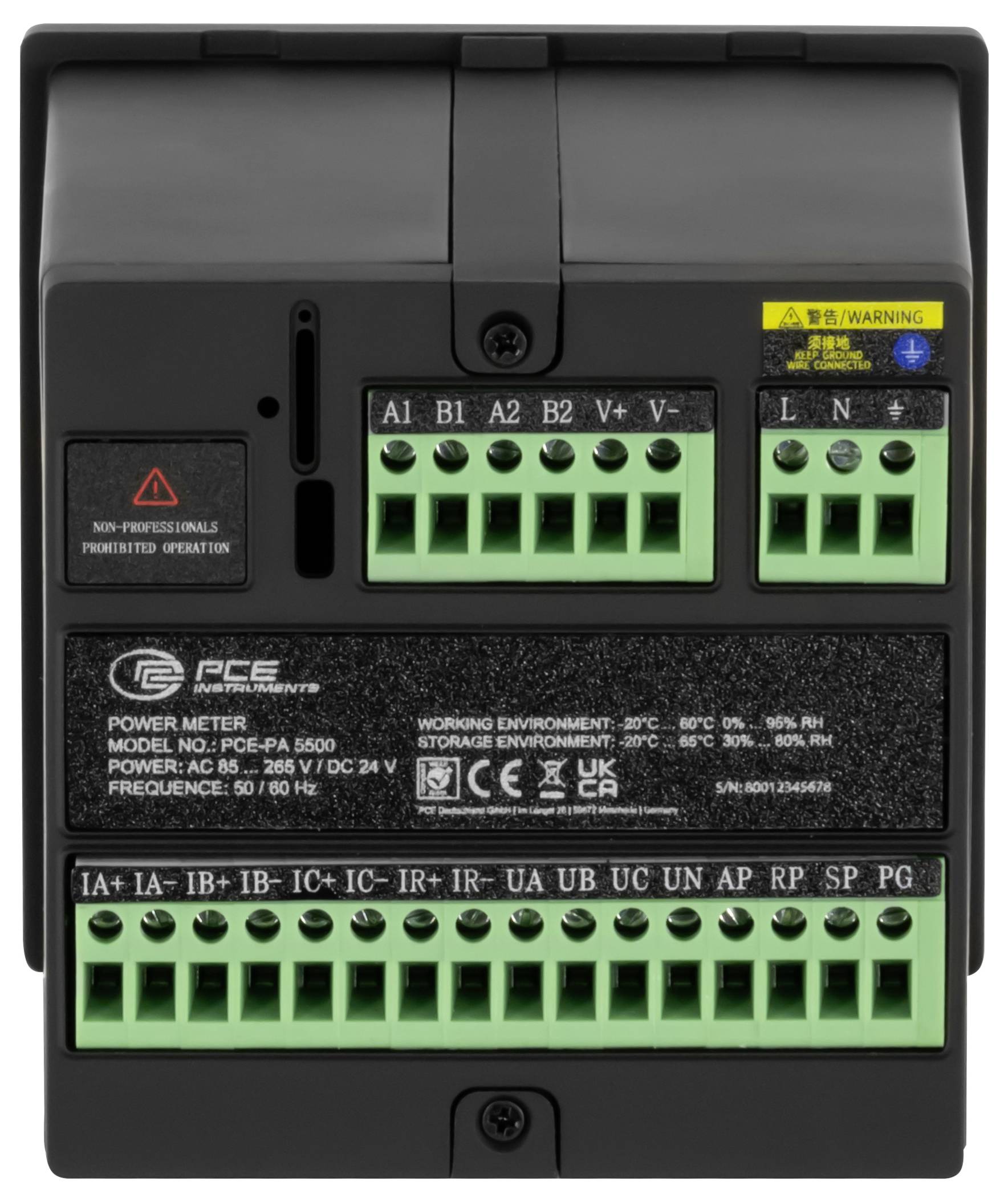

Back view of a PCE power meter with labeled green screw terminals for control and power connections.

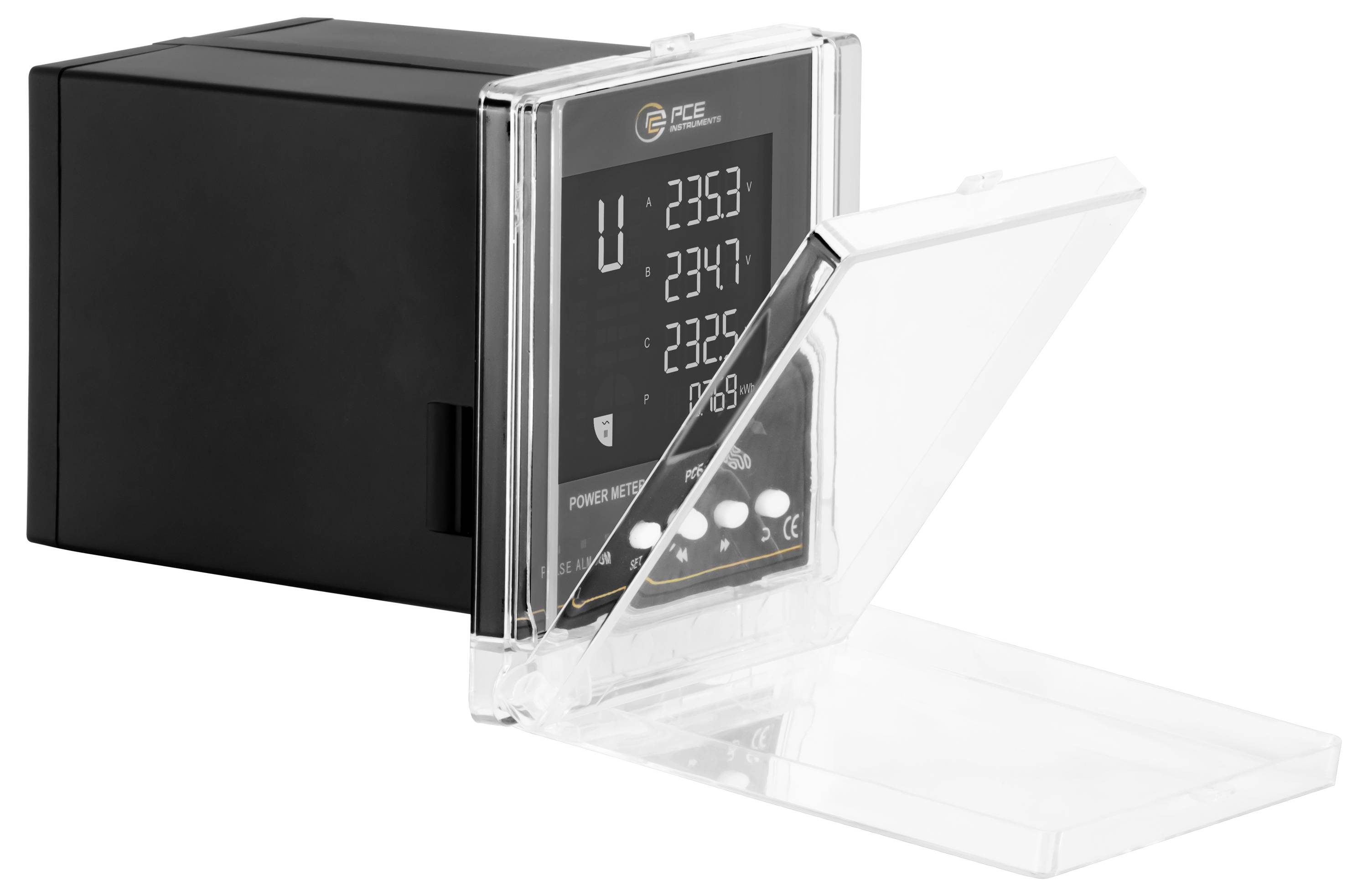

Black electronic device with a clear hinged cover open, showing a digital display and control buttons on the front.

PCE Instruments power meter with blank display, clear protective cover, and probe cable accessory shown on a white background.

1/4

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 138.65 / piece)

€ 138.65

plus VAT.

Only 3 Piece(s) available

Report legal concerns

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-PA 5500

AC voltage: 30 ... 264 V
Direct current: 0.025 mA ... 5 A
Energy counter
RS485 Modbus Interface
Accuracy class 0.5
Black-white LCD, high-resolution

Technical specifications

Alternating voltage AC
Measuring range 30 V ... 264 V
Resolution 0.1 V
Accuracy 0.5 %
Overload 1500 VAC continuous, 2500 VAC, 50 ... 60 Hz for one minute
Alternating current (AC)
Measuring range 0.025 A ... 5 A
Resolution: 0.01 A
Accuracy 0.5 %
Overload 10-fold RMS for 1 s.
(Active power:
Measuring range 0.75 W ... 1320 W
Resolution 0.01 W
Accuracy 0.5 %
Power factor
Measuring range -1 ... 1
Resolution 0.001
Accuracy 0.5 %
Frequency
Measuring range 45 Hz ... 65 Hz
Resolution 0.01 Hz
Accuracy 0.5 %
Harmonic measurement (harmonic)
Measuring range 1 (atomic number) ... 50 (product codes)
Current range 20 ... 100 %.
Voltage range 0.1 ... 100 %.
General Technical Data
Display type LCD with lighting
Display size 3.4 inches
Interface: RS485
Standard(s) IEC 62053-22, GB/T18215,322-2008, IEC61010-1
Phase shift 0 ... 359.9 °
Control panel cut-out 96X96 mm
Menu language English
Protection class (device) IP20
Power supply 100 ... 260 VAC, approx. 5 W
Weighs 474 g.
Depth 110 mm
Operating conditions -20 ... 60 °C , 0 ... 95 % r.F.
Storage conditions -20 ... 65 °C , 30 ... 80 % r.F.
Rechargeable battery/battery 1x 3 V CR1225 , Lithium
Capacity 50 mAh

Connector: PG plug

Display (details): 3.4 inches LCD-Display

Phase detection: Yes

PG recognition: No

Power supply (details): 100 … 260 V AC

Dim: (L x W x H) 96 x 96 x 120 mm

Weight: 474 g

Height: 120 mm

Length: 96 mm

Width: 96 mm

: Manufacturer's standards (no certificate)

Interfaces: RS485

Measurement type: 3-phase
1-phase

Features: Power testing
Graphic display

Product type: Network diagnostics

Documents & Downloads

Datasheet

Datasheet 3192934 PCE Instruments Power Analyzer Network diagnostics 3-phase, 1-phase Power testing, Graphic display

User & Safety Instructions

User & Safety Instructions 3192934 PCE Instruments Power Analyzer Network diagnostics 3-phase, 1-phase Power testing, Graphic display

Description

The power meter is a compact instrument for measurement and display of various mains parameters in three-phase networks. This power meter can measure the power values of individual consumers or of electrical branches Apart from the voltages and currents, the apparent, reactive and effective power as well as active and reactive energy is measured and displayed on the large 68 x 55 mm display. An RS485 interface is also integrated in this power meter, which facilitates integration into existing systems. The communication of the RS485 interface is handled using the Modbus RTU protocol. It offers the possibility to read measured values from the power meter, or to read and change the device settings.

The power meter is for panel installation with a cut-out of 96X96 mm. The delivery package includes a transparent door that can be attached to the front, and thus protects the device against dust and moisture. Along with the many measurement functions the power meter offers alarm functions. The stable power supply is the top priority for every network operator. In order to avoid fluctuations in the power quality and faults, network monitoring, control and automation must be adapted and optimized.

This text is machine translated.
