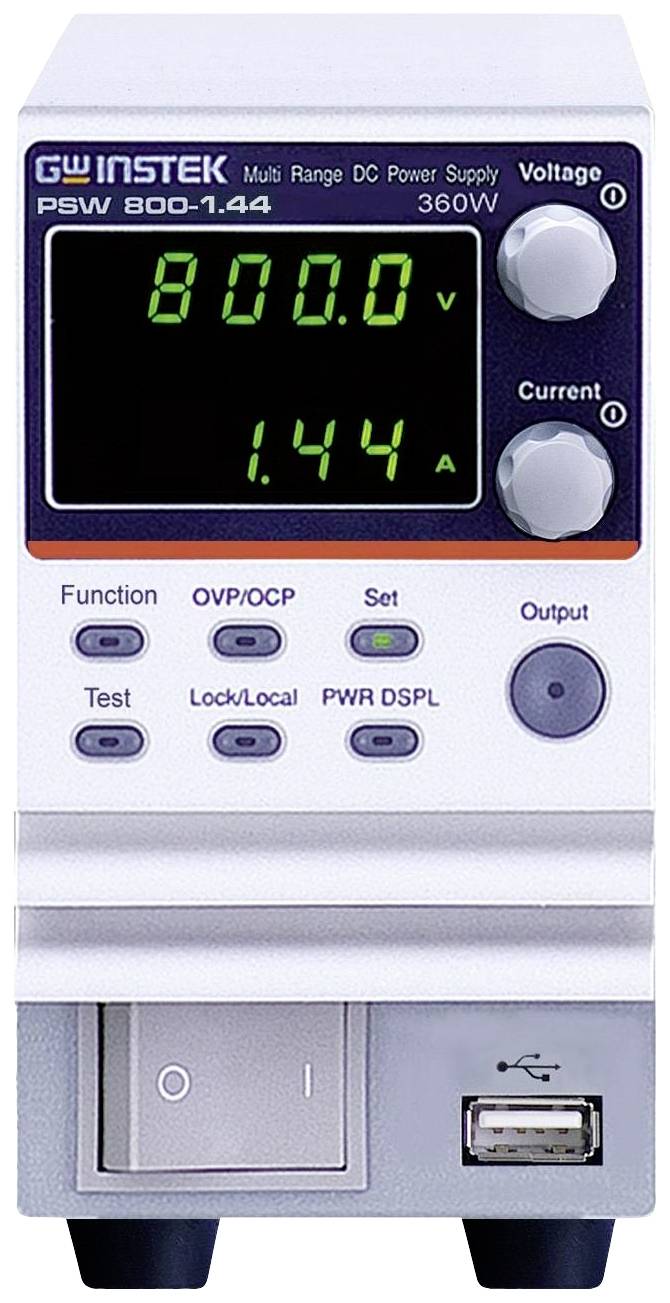

A laboratory power supply with a digital display shows '800.0V' and '1.44A'. There are buttons for voltage, current, and various functions.

A laboratory power supply with a digital display shows '800.0V' and '1.44A'. There are buttons for voltage, current, and various functions.

Image similar

GW Instek

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 1,999.00 / piece)

€ 1,999.00

incl. VAT

Only 3 Piece(s) available

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

360 W multi-range programmable switching DC Power supply

No. of outputs 1 x
0 - 800 / 0 - 1.44 A
360 W
LAN
Master/slave communication protocol

Technical specifications

Type: PSW 800-1.44

Product type: Bench PSU (adjustable voltage)

No. of outputs: 1 x

: 360 W

Technology: SMPSU

Interfaces: LAN

Features: Master/slave communication protocol

Dim: (W x H) 71 mm x 124 mm

: Manufacturer's standards (no certificate)

Input voltage: 115 V AC
230 V AC

Weight: 3 kg

Type: Desktop

Output voltage (max.): 800 V DC

Output voltage (min.): 0 V DC

Max. output current: 1.44 A

Output current (min.): 0 A

Mains control: 0.05 % +5 mV

Type: Synchronised

Width: 71 mm

Height: 124 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3045957 GW Instek PSW 800-1.44 Bench PSU (adjustable voltage) 0 - 800 0 - 1.44 A 360 W LAN Master/slave communication protocol N

User & Safety Instructions 3045957 GW Instek PSW 800-1.44 Bench PSU (adjustable voltage) 0 - 800 0 - 1.44 A 360 W LAN Master/slave communication protocol N

Information

Information 3045957 GW Instek PSW 800-1.44 Bench PSU (adjustable voltage) 0 - 800 0 - 1.44 A 360 W LAN Master/slave communication protocol N

Description

The devices of the PSW-series are multi-area laboratory power supplies with one output. The multi-range function enables a fast and flexible setting of output voltage and current within the output power of the device. It can be connected up to 3 power supplies in parallel and up to 2 units in series. Devices of the PSW-series can also be combined with different output values. This creates a multitude of combination possibilities and thus always offers the right solution for many applications. PSW series devices are equipped with a USB and LAN interface as standard.

This text is machine translated.

Features

Can be switched in series and parallel
Adjustable rise time
Interfaces: LAN, USB
CV/CC priority
High efficiency

Scope of delivery

Power cable;
LabVIEW driver (CD)
User manual

Description

The devices of the PSW-series are multi-area laboratory power supplies with one output. The multi-range function enables a fast and flexible setting of output voltage and current within the output power of the device. It can be connected up to 3 power supplies in parallel and up to 2 units in series. Devices of the PSW-series can also be combined with different output values. This creates a multitude of combination possibilities and thus always offers the right solution for many applications. PSW series devices are equipped with a USB and LAN interface as standard.

This text is machine translated.

Features

Can be switched in series and parallel
Adjustable rise time
Interfaces: LAN, USB
CV/CC priority
High efficiency

Scope of delivery

Power cable;
LabVIEW driver (CD)
User manual
