Buy H-Tronic 1114800 Power failure alarm rechargeable Volume 80 dB

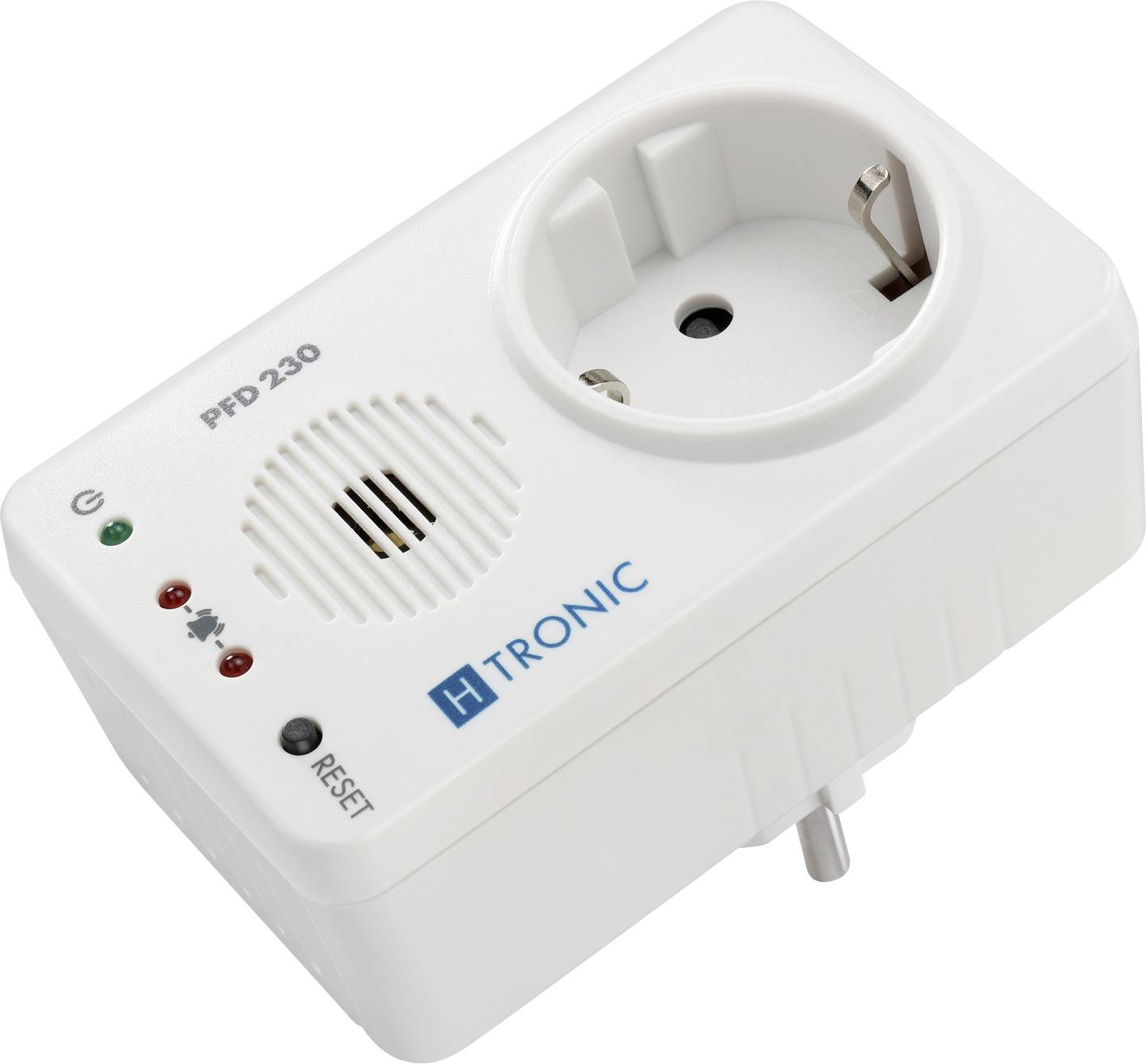

A plug-in power failure detector with a socket outlet, labeled 'PFD 230' and 'H Tronic.' Features LED indicators and a reset button.

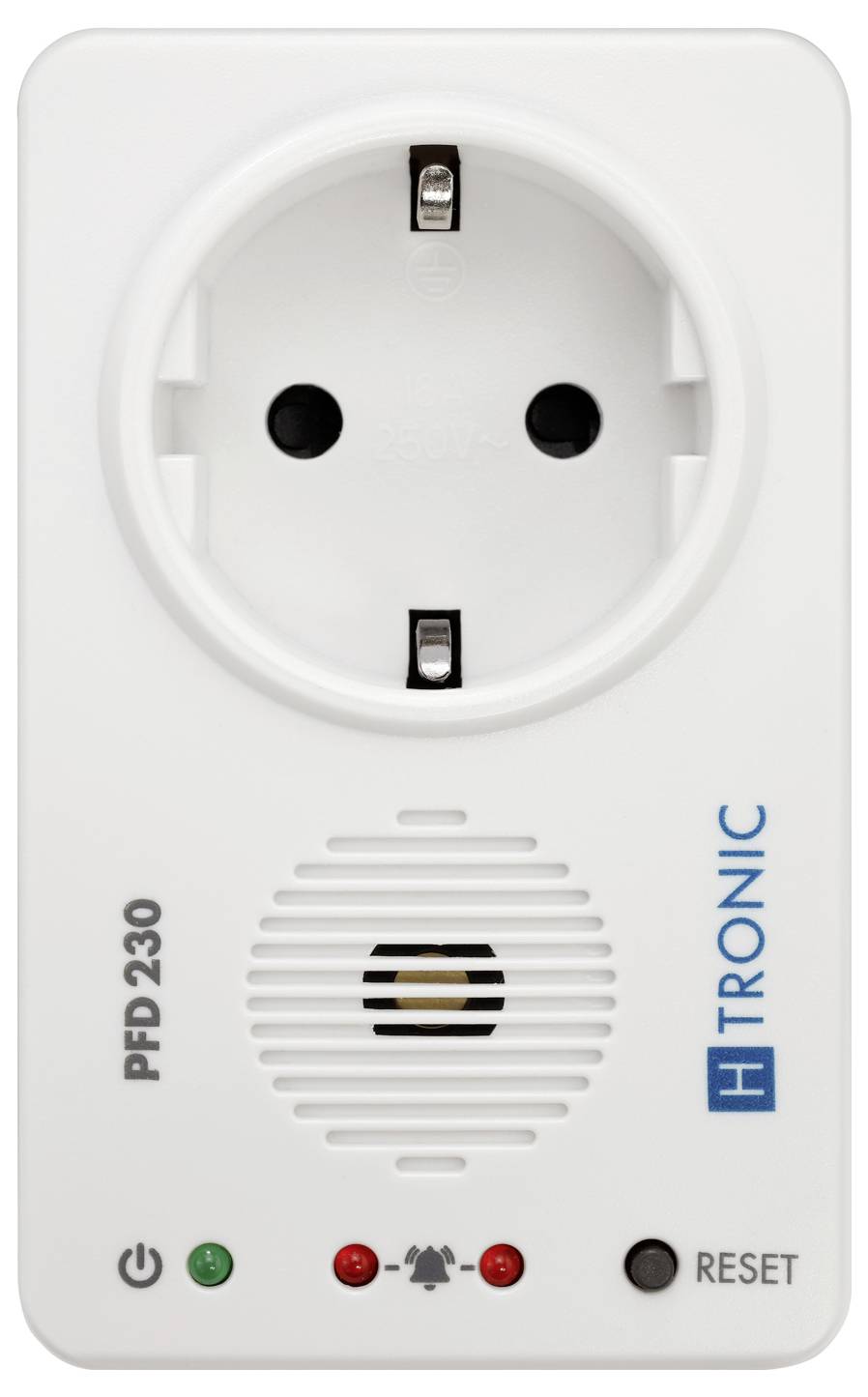

'PFD230' power outlet with a reset button, status indicators, and 'H TRONIC' branding. Designed for electronic device protection.

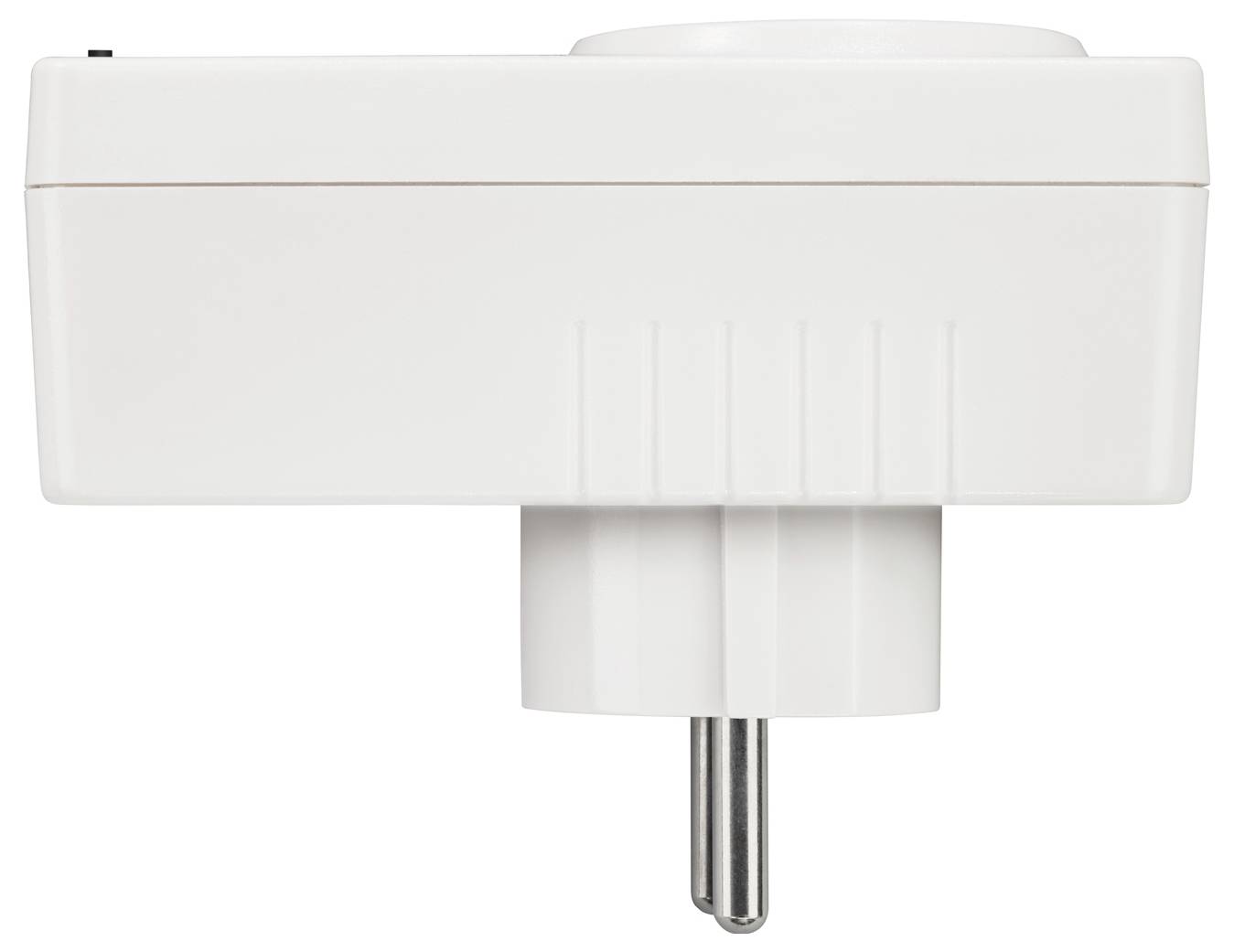

A white, rectangular, three-prong electrical plug adapter viewed from the side, with grooves on the body for grip.

'PFD 230 reports power outages.' On the left a electricity pylon, on the right a socket with labelling.

1/4

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

18 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 26.04 / piece)

€ 26.04

plus VAT.

Report legal concerns

Highlights & Details

Power failure alarm PFD 230 - alarm up to 24 hours (approx. 80 dB)

Optical and acoustic alarm (approx. 80 dB) in case of power failure
Alarm up to 24 hours thanks to built-in NiMH battery
Simple installation as adapter between power socket and refrigerator, for example
Suitable for appliances up to 16 A and max. 3680 W.

Technical specifications

Power consumption 0.5 W
Nominal current max. 16 A
Breaking capacity (resistive load): Max. 3680 W
Ambient temperature 0 °C to 50 °C
Relative humidity: < 80%, non-condensing
Protection class: IP20
Connector type: Type F
NiMH batteries included
Battery voltage 4 × 1.2 V
Battery capacity 600 mAh
Max. Alarm duration 24 h
Dimensions: 97 × 60 × 41 mm (depth including mains plug 78 mm)
Weight: 177 g

Operating voltage: 230 V AC

Volume: 80 dB

Factory colour: White

Width: 60 mm

Depth: 78 mm

Dim: (W x D) 60 mm x 78 mm

Power supply (LOV): rechargeable

Product type: Power failure alarm

Documents & Downloads

Datasheet

Datasheet 3734041 H-Tronic 1114800 Power failure alarm rechargeable Volume 80 dB

User & Safety Instructions

User & Safety Instructions 3734041 H-Tronic 1114800 Power failure alarm rechargeable Volume 80 dB

Description

The power failure alarm PFD 230 reliably monitors the mains voltage between the socket and the connected consumer (e.g. refrigerator). In the event of a power failure, the PFD 230 informs you immediately about an optical and acoustic alarm and thus protects against possible damage Thanks to the integrated battery the alarm remains active for up to 24 hours - even after longer power failure.

This text is machine translated.

Scope of delivery

Power failure indicator PFD 230
User manual German / English
