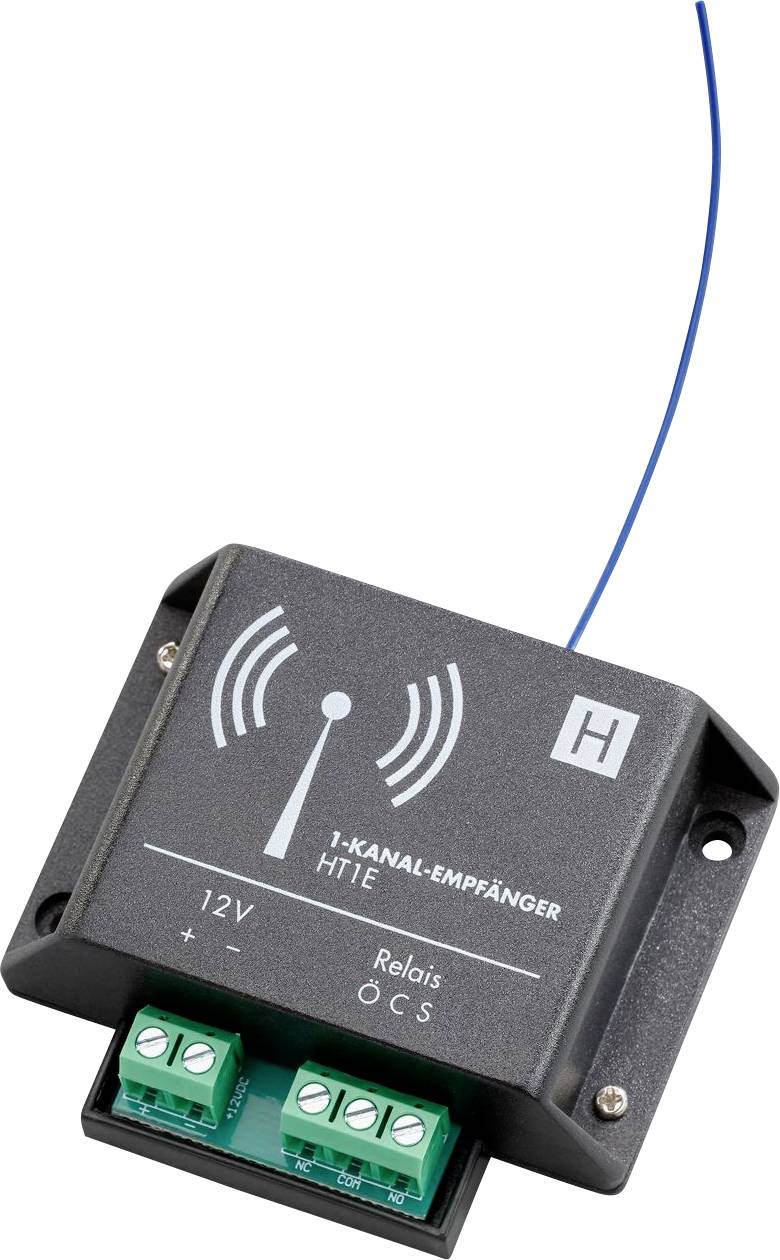

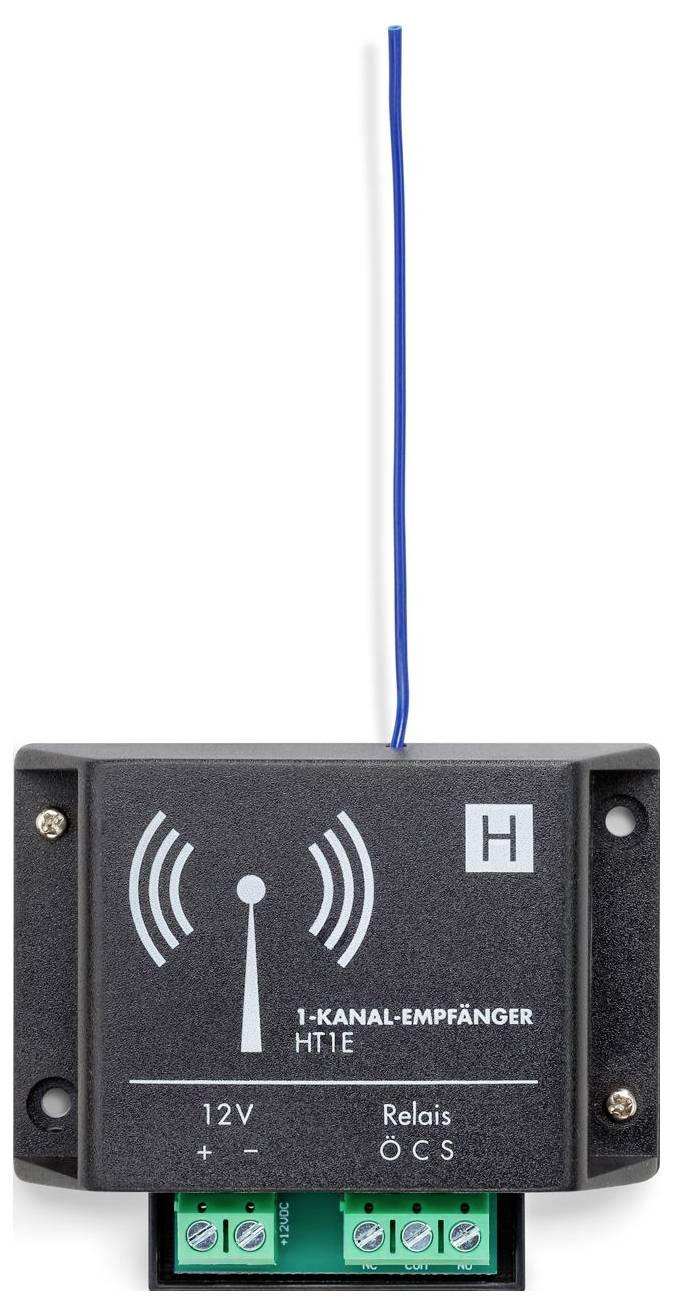

H-Tronic HT1E Wireless receiver 1-channel Frequency 868.35 MHz 12 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 27.72
3
4% = € 1.08
€ 26.64
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 27.72 / piece)
€ 27.72
plus VAT.
Highlights & Details
H-Tronic HT1E Wireless receiver 1-channel Frequency 868.35 MHz 12 V DC
- Momentary or latching function
- Safety encoding "Rolling Code", the highest security standards
- Data is retained even in case of power failure
Technical specifications
- Delay time of the relay: 200 ms
- Switching power: 230 V/5 A or 24 VDC/5 A
- Product type
Wireless receiver
- Frequency
868.35 MHz
- Transfer Standard (Smart Home)
FSK 868 MHz
n.rel.
- Data transfer (Smart Home)
Wireless
- Channels
1
- Antenna type
1x built-in
- Operating voltage
12 V DC
- Current consumption
Max. 80 mA
- Width
58 mm
- Height
25 mm
- Length
69 mm
- Dim
(L x W x H) 69 x 58 x 25 mm
- Hub
Not required
- Data exchange
Unidirectional (uni)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1406364 H-Tronic HT1E Wireless receiver 1-channel Frequency 868.35 MHz 12 V DC
Datasheet 1406364 H-Tronic HT1E Wireless receiver 1-channel Frequency 868.35 MHz 12 V DC
User & Safety Instructions
User & Safety Instructions 1406364 H-Tronic HT1E Wireless receiver 1-channel Frequency 868.35 MHz 12 V DC
Conformity certificate
Conformity certificate 1406364 H-Tronic HT1E Wireless receiver 1-channel Frequency 868.35 MHz 12 V DC
Description
The 1-channel receiver HT1E was for a secure and tamper-free remote control. The connection between a transmitter (HT8 S-Conrad No. 1273408 and HT5S-Conrad no. 1273407) and the receiver is recognized by the AES 128-method is encrypted and contains a so-called "Rolling Code", this makes any shipped package to the receiver once and not repeatable. The LEARNABLE receiver enables the operation of up to 32 different transmission keys of different hand-held transmitter of the HT-Series, which can be programd into the receiver at the push of a button.
This text is machine translated.
This text is machine translated.
Features
- Opening and closing of roof and hall windows, awnings
- Control of doors, gates or cabinet systems
- Switching of pumps, air-conditioning and irrigation systems
- Control of electrical, hydraulic and pneumatic systems.
Scope of delivery
- 1-channel receiver HT1E
- User manual.
