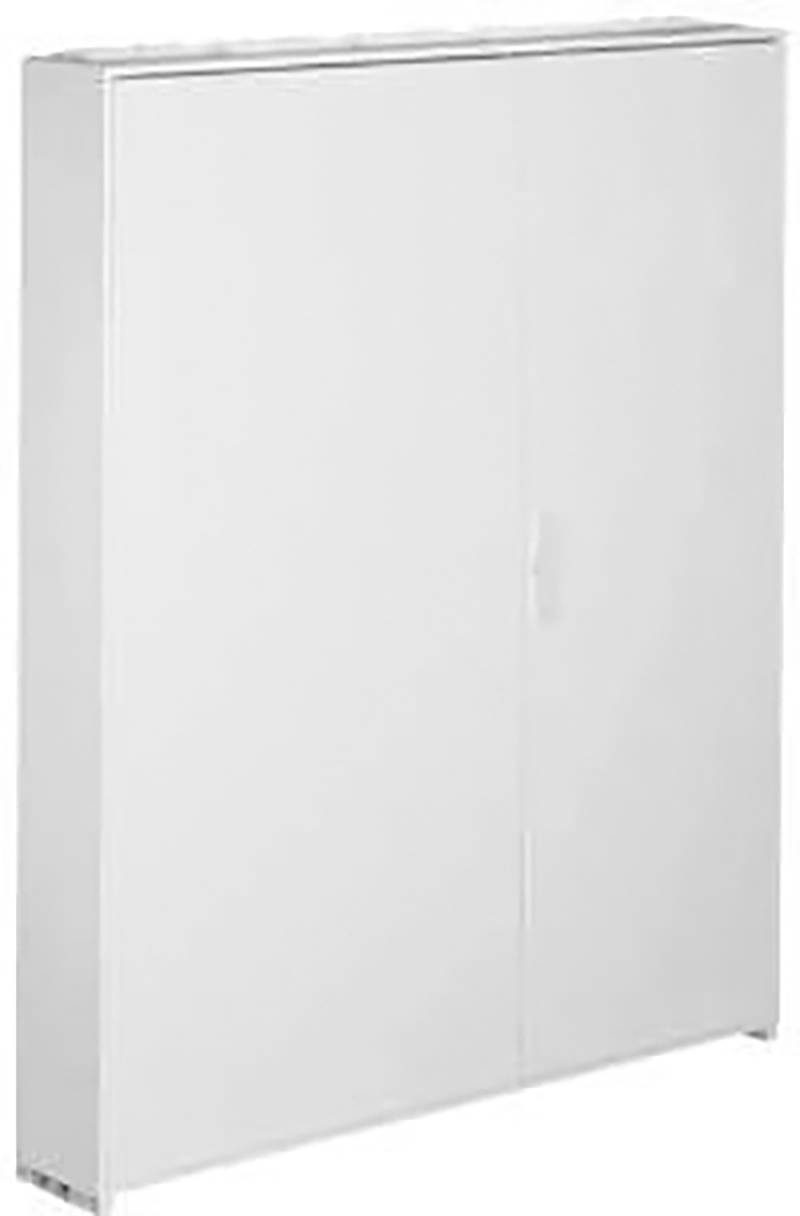

Hager FP23SN2 Switchboard cabinet 800 x 1950 x 205 Steel Pure white (RAL 9010) 1 pc(s) Piece

Cabinet, univers, IP44/II, 1950x800x205mm, empty. Single level distributor for interior mounting with VDE-opinion (production monitoring) according to DIN EN 61439-1/-2/-3 and standard DIN 43870. For installation of a low-voltage distribution up to 400 A, 3AC 230/400 V 50 Hz. Protection type IP44, protection class II, air and tracking distance according to DIN VDE 0110-1/-2. Consisting of cupboard with door made of powder-coated, burned-in, stable profiled 1 mm thick sheet steel, inner lining made of plastic. Through-hole flanges installed on top and open on the bottom, rear-sided knockout in the plastic part and busbar penetrations as double-sided lateral knockout in the lower area. Horizontal retraction rail for stabilization is included in the cabinet. Door flush fitted with inside, adjustable hinges that can be angled either on the right or left with a 110 degree opening angle. Door with bar lock with three-point locking. Base strip (height 100 mm) fitted as standard with removable front panel. Note: Wall and floor mounting necessary! Door lock can be replaced by other locks. Cabinet side by side flange.

This text is machine translated.
