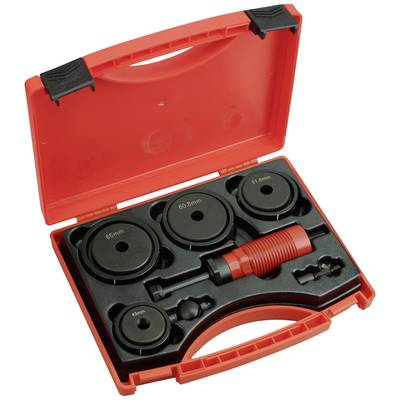

A red toolbox with various round drill crowns and a red handle, suitable for working with materials.

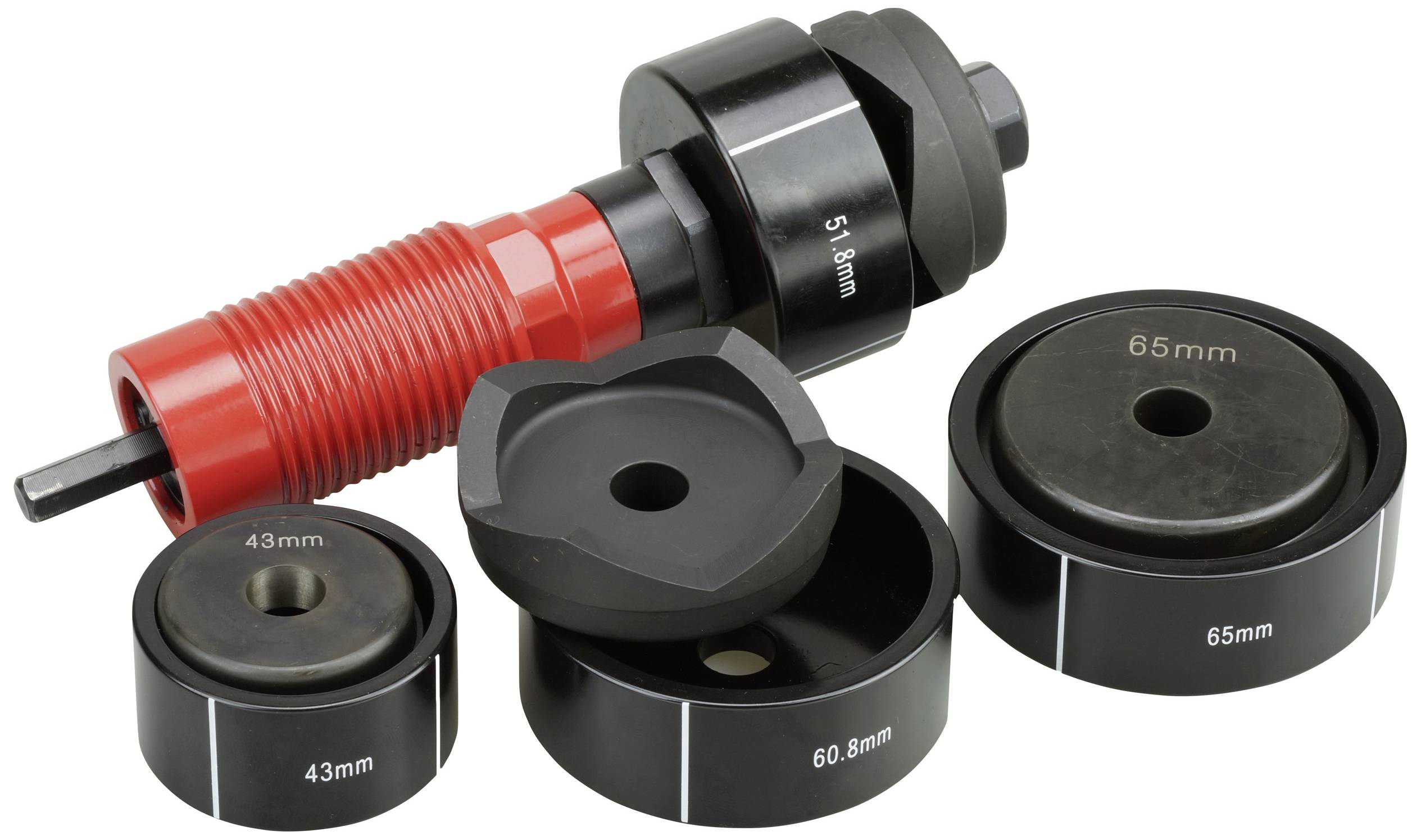

'Cable Stripping Set with five round attachments in various sizes. Includes a red and black handle, marked with numbers.'

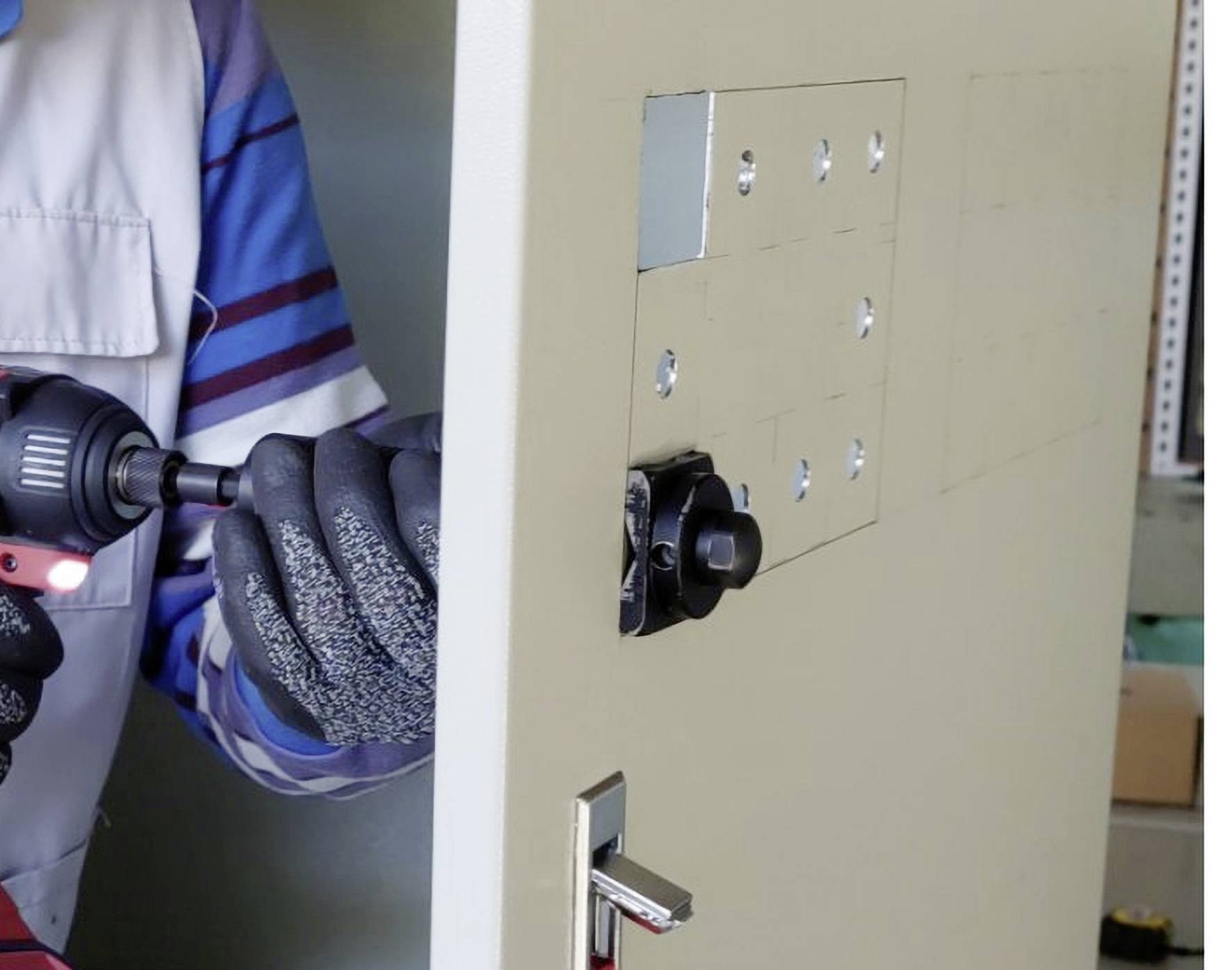

A tradesman is installing a new security lock in a metal door. He is using a cordless drill driver. He is wearing work gloves.

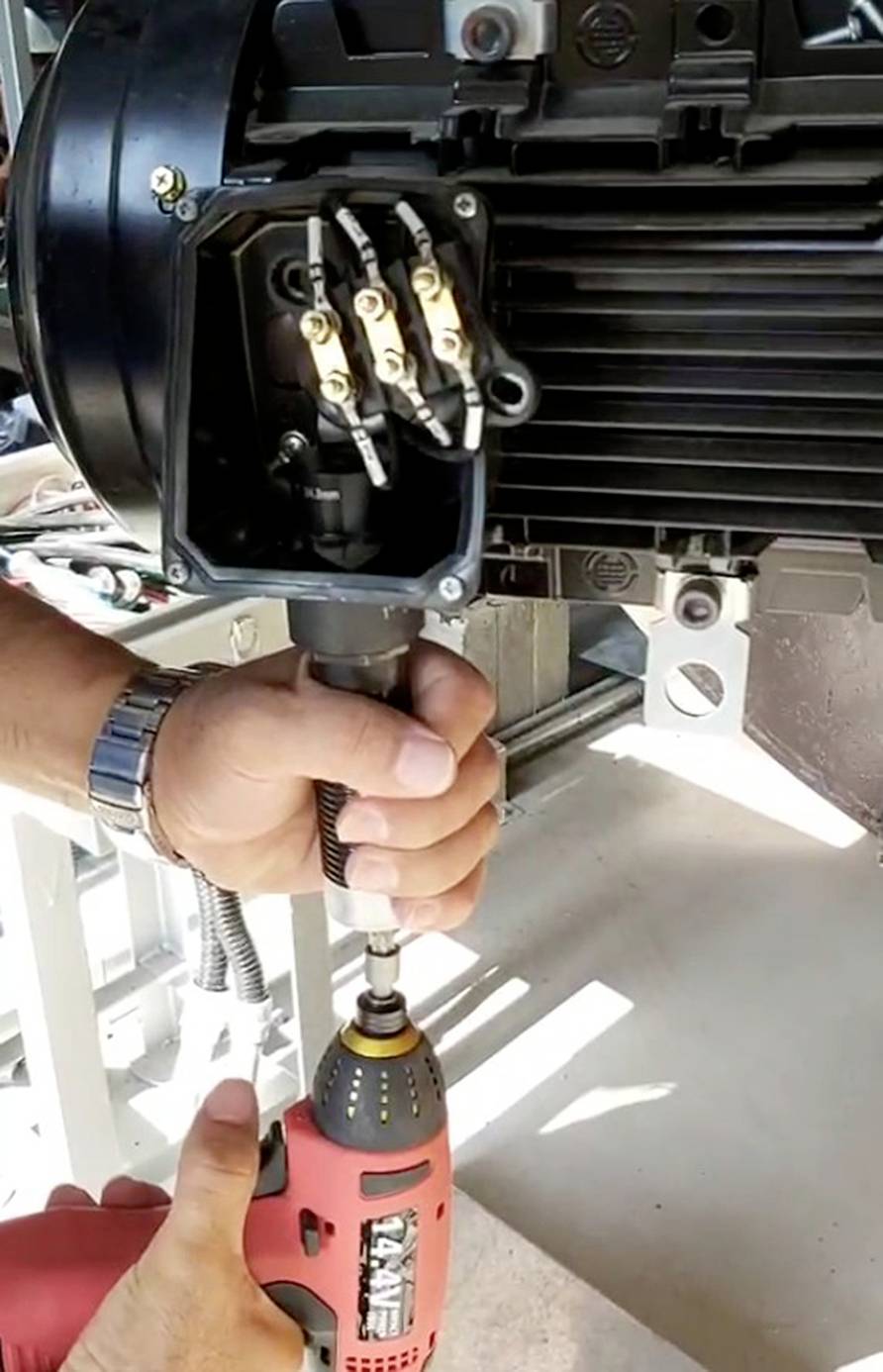

A person is using a red cordless drill to work on an open electric motor. Cables and connections are visible.

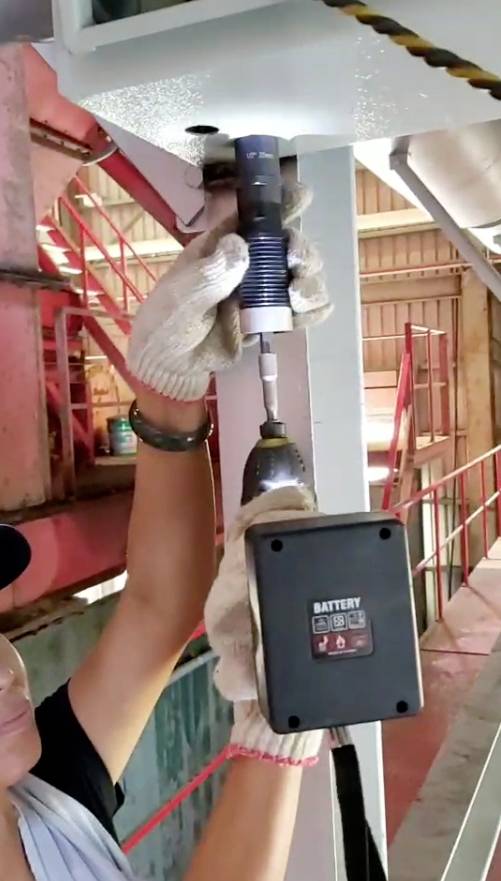

A person is mounting a metal part with a cordless drill beneath a beam in a workshop environment. They are wearing protective gloves.

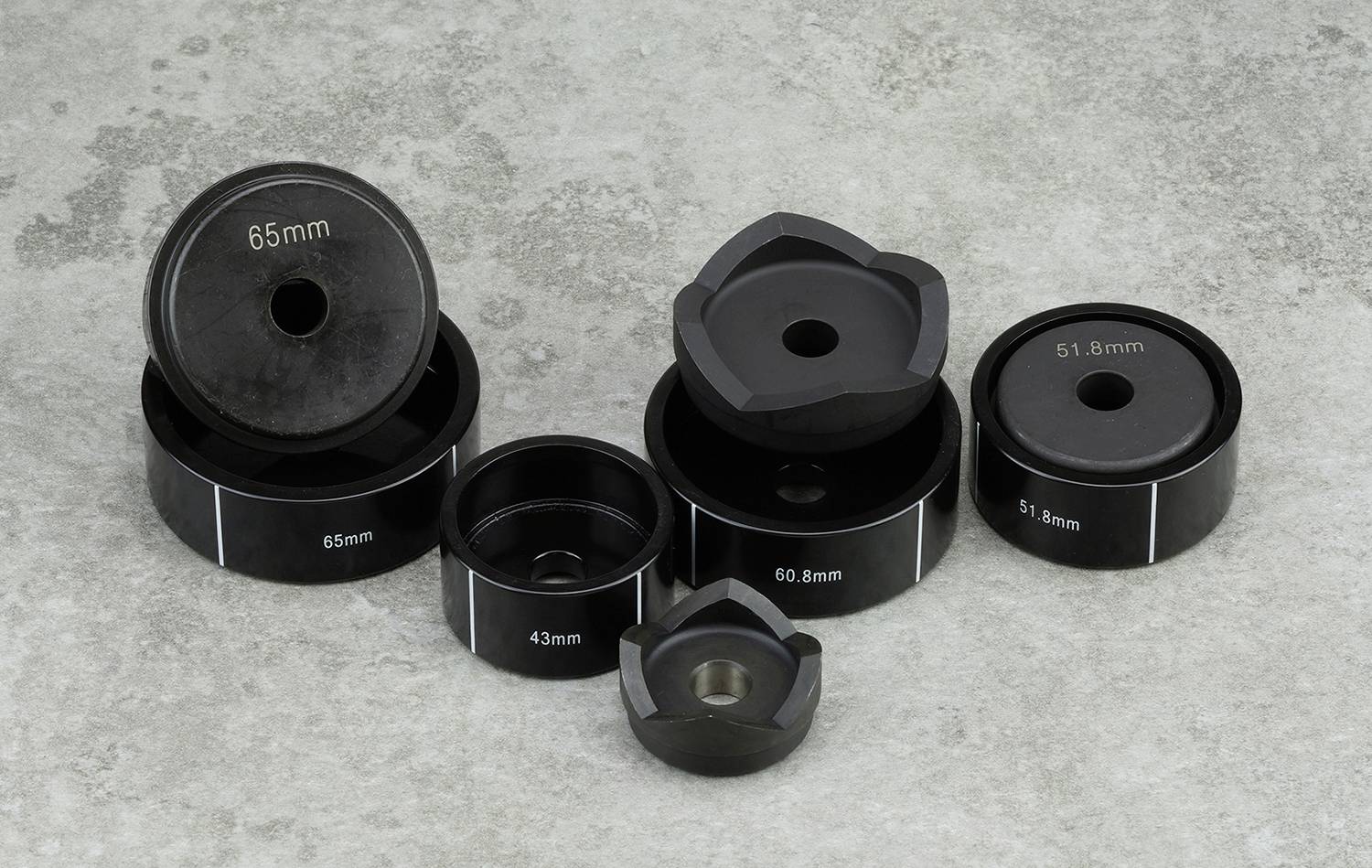

Several black metal cylinders of varying sizes with milled millimetre markings, arranged on a grey concrete floor.

1/6

Our service for you

64 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Set(s)

Total (€ 205.87 / piece)

€

Report legal concerns

Highlights & Details

Toolcraft Knockout Punch Set (Round Hole)

Using an impact wrench instead of the traditional wrench or hydraulic machine, more cost efficiency and convenient to use
With compact storage box
Safety punch for perfect and clean round holes without burrs

Technical specifications

Punching forms Ø43、51.8、60.8、and 65mm
Material SKD-61
Ø12,3mm Bearing drive bolt with 19mm adjusting nut
Bolts SCM-415
Aluminium alloy casing ADC-12
Adapter: 1/4" hex shaft, 8*L45mm
PS-inset (1,45mmT) + PP-box
Cutting capacity up to max. 1.2 mm rust-free steel, 1.6 mm construction steel

Material: Aluminium alloy

Material properties: SKD61 steel

Length: 260 mm

Width: 209 mm

Height: 52 mm

Weight: 2.7 kg

Dim: (L x W x H) 260 x 209 x 52 mm

Range of uses: Cordless impact driver

Plastic free packaging: Plastic-free packaging

Product type: Punches

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3203427 TOOLCRAFT TO-9610281 Punches Ø43-65mm

Warranty Terms

Warranty Terms 3203427 TOOLCRAFT TO-9610281 Punches Ø43-65mm

Description

A perfect punch for clean round holes without burrs. The punching tools are provided with cutting angles that allow less effort to be applied to the cuts. Ideal for cutting switch boxes, panels and steel plates etc. All matrices have laser-engraved alignment marks for easy and precise positioning.
Ideal used with a 14.4V impact wrench (torque range 120~150nm).
