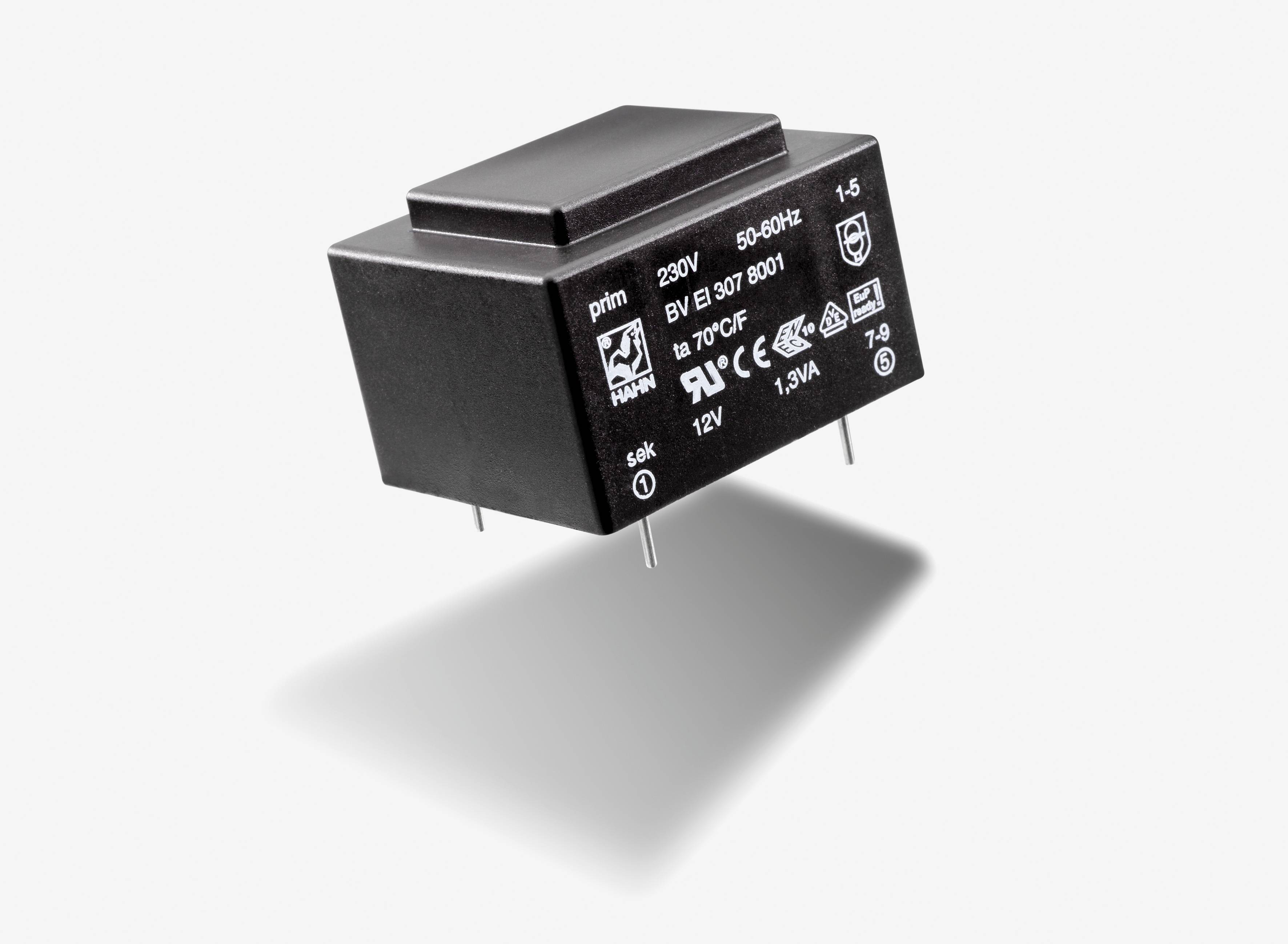

Image similar
Hahn BV EI 306 8003 PCB mount transformer 1 x 230 V 1 x 12 V AC 2.8 VA 233 mA
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 16.99 / piece)
€ 16.99
incl. VAT
Only 1 Piece(s) available
Highlights & Details
Transformer/ Transformer P: 230V S:12V/2.8VA
- 1 x 230 V
- 1 x 12 V AC
- 233 mA
- 2.8 VA
Technical specifications
- Product type
PCB mount transformer
- Output voltage
12 V AC
- Output voltage (number x voltage)
1 x 12 V AC
- Output current
233 mA
- No. of inputs
1 x
- No. of outputs
1 x
- Input voltage
230 V
- Input voltage (number x voltage)
1 x 230 V
2.8 VA
- Width
27.50 mm
- Height
34 mm
- Length
32.50 mm
- Type
BV EI 306 8003
- Dim
(L x W x H) 32.50 x 27.50 x 34 mm
- Frequency
50 - 60 Hz
- Content
1 pc(s)
- RoHS-compliant
Yes
- Max. ambient temperature
70 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3135740 Hahn BV EI 306 8003 PCB mount transformer 1 x 230 V 1 x 12 V AC 2.8 VA 233 mA
User & Safety Instructions
User & Safety Instructions 3135740 Hahn BV EI 306 8003 PCB mount transformer 1 x 230 V 1 x 12 V AC 2.8 VA 233 mA
Description
Several 100 types are synonymous with high safety and durability when used on printed circuit boards, in household appliances, in entertainment electronics, heating and regulation technology as well as in the assembly industry. Transformers for special requirements with low no-load capacity are also included in the delivery program.
This text is machine translated.
This text is machine translated.
Features
- Circuit breaker
- Vacuum cast, two-chamber winding
- 100% routine testing
- Excellent temperature change characteristics
- Self-extinguishing sealing and hood material
- Minimum size
