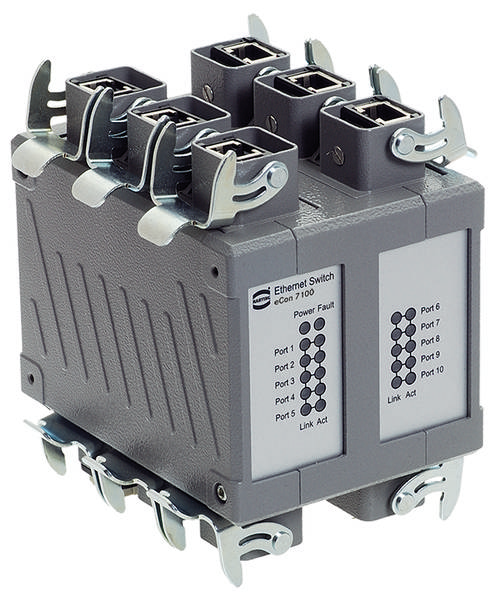

Name: HARTING 20703103924 20 70 310 3924 Industrial Ethernet switch 1000 MBit/s
Brand: HARTING
SKU: 3000758

'Welcome' in decorative lettering on a black background. Interior design or event welcomes visitors.

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Ha-VIS ECON 7000 series
Component: Industrial Ethernet switches
Connection type: HAN® 3 A push-in
Number of contacts: 4
Standards: EN 55022 radio interference characteristics; EN 61000-4-2 electrostatic discharge (ESD); EN 61000-4-3 electromagnetic field; EN 61000-4-4 fast transient (burst); EN 61000-4-5 overvoltage (surge); EN 61000-4-6 conductive disturbance variables; EN 61000-6-4 emitted interference; IEC 60068-2-6 vibration (sinusoidal)
Net weight: 1,400 g
Notes: 2 Gigabit ports
Data rate: ‌ 10 Mbit/s;‌ 100 Mbit/s;‌ 1,000 Mbit/s.
Description: Unmanaged
Storage temperature: -40 ... +85 °C
Relative humidity: 10 ... 95 % non-condensing (operation);10 ... 95% non-condensing (storage/transport)
Protection class according to IEC 60529: IP65 when connected;IP67 when connected
Material housing: Zinc-Druckguss
Surface of housing: Powder-coated
Mounting: Wall mounting vertical;35 mm DIN rail according to EN 60715
Operating temperature: -40 ... +70 °C
Permissible voltage: 12 ... 60 V DC
Ethernet type: Gigabit Ethernet
Total number of ports: 10
Switch technology: Store and forward
Frame size: 1.632 kB
MAC table size: 8k entries
Packet buffer size: 1 megabit
Non-blocking: Yes
Quality of Service: Yes
Flow control: Off
Message contact: No.
PoE functionality: No.
Painted PCB: Yes
Nom. voltage: 24 V DC/48 V DC
Voltage surge protection: Yes
Operating current <230 mA @ 24 VDC
SELV (Circuit Breaker 10 A)
Pinout: + / - / - / +
Reverse polarity protection: Yes
Air pressure: ≥795 hPa ≈ 2000 m
TRANSFER STANDARD 10BASE-T;100BASE-TX;1000BASE-T.
Auto negotiation: Yes
Auto polarity: Yes
Auto MDI(X): Yes
Transmission Physics: Twisted Pair Cat. 5
Transfer length: 100 m
Length 120 mm.
Width 90 mm
Height: 87 mm
10/100 Mbit/s (RJ45 ports): 10
10/100/1000 Mbit/s (RJ45 ports): 2

Product type: Industrial Ethernet switch

LAN transfer rate: 1000 MBit/s

Transfer rate: 1000 MBit/s

Working principle: Unmanaged switch

Ethernet ports: 10

No. of 100 Mbps/1Gbps/10Gbps ports: 10 x

10/100 Mbps ports: 10 x

10/100/1000 Mbps ports: 2 x

Auto-uplink at each port: Yes

Jumbo frames: Yes

MAC addresses: 8000

Weight: 1.4 g

Width: 90 mm

Height: 87 mm

Depth: 120 mm

Type: 20 70 310 3924

Interfaces: RJ45

: IP65
IP67

Operating voltage: 24 V DC
48 V DC

Max. ambient temperature: 70 °C

Min. ambient temperature: -40 °C

: DIN rail (top hat rail)

: TRUE

: TRUE

: FALSE

: FALSE

: IP65

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3000758 HARTING 20703103924 20 70 310 3924 Industrial Ethernet switch 1000 MBit/s

User & Safety Instructions

User & Safety Instructions 3000758 HARTING 20703103924 20 70 310 3924 Industrial Ethernet switch 1000 MBit/s

Description

Industrial Ethernet switches, unmanaged, gigabit Ethernet, nominal voltage 24, 48, Total number of ports: 10, Operating temperature: -40 ... +70 °C

This text is machine translated.

Description

Industrial Ethernet switches, unmanaged, gigabit Ethernet, nominal voltage 24, 48, Total number of ports: 10, Operating temperature: -40 ... +70 °C
