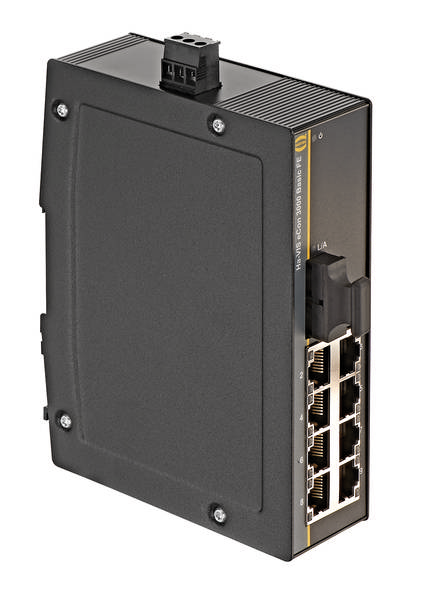

HARTING 24030081200 24 03 008 1200 Industrial Ethernet switch 100 MBit/s
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Ha-VIS ECON 3000 series
- Component: Industrial Ethernet switches
- Connection type: SC duplex;socket
- Number of contacts: 3
- Standards: EN 55022 radio interference characteristics; EN 61000-4-2 electrostatic discharge (ESD); EN 61000-4-3 electromagnetic field; EN 61000-4-4 fast transient (burst); EN 61000-4-5 overvoltage (surge); EN 61000-4-6 conductive disturbance variables; EN 61000-6-4 emitted interference; IEC 60068-2-6 vibration (sinusoidal); IEEE 802.3
- Net weight: 514 g
- Data rate 100 Mbit/s.
- Conductor cross-section: AWG 28 ... AWG 12
- Description: Unmanaged
- Storage temperature: -40 ... +85 °C
- Relative humidity: 0 ... 95 % non-condensing (operation);0 ... 95% non-condensing (storage/transport)
- Protection class according to IEC 60529:IP30 when connected
- Approvals DNV GL
- Material housing: Aluminium (anodized);Sheet steel (powder-coated)
- Mounting:35 mm DIN rail according to EN 60715
- Operating temperature: -40 ... +70 °C
- MTBF ≈ 940,000 h
- Permissible voltage: 9 ... 60 V DC
- Ethernet type: Fast Ethernet
- Total number of ports: 9
- Switch technology: Store and forward
- Frame size: 1.632 kB
- MAC table size: 2k entries
- Packet buffer size: 1 megabit
- Non-blocking: Yes
- Quality of Service: Yes
- Flow control: Off
- Message contact: No.
- PoE functionality: No.
- Nom. voltage: 24 V DC/48 V DC
- Voltage surge protection: Yes
- Operating current <227 mA @ 24 VDC;<117 mA @ 48 VDC
- SELV (Circuit Breaker 10 A)
- POWER CONSUMPTION <5.76 W @ 24 V DC
- Pinout + / - / FE
- Reverse polarity protection: Yes
- Air pressure: ≥795 hPa ≈ 2000 m
- Transmission standard 100BASE-FX
- Auto negotiation: Yes
- Auto polarity: Yes
- Auto MDI(X): Yes
- Transmission physics: Fibre optic cable
- Transfer length: 15 km
- Length: 107.5 mm.
- Width 38 mm
- Height: 142 mm
- FCC: Yes
- INRUSH CURRENT <1.6 A @ 24 V DC;<3.2 A @ 48 V DC
- Overcurrent protection: 2 A at the input
- 10/100 Mbit/s (RJ45 ports): 8
- Energy Efficient Ethernet: Yes
- Fibre type: Single mode
- Wavelength 1,310 nm
- Output power: -15 ... -8 dBm
- Input power -34
- 100 Mbit/s (SC ports) 1
- Product type
Industrial Ethernet switch
- LAN transfer rate
100 MBit/s
- Transfer rate
100 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
9
- 10/100 Mbps ports
9 x
- Fibre-optic ports
1
- Auto-uplink at each port
Yes
- MAC addresses
2000
- Weight
514 g
- Width
38 mm
- Height
142 mm
- Depth
107.5 mm
- Type
24 03 008 1200
- Interfaces
RJ45
IP30
- Operating voltage
24 V DC
48 V DC
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-40 °C
DIN rail (top hat rail)
TRUE
TRUE
FALSE
FALSE
IP30
Documents & Downloads
Datasheet
Datasheet 3000657 HARTING 24030081200 24 03 008 1200 Industrial Ethernet switch 100 MBit/s
User & Safety Instructions
User & Safety Instructions 3000657 HARTING 24030081200 24 03 008 1200 Industrial Ethernet switch 100 MBit/s
Description
Industrial Ethernet switches, unmanaged, fast Ethernet, nominal voltage 24, 48, Total number of ports: 9, Operating temperature: -40 ... +70 °C
