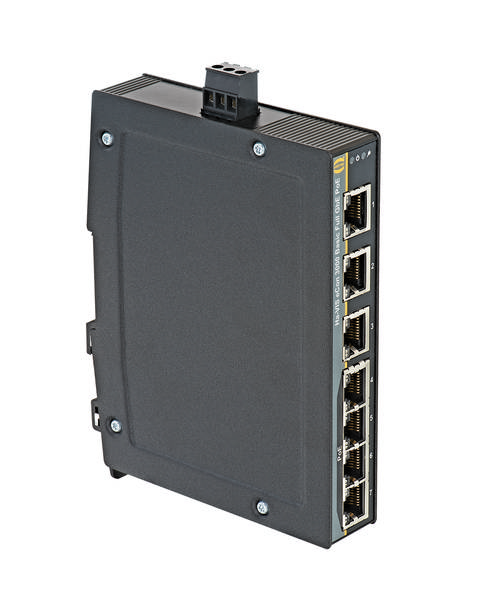

HARTING 24034070030 24 03 407 0030 Industrial Ethernet switch 1000 MBit/s PoE
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Ha-VIS ECON 3000 series
- Component: Industrial Ethernet switches
- Connection type: Pluggable screw contact
- Number of contacts: 3
- Standards: EN 55022 radio interference characteristics; EN 61000-4-2 electrostatic discharge (ESD); EN 61000-4-3 electromagnetic field; EN 61000-4-4 fast transient (burst); EN 61000-4-5 overvoltage (surge); EN 61000-4-6 conductive disturbance variables; EN 61000-6-4 emitted interference; IEC 60068-2-6 vibration (sinusoidal)
- Net weight: 531 g
- Data rate: 10 Mbit/s; 100 Mbit/s; 1,000 Mbit/s.
- Conductor cross-section: AWG 28 ... AWG 12
- Description: Unmanaged
- Storage temperature: -40 ... +85 °C
- Relative humidity: 0 ... 95 % non-condensing (operation);0 ... 95% non-condensing (storage/transport)
- Protection class according to IEC 60529:IP30 when connected
- Approvals DNV GL
- Material housing: Aluminium (anodized);Sheet steel (powder-coated)
- Mounting:35 mm DIN rail according to EN 60715
- Operating temperature: 0 ... +55 °C
- MTBF ≈ 630,000 h
- Permissible voltage: 44 ... 57 V DC
- Ethernet type: Full gigabit Ethernet
- Total number of ports: 7
- Switch technology: Store and forward
- Frame size: 10 kB
- MAC table size: 8k entries
- Packet buffer size: 1 megabit
- Non-blocking: Yes
- Quality of Service: Yes
- Flow control: Off
- Message contact: No.
- PoE functionality: Yes
- Nom. voltage: 48 V DC/54 V DC
- Voltage surge protection: Yes
- Operating current <1,400 mA @ 48 VDC;<2,390 mA @ 54 VDC
- SELV (Circuit Breaker 10 A)
- POWER CONSUMPTION: <71.1 W @ 48 V DC;<141.4 W @ 54 V DC
- Pinout: Alternative A, MDI-X (1/2 : V-, 3/6 : V+)
- Reverse polarity protection: Yes
- Air pressure: ≥795 hPa ≈ 2000 m
- 10BASE-TE; 100BASE-TX EEE; 1000BASE-T EEE
- Auto negotiation: Yes
- Auto polarity: Yes
- Auto MDI(X): Yes
- Transmission Physics: Twisted Pair Cat. 5
- Transfer length: 100 m
- Length: 107.5 mm.
- Width: 25 mm
- Height: 142 mm
- FCC: Yes
- Jumbo frame support: Yes
- INRUSH CURRENT <6.4 A @ 48 V DC;<7.2 A @ 54 V DC
- Overcurrent protection: 12 A at the input
- 10/100/1000 Mbit/s (RJ45 ports): 7
- Energy Efficient Ethernet: Yes
- Ethernet ports PoE 4
- PoE type PSE
- Supported PoE mode: Alternative A
- IEEE 802.3af IEEE 802.3at standard
- SUPPLY VOLTAGE PSE: 48 V DC;54 V DC
- Power output total PSE: ≤ 61.6 W;≤ 136.8 W
- Output power PSE per port: ≤ 15.4 W;≤ 34.2 W
- Current per port: ≤ 375 mA;≤ 638 mA
- Supported cabling: See IEEE 802.3at, Section 33.1.4
- Product type
Industrial Ethernet switch
- LAN transfer rate
1000 MBit/s
- Transfer rate
1000 MBit/s
- Working principle
Unmanaged switch
- Ethernet ports
7
- IEEE 802.3af PoE
4
- PoE ports
4
- No. of 100 Mbps/1Gbps/10Gbps ports
7 x
- 10/100 Mbps ports
7 x
- 10/100/1000 Mbps ports
7 x
- Auto-uplink at each port
Yes
- Jumbo frames
Yes
- Router features
PoE
- MAC addresses
8000
- Weight
531 g
- Width
25 mm
- Height
142 mm
- Depth
107.5 mm
- Type
24 03 407 0030
- Interfaces
RJ45
IP30
- Operating voltage
48 V DC
54 V DC
- Max. ambient temperature
55 °C
- Min. ambient temperature
0 °C
DIN rail (top hat rail)
TRUE
TRUE
FALSE
FALSE
IP30
Documents & Downloads
Datasheet
Datasheet 3000697 HARTING 24034070030 24 03 407 0030 Industrial Ethernet switch 1000 MBit/s PoE
User & Safety Instructions
User & Safety Instructions 3000697 HARTING 24034070030 24 03 407 0030 Industrial Ethernet switch 1000 MBit/s PoE
Description
Industrial Ethernet switches, unmanaged, full gigabit Ethernet, nominal voltage 24, 48, 54, total number of ports: 7, operating temperature: 0 ... +55 °C
This text is machine translated.
This text is machine translated.
