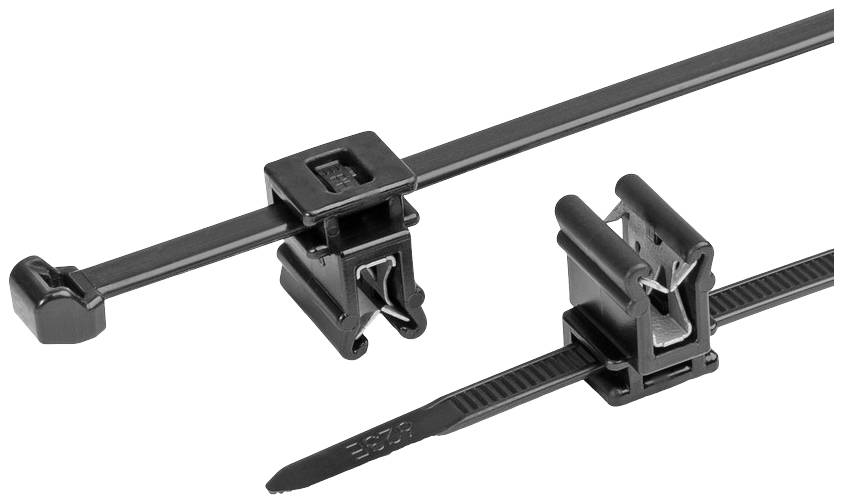

HellermannTyton 156-00948 T50ROSEC4A-PA66W-BK (100) Cable tie with clip 200 mm 4.6 mm Black 100 pc(s)
EAN:
Part number:
Item no:
Product type
Cable tie with clip
Content
100 pc(s)
Cable tie length
200 mm
Cable tie width
4.6 mm
Material
Polyamide 6.6
Number (Package size 100 pc(s))
Total (€ 0.45 / piece)
€ 45.37
plus VAT.
Technical specifications
- Product type
Cable tie with clip
- Content
100 pc(s)
- Factory colour
Black
- Cable tie length
200 mm
- Cable tie width
4.6 mm
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Halogen-free
Yes
- Material
Polyamide 6.6
- Max. sheet thickness
3 mm
- Min. sheet thickness
1 mm
- Fire protection properties
UL94 V2.
- Max. bundle diameter
45 mm
- Manufacturer part #
156-00948
- Minimum holding force
225 N
- Type
T50ROSEC4A-PA66W-BK (100)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2917453 HellermannTyton 156-00948 T50ROSEC4A-PA66W-BK (100) Cable tie with clip 200 mm 4.6 mm Black 100 pc(s)
Description
Elements of the EdgeClip series are a very good alternative wherever holes and welding bolts cannot be drilled and glue cannot be used due to higher temperatures. The EdgeClip family is widely used for bundling and securing cable harnesses and hoses in the automotive, construction and electrical industries as well as in harness manufacturing.
This text is machine translated.
This text is machine translated.
Features
- 2-part cable tie with EdgeClip, pre-assembled
- The head of the tie can be brought into the optimum bundling position
- Type EC9, EC10, EC21 and EC22 for bundle diameters from 1 mm
- For edges from 1 - 3 mm
