HellermannTyton 156-04096 SGT100SAHD6.5S2.0-PA66HS/TPE/PA66HS-BK/B Cable tie 12.7 mm Black/blue 1 pc(s)

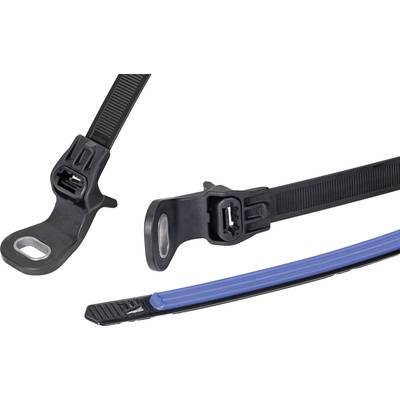

Three cable clips in black and blue. Two have different connection types and sizes, one is marked with a blue stripe.
Product type
Cable tie
Content
1 pc(s)
Cable tie width
12.7 mm
Cable tie features
Screw base
Coated
Spring toggle and disc
Material
Polyamide
EAN:
Part number:
Item no:
Fast track dispatch on Wed 28 Oct
26 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 4.29 / piece)
€ 4.29
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Soft Grip cable tie

  • Pre-mounted 2-part mounting tieFor fixing bolts/screws on holesDirt and splash water repellentWith plate and expanding anchorFor round holesTwo-component with soft surface on the bundleRubberized surface prevents lateral shifting of the bundle goodsMounting without tools

Technical specifications

Product type

Cable tie

Content

1 pc(s)

Factory colour

Black/blue

Cable tie width

12.7 mm

Cable tie features

Screw base

Coated

Spring toggle and disc

Material

Polyamide

Max. bundle diameter

25.4 mm

Manufacturer part #

156-04096

Minimum holding force

445 N

Mounting Ø (max.)

25.4 mm

Mounting Ø (min.)

5 mm

Width

12.7 mm

Type

SGT100SAHD6.5S2.0-PA66HS/TPE/PA66HS-BK/B

UKCA

not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2625558 HellermannTyton 156-04096 SGT100SAHD6.5S2.0-PA66HS/TPE/PA66HS-BK/B Cable tie 12.7 mm Black/blue 1 pc(s)

Description

These fixing binders are used at all places, where rational working is required together with high holding forces. They are used, among other things, in the automotive sector and everywhere where cables are to be routed safely.

This text is machine translated.

Features

  • Socket: For screw fixing Thread size M6Min. tensile strength 445 N Cable tie: Width 12.7 mm bundle diameter 5 - 25.4 mm Material: Polyamide 66HS + TPE

Hints

The versatile combinations offer a variety of flexible mounting options for liquid management / cooling systems in vehicles. The base parts of the brackets can be adapted to individual customer requirements. In case of maintenance, the cable tie can be easily removed with a screwdriver. Only the cable tie must be replaced, not the entire mounting element.
