Name: HELU 21006-1000 Data transfer cable LiYCY 6 x 2 x 0.14 mm² Grey 1000 m
Brand: HELU
SKU: 3040073

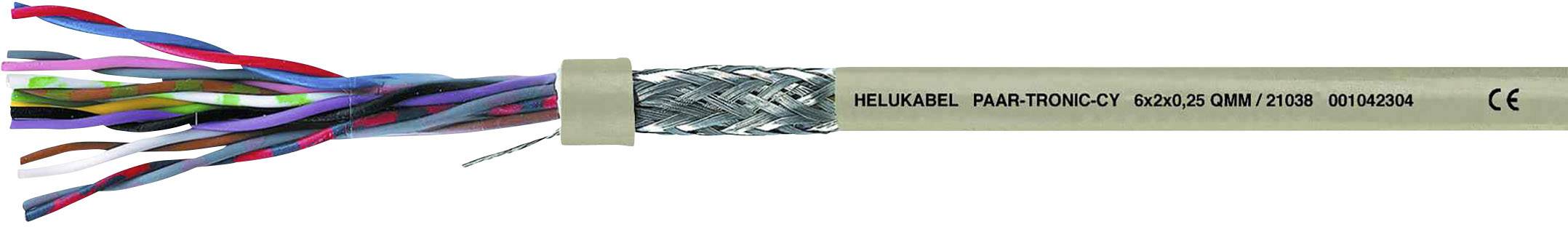

Screened data cable with coloured wire pairs and 'HELUKABEL' marking along with CE marking on the outer sheath.

Image similar

Product type

Data transfer cable

No. of leads

12 x

Cross section (each core)

0.14 mm²

Cable features

PVC coating

Flexible

incl. graduation (metres)

Flame-retardant

largely oil-resistant

Shielded

Cable type

LiYCY

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Data transfer cable

Cable type: LiYCY

No. of leads: 12 x

Cross section (each core): 0.14 mm²

Twisted pair cabling (part 1): Yes (1)

Cross section: 6 x 2 x 0.14 mm²

Cable features: PVC coating
Flexible
incl. graduation (metres)
Flame-retardant
largely oil-resistant
Shielded

Outside Ø: 7.20 mm

Factory colour: Grey

Content: 1000 m

Test voltage: Wire/wire 1200 V
Wire/shield 800 V

Bend radius (no. of ODs for fixed installation): 5

Bend radius (no. of ODs for flexible installation): 10

Packaged: Yes

Sold per metre: No

Halogen-free: No

Shielded: Yes

Manufacturer part #: 21006-1000

Insulation material: PVC

Wire ID code: DIN 47100

Core layout: Plain Cu braid, class 5, fine wire from 0.5 mm2. 0.14 mm² = 18x0.1 mm. 0.25 mm² = 14x0.15 mm. 0.34 mm² = 7x0.25 mm

RoHS-compliant: Yes

Min. temperature range (flexible installation): -5 °C

Max. temperature range (flexible installation): +80 °C

Min. temperature range (fixed installation): -30 °C

Max. temperature range (fixed installation): +80 °C

Certification marks: In accordance with DIN VDE 0812 and 0814;EAC

Peak operating voltage: 350 V

Type: 21006-1000
