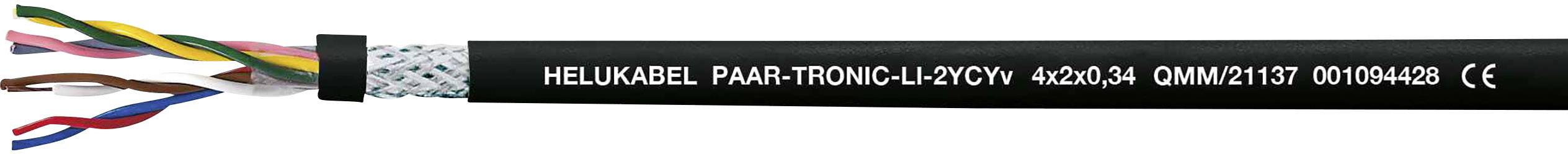

Image similar
HELU 21148-500 Data transfer cable Li-2YCYv 4 x 2 x 1 mm² Black 500 m
Product type
Data transfer cable
No. of leads
8 x
Cross section (each core)
1 mm²
Cable features
PVC coating
Low-capacitance
Flame-retardant
incl. graduation (metres)
Shielded
Cable type
Li-2YCYv
EAN:
Part number:
Item no:
Technical specifications
- Termi-Point-capability = registered trademark of the company AMP
- Product type
Data transfer cable
- Cable type
Li-2YCYv
- No. of leads
8 x
- Cross section (each core)
1 mm²
- Twisted pair cabling (part 1)
Yes (1)
- Cross section
4 x 2 x 1 mm²
- Cable features
PVC coating
Low-capacitance
Flame-retardant
incl. graduation (metres)
Shielded
- Outside Ø
12.00 mm
- Factory colour
Black
- Content
500 m
- Test voltage
Wire/wire 2000 V
Wire/shield 1000 V
- Bend radius (no. of ODs for fixed installation)
7.5
- Bend radius (no. of ODs for flexible installation)
12
- Packaged
Yes
- Sold per metre
No
- Halogen-free
No
- Shielded
Yes
- Manufacturer part #
21148-500
- Insulation material
PE
- Wire ID code
DIN 47100
- Core layout
Blank Cu braid following DIN VDE 0881, suitable for insulation displacement and Termi-Point technology, 7x0.42mm
- RoHS-compliant
Yes
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (flexible installation)
+70 °C
- Min. temperature range (fixed installation)
-30 °C
- Max. temperature range (fixed installation)
+80 °C
- Certification marks
EAC
- Peak operating voltage
250 V
- Type
21148-500
