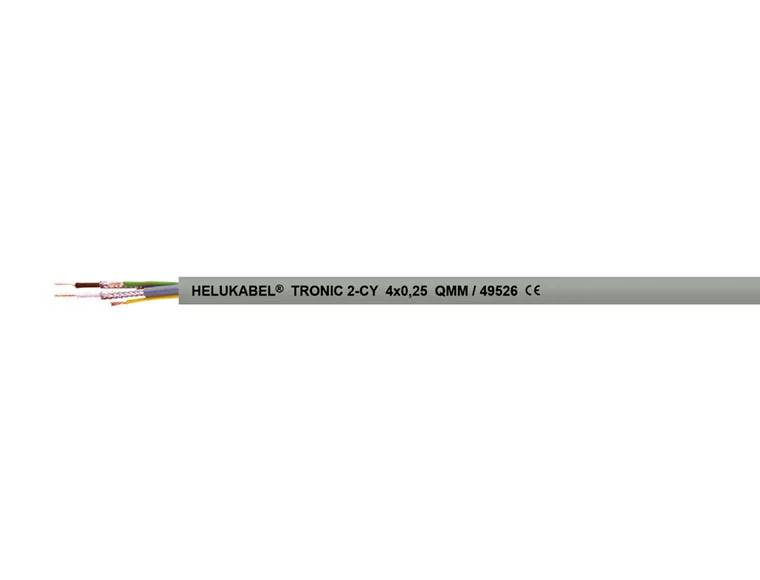

HELU 49526-100 Data transfer cable 4 x 0.25 mm² Grey 100 m
Product type
Data transfer cable
No. of leads
4 x
Cross section (each core)
0.25 mm²
Cable features
Shielded
Flame-retardant
Cross section
4 x 0.25 mm²
EAN:
Part number:
Item no:
Technical specifications
- Weight 60 kg/km
- Product type
Data transfer cable
- No. of leads
4 x
- Cross section (each core)
0.25 mm²
- Cross section
4 x 0.25 mm²
- Cable features
Shielded
Flame-retardant
- Outside Ø
6.5 mm
- Factory colour
Grey
- Content
100 m
- Bend radius (no. of ODs for fixed installation)
5
- Bend radius (no. of ODs for flexible installation)
10
- Sold per metre
No
- Shielded
Yes
- Manufacturer part #
49526-100
- Insulation material
PVC
- Wire ID code
Wire identification according to DIN 47100
- Insulation
Special PVC
- Core layout
Cu-strand blank
- RoHS-compliant
Yes
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (flexible installation)
80 °C
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
80 °C
- Max. length sold by the metre
100 m
- Type
TRONIC 2-CY 4x0,25 GR
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2825966 HELU 49526-100 Data transfer cable 4 x 0.25 mm² Grey 100 m
Description
In all areas of measuring, control and regulation technology in which only 2 pulse transmission lines are necessary Users are machine and plant construction, rolling and steel mills, and processors of electronics.
