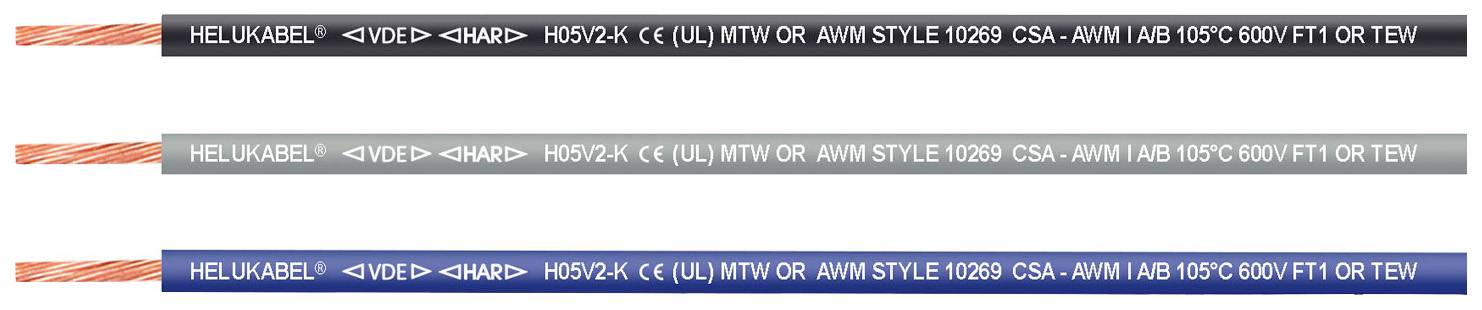

HELU 65429-2000 Wire H05V2-K 1 G 1 mm² Green-yellow 2000 m
Product type
Wire
No. of leads
1 G
Cross section (each core)
1 mm²
Cable type
H05V2-K
Outside Ø
2.80 mm
EAN:
Part number:
Item no:
Technical specifications
- Product type
Wire
- No. of leads
1 G
- Content
2000 m
- Cross section (each core)
1 mm²
- Insulation material
PVC
- Cable features
Flame-retardant
- Cable type
H05V2-K
- Outside Ø
2.80 mm
- Nominal voltage
500 V
- Packaged
Yes
- Manufacturer part #
65429-2000
- Factory colour
Green-yellow
- Core layout
Cu-Litze blank feindrähtig nach DIN VDE 0295 Kl.5, BS 6360 cl.5, IEC 60228 cl.5, gem. UL-Std.758
- Nominal voltage U0
300 V
- Test voltage
2000 V
- Cross section
1 G 1 mm²
- Max. temperature range (flexible installation)
+90 °C
- Min. temperature range (flexible installation)
+5 °C
- Max. temperature range (fixed installation)
+90 °C
- Min. temperature range (fixed installation)
-40 °C
- Type
65429-2000
- Standards
UL;CSA;HAR; MTW;AWM
