Image similar

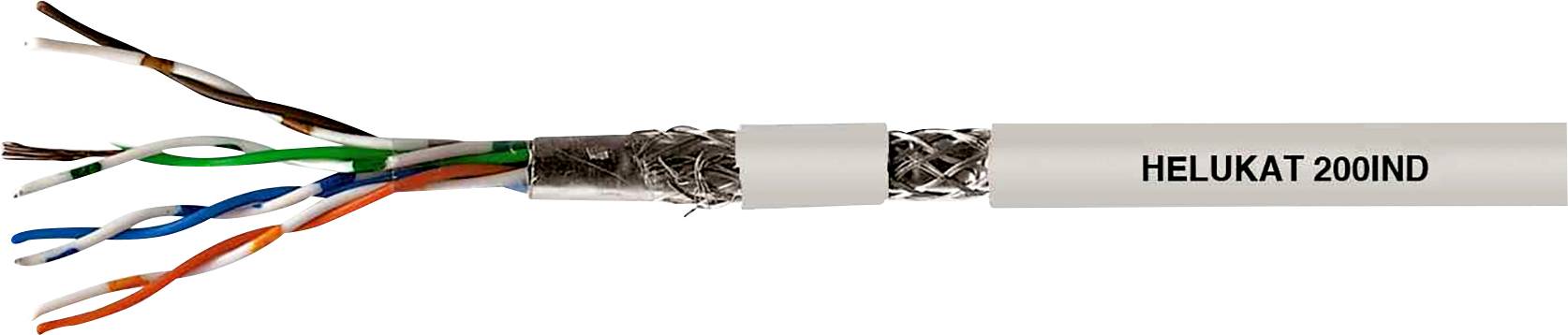

HELU 800068-1000 Bus cable CAT 5 SF/UTP 4 x 2 x 0.14 mm² Grey 1000 m
Product type
Bus cable
Specification
CAT 5
Shielding
SF/UTP
No. of leads
8 x
Cross section (each core)
0.14 mm²
EAN:
Part number:
Item no:
Technical specifications
- Product type
Bus cable
CAT 5
SF/UTP
- No. of leads
8 x
- Cross section (each core)
0.14 mm²
- Cross section
4 x 2 x 0.14 mm²
- Cable features
Flame-retardant
flexible core
Metal foil shield
Twin shield
- Outside Ø
5.80 mm
- Factory colour
Grey
- Content
1000 m
- Packaged
Yes
- Sold per metre
No
- Manufacturer part #
800068-1000
- Type
800068-1000
- Insulation material
PUR
- RoHS-compliant
Yes
- Max. temperature range (flexible installation)
50 °C
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
80 °C
- Halogen-free
No
- Twisted pair cabling (part 1)
Yes (1)
- Core layout
Cl.2 = multi-wire
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3039016 HELU 800068-1000 Bus cable CAT 5 SF/UTP 4 x 2 x 0.14 mm² Grey 1000 m
