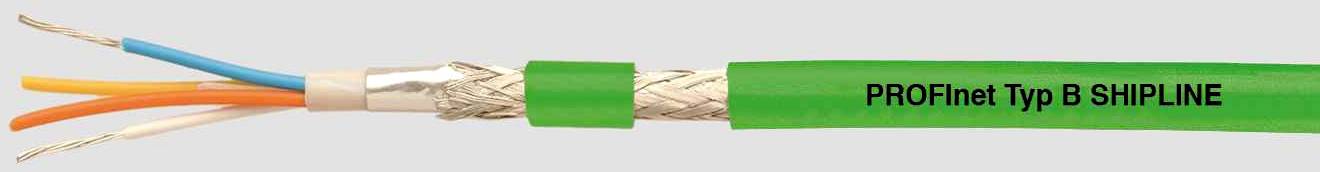

HELU 802185 Bus cable 2 x 2 x 0.34 mm² Green 100 m
Product type
Bus cable
No. of leads
4 x
Cross section (each core)
0.34 mm²
Cross section
2 x 2 x 0.34 mm²
Cable features
Flame-retardant
Halogen-free
Shielded
EAN:
Part number:
Item no:
Technical specifications
- Feature: FRNC
- Product type
Bus cable
- No. of leads
4 x
- Cross section (each core)
0.34 mm²
- Cross section
2 x 2 x 0.34 mm²
- Cable features
Flame-retardant
Halogen-free
Shielded
- Outside Ø
6.5 mm
- Factory colour
Green
- Content
100 m
- Test voltage
700 V
- Bend radius (no. of ODs for fixed installation)
3.5
- Bend radius (no. of ODs for flexible installation)
8
- Packaged
Yes
- Sold per metre
No
- Halogen-free
Yes
- Manufacturer part #
802185
- Insulation material
PP
- Min. temperature range (fixed installation)
-20 °C
- Max. temperature range (fixed installation)
70 °C
- Core layout
Copper, tin plated (AWG 22/7)
- Operating capacity
52 nF/km
- Certification marks
PROFINET type B SHIPLINE
- Wave impedance
100 Ω
- Type
HELUKAT PROFInet SHIPLINE B
- Twisted pair cabling (part 1)
Yes (1)
