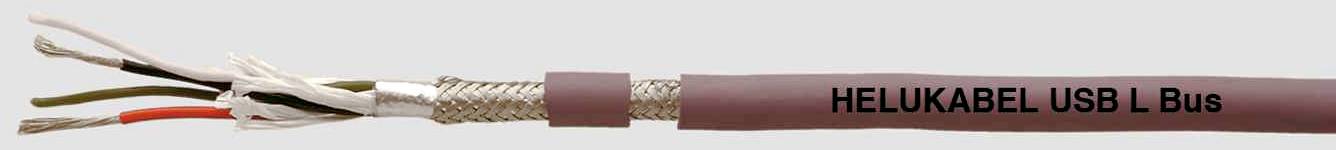

Image similar
HELU 802470 Bus cable 1 x 2 x 0.24 mm² Violet 100 m
Product type
Bus cable
No. of leads
2 x
Cross section (each core)
0.24 mm²
Cross section
1 x 2 x 0.24 mm²
Cable features
Flame-retardant
Metal foil shield
Braided shield
EAN:
Part number:
Item no:
Technical specifications
- Product type
Bus cable
- No. of leads
2 x
- Cross section (each core)
0.24 mm²
- Cross section
1 x 2 x 0.24 mm²
- Cable features
Flame-retardant
Metal foil shield
Braided shield
- Outside Ø
6.3 mm
- Factory colour
Violet
- Content
100 m
- Test voltage
2000 V
- Bend radius (no. of ODs for fixed installation)
8
- Bend radius (no. of ODs for flexible installation)
15
- Packaged
Yes
- Sold per metre
No
- Halogen-free
Yes
- Manufacturer part #
802470
- Insulation material
Polyolefin PVC
- Min. temperature range (fixed installation)
-30 °C
- Max. temperature range (fixed installation)
70 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (flexible installation)
+70 °C
- Core layout
Copper, tin plated (AWG 24/19 and 20/19)
- Operating capacity
50 nF/km
- Certification marks
USB bus L 2.0 drag chain
- Wave impedance
90 Ω
- Type
USB Bus L 2.0
- Twisted pair cabling (part 1)
Yes (1)
- Twisted pair cabling (yes/no)
No (0)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2197068 HELU 802470 Bus cable 1 x 2 x 0.24 mm² Violet 100 m
