Name: HELU F-C-PURö-JZ Control lead 4 G 0.75 mm² Grey 21229-500 500 m
Brand: HELU
SKU: 3042281

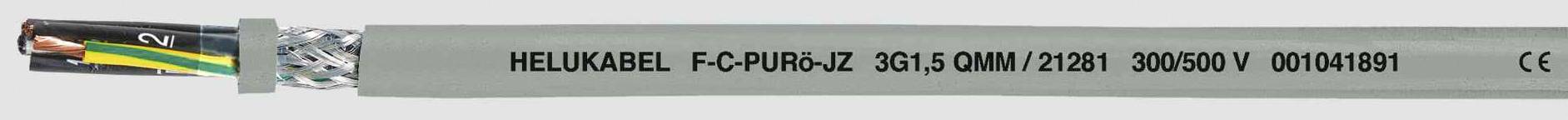

Pictured is a grey insulated cable by Helukabel, comprising multiple copper wires. Printed marking: 'FC-PUR-ÖZ... 300/500V'.

Image similar

Product type

Control lead

No. of leads

4 G

Cross section (each core)

0.75 mm²

Cable type

F-C-PURö-JZ

Outside Ø

7 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Control lead

No. of leads: 4 G

Content: 500 m

Cross section (each core): 0.75 mm²

Cable features: Shielded
Ozone-resistant
UV-resistant
Charpy impact tested
incl. graduation (metres)
Oil-resistant
Oil- and abrasion-resistant

Cable type: F-C-PURö-JZ

Outside Ø: 7 mm

Packaged: Yes

Wire ID code: DIN VDE 0293

Bend radius (no. of ODs for fixed installation): 4

Bend radius (no. of ODs for flexible installation): 7.5

Halogen-free: No

Manufacturer part #: 21229-500

Factory colour: Grey

Insulation material: PUR

Insulation: PVC

Core layout: Plain Cu braid, according to DIN VDE 0295 class 5, fine strand

Material (details): PVC

Sold per metre: No

Nominal voltage: 500 V

Nominal voltage U0: 300 V

Number-coded: Yes

Cross section: 4 G 0.75 mm²

RoHS-compliant: Yes

Suited for cable carriers: No

Max. temperature range (flexible installation): +80 °C

Min. temperature range (flexible installation): -20 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (fixed installation): -40 °C

Type: 21229-500
