Name: HELU H05VV-F Flexible cable 4 G 1 mm² Black 29462-500 500 m
Brand: HELU
SKU: 3042170

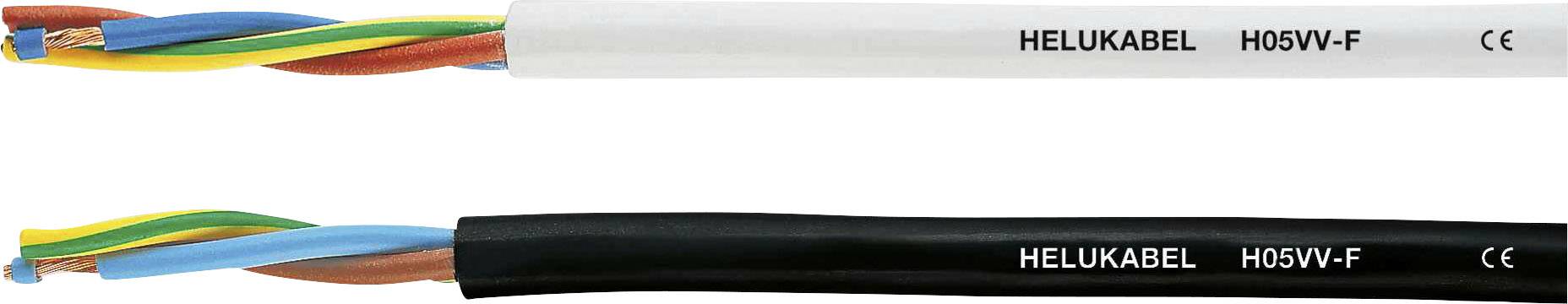

Two flexible cables, white at the top, black at the bottom, both marked with 'HELUKABEL H05VV-F'.

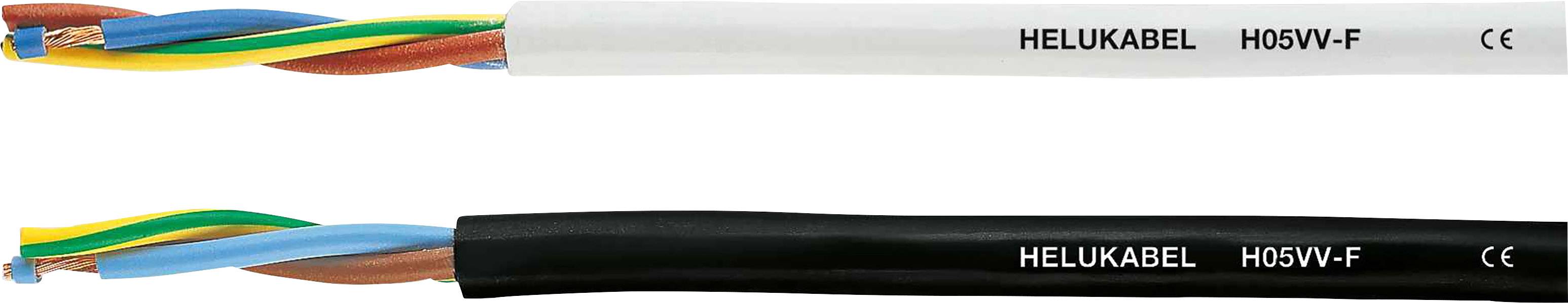

Two electrical cables with coloured conductors, marked 'HELUKABEL H05VV-F', one with white and one with black insulation.

1/2

Image similar

Product type

Flexible cable

No. of leads

4 G

Cross section (each core)

1 mm²

Cable type

H05VV-F

Outside Ø

9 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Flexible cable

No. of leads: 4 G

Content: 500 m

Cross section (each core): 1 mm²

Cable features: Flame-retardant

Cable type: H05VV-F

Outside Ø: 9 mm

Packaged: Yes

Wire ID code: DIN VDE 0293

Bend radius (no. of ODs for fixed installation): 7.5

Bend radius (no. of ODs for flexible installation): 10

Halogen-free: No

Manufacturer part #: 29462-500

Factory colour: Black

Insulation material: PVC

Insulation: PVC

Core layout: Plain Cu braid, according to DIN VDE 0295 class 5, fine strand

Material (details): PVC

Sold per metre: No

Nominal voltage: 500 V

Nominal voltage U0: 300 V

Number-coded: Yes

Test voltage: 2000 V

Cross section: 4 G 1 mm²

RoHS-compliant: Yes

Suited for cable carriers: No

Max. temperature range (flexible installation): +70 °C

Min. temperature range (flexible installation): -5 °C

Max. temperature range (fixed installation): +70 °C

Min. temperature range (fixed installation): -40 °C

Type: 29462-500
