Name: HELU H05VV5-F Control lead 2 x 1.5 mm² Grey 13120-100 100 m
Brand: HELU
SKU: 3163972

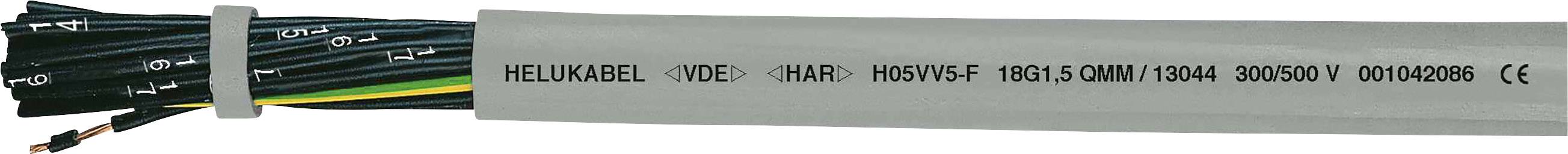

Cable with grey outer sheathing, printed with 'HELUKABEL' and technical specifications.

Image similar

Product type

Control lead

No. of leads

2 x

Cross section (each core)

1.5 mm²

Cable type

H05VV5-F

Outside Ø

8.60 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Our service for you

Technical specifications

Product type: Control lead

No. of leads: 2 x

Content: 100 m

Cross section (each core): 1.5 mm²

Cable features: Oil-resistant
incl. graduation (metres)
Flexible
Flame-retardant

Cable type: H05VV5-F

Outside Ø: 8.60 mm

Packaged: Yes

Wire ID code: DIN VDE 0293

Bend radius (no. of ODs for fixed installation): 4

Bend radius (no. of ODs for flexible installation): 12.5

Halogen-free: No

Manufacturer part #: 13120-100

Factory colour: Grey

Insulation material: PVC

Insulation: PVC

Core layout: Plain Cu braid, according to DIN VDE 0295 class 5, fine strand

Material (details): PVC

Max. length sold by the metre: 100 m

Sold per metre: No

Nominal voltage: 500 V

Nominal voltage U0: 300 V

Number-coded: Yes

Cross section: 2 x 1.5 mm²

RoHS-compliant: Yes

Suited for cable carriers: No

Max. temperature range (flexible installation): +70 °C

Min. temperature range (flexible installation): -5 °C

Max. temperature range (fixed installation): +70 °C

Min. temperature range (fixed installation): -40 °C

Type: 13120-100
