Name: HELU JZ-500 HMH-C Control lead 3 G 1.5 mm² Grey 11723-500 500 m
Brand: HELU
SKU: 3042035

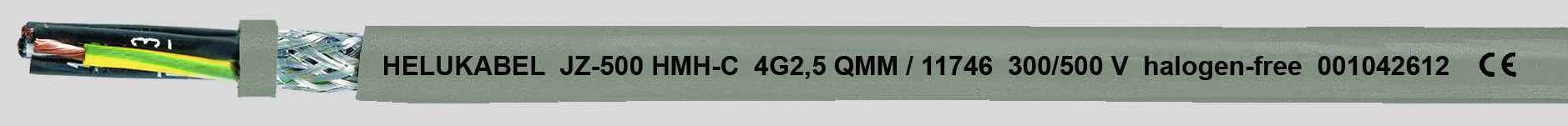

A grey cable with the marking 'HELUKABEL JZ-500 HMH-C 4G2.5 CMM 1748 300/500 V halogen-free 001048612 CE'.

Image similar

Product type

Control lead

No. of leads

3 G

Cross section (each core)

1.5 mm²

Cable type

JZ-500 HMH-C

Outside Ø

7.40 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Control lead

No. of leads: 3 G

Content: 500 m

Cross section (each core): 1.5 mm²

Cable features: Oil-resistant
incl. graduation (metres)
Flame-retardant
Halogen-free
Flexible
Shielded

Cable type: JZ-500 HMH-C

Outside Ø: 7.40 mm

Packaged: Yes

Wire ID code: DIN VDE 0293

Bend radius (no. of ODs for fixed installation): 5

Bend radius (no. of ODs for flexible installation): 10

Halogen-free: Yes

Manufacturer part #: 11723-500

Factory colour: Grey

Insulation material: Polymer

Insulation: others

Core layout: Plain Cu braid, according to DIN VDE 0295 class 5, fine strand

Material (details): Halogen-free TM7 polymer

Sold per metre: No

Nominal voltage: 500 V

Nominal voltage U0: 300 V

Number-coded: Yes

Test voltage: 2000 V

Cross section: 3 G 1.5 mm²

RoHS-compliant: Yes

Suited for cable carriers: No

Max. temperature range (flexible installation): +70 °C

Min. temperature range (flexible installation): -15 °C

Max. temperature range (fixed installation): +70 °C

Min. temperature range (fixed installation): -40 °C

Type: 11723-500
