Name: HELU JZ-600 Control lead 5 G 1 mm² Black 10621-500 500 m
Brand: HELU
SKU: 3041705

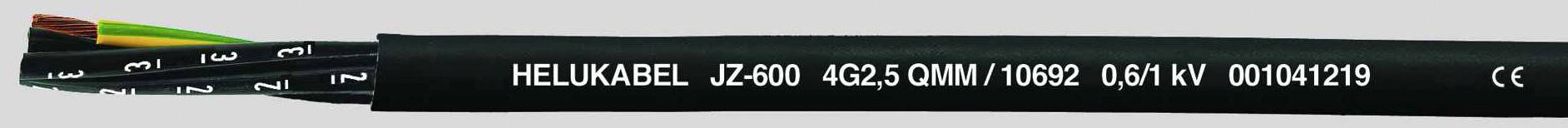

A black electrical cable with the inscription 'HELU KABEL JZ 600 C25 0.6/1 kV 100692'. It displays the technical specifications of the cable.

Image similar

Product type

Control lead

No. of leads

5 G

Cross section (each core)

1 mm²

Cable type

JZ-600

Outside Ø

9.20 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Control lead

No. of leads: 5 G

Content: 500 m

Cross section (each core): 1 mm²

Cable features: Flame-retardant
Flexible
incl. graduation (metres)
Oil-resistant
chemical-resistant

Cable type: JZ-600

Outside Ø: 9.20 mm

Packaged: Yes

Wire ID code: DIN VDE 0293

Bend radius (no. of ODs for fixed installation): 5

Bend radius (no. of ODs for flexible installation): 10

Halogen-free: No

Manufacturer part #: 10621-500

Factory colour: Black

Insulation material: PVC

Insulation: PVC

Core layout: Plain Cu braid, according to DIN VDE 0295 class 5, fine strand

Material (details): PVC

Sold per metre: No

Nominal voltage: 1000 V

Nominal voltage U0: 600 V

Number-coded: Yes

Test voltage: 8000 V

Cross section: 5 G 1 mm²

RoHS-compliant: Yes

Suited for cable carriers: No

Max. temperature range (flexible installation): +80 °C

Min. temperature range (flexible installation): -15 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (fixed installation): -40 °C

Type: 10621-500
