Name: HELU JZ-600-Y-CY Control lead 7 G 1 mm² Black 11521-1000 1000 m
Brand: HELU
SKU: 3038717

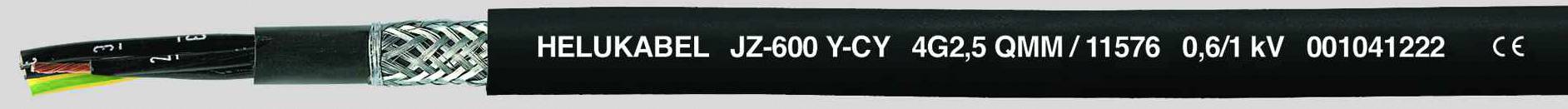

Close-up of a cable with the inscription 'HELUKABEL' and a technical specification in white on a black background.

Image similar

Product type

Control lead

No. of leads

7 G

Cross section (each core)

1 mm²

Cable type

JZ-600-Y-CY

Outside Ø

12.30 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Control lead

No. of leads: 7 G

Content: 1000 m

Cross section (each core): 1 mm²

Cable features: Oil-resistant
Flexible
Flame-retardant
incl. graduation (metres)
chemical-resistant
Shielded

Cable type: JZ-600-Y-CY

Outside Ø: 12.30 mm

Packaged: Yes

Wire ID code: DIN VDE 0293

Bend radius (no. of ODs for fixed installation): 5

Bend radius (no. of ODs for flexible installation): 10

Halogen-free: No

Manufacturer part #: 11521-1000

Factory colour: Black

Insulation material: PVC

Insulation: PVC

Core layout: Plain Cu braid, according to DIN VDE 0295 class 5, fine strand

Material (details): PVC

Sold per metre: No

Nominal voltage: 1000 V

Nominal voltage U0: 600 V

Number-coded: Yes

Test voltage: 4000 V

Cross section: 7 G 1 mm²

RoHS-compliant: Yes

Suited for cable carriers: No

Max. temperature range (flexible installation): +80 °C

Min. temperature range (flexible installation): -15 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (fixed installation): -40 °C

Type: 11521-1000
