Name: HELU PUR-Orange JB Flexible cable 5 G 1.5 mm² Orange 22261-1000 1000 m
Brand: HELU
SKU: 3039182

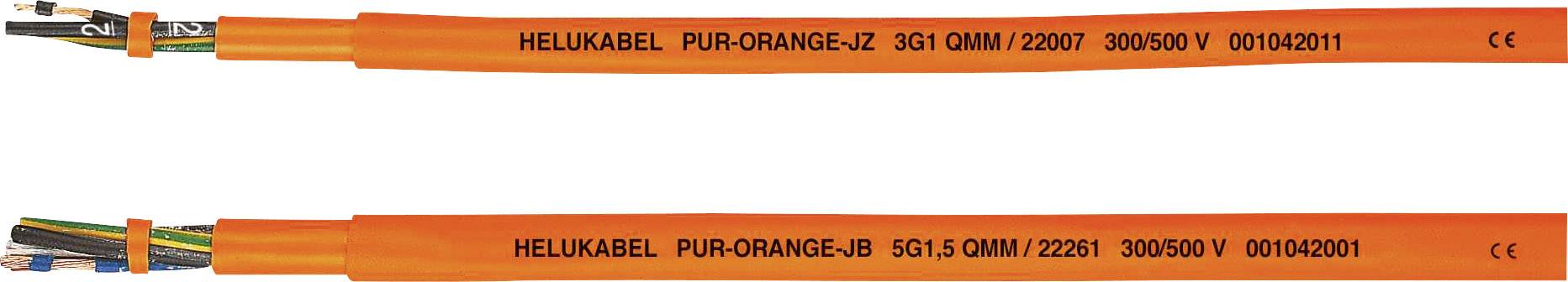

Two orange cables with labels 'HELUKABEL PUR-ORANGE-JZ' and 'HELUKABEL PUR-ORANGE-JB', showing different cross-sections.

Image similar

Product type

Flexible cable

No. of leads

5 G

Cross section (each core)

1.5 mm²

Cable type

PUR-Orange JB

Outside Ø

9.70 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Flexible cable

No. of leads: 5 G

Content: 1000 m

Cross section (each core): 1.5 mm²

Cable features: Oil-resistant
incl. graduation (metres)
Oil- and abrasion-resistant
UV-resistant
Waterproof

Cable type: PUR-Orange JB

Outside Ø: 9.70 mm

Packaged: Yes

Wire ID code: DIN VDE 0293

Bend radius (no. of ODs for fixed installation): 4

Bend radius (no. of ODs for flexible installation): 7.5

Halogen-free: No

Manufacturer part #: 22261-1000

Factory colour: Orange

Insulation material: PUR

Insulation: PVC

Core layout: Plain Cu braid, according to DIN VDE 0295 class 5, fine strand

Material (details): PVC

Sold per metre: No

Nominal voltage: 500 V

Nominal voltage U0: 300 V

Number-coded: Yes

Test voltage: 3000 V

Cross section: 5 G 1.5 mm²

RoHS-compliant: Yes

Suited for cable carriers: No

Max. temperature range (flexible installation): +80 °C

Min. temperature range (flexible installation): -15 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (fixed installation): -40 °C

Type: 22261-1000

Variants(All information is without VAT, plus shipping costs)

Content

Cross section (each core)

No. of leads

Outside Ø

HELU PUR-Orange JB Flexible cable 3 G 0.75 mm² Orange 22251 100 m

Item no:1972673

Unavailable

Conrad Electronic

100 m

0.75 mm²

3 G

6.80 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 244.99^*

1 m = € 2.45

HELU PUR-Orange JB Flexible cable 3 G 0.75 mm² Orange 22251-1000 1000 m

Item no:3039534

Unavailable

Conrad Electronic

1000 m

0.75 mm²

3 G

6.80 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

HELU PUR-Orange JB Flexible cable 3 G 0.75 mm² Orange 22251-500 500 m

Item no:3042357

Unavailable

Conrad Electronic

500 m

0.75 mm²

3 G

6.80 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

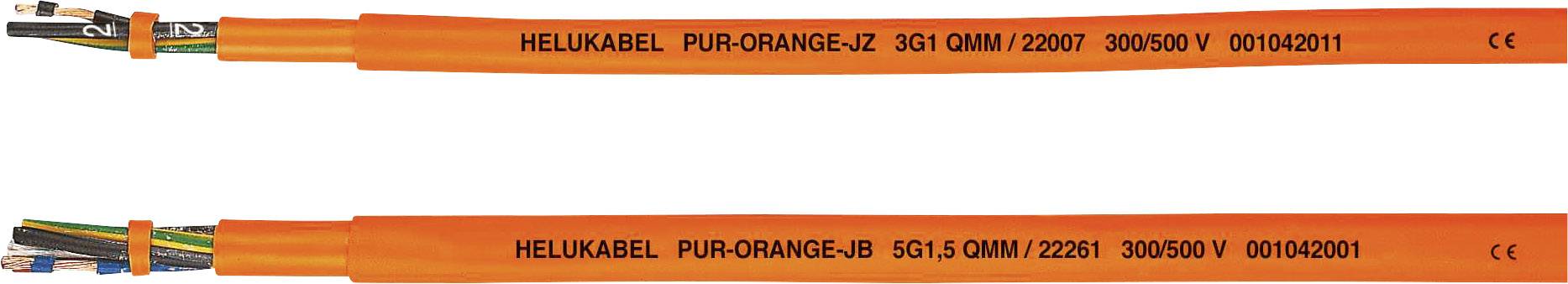

HELU PUR-Orange JB Flexible cable 3 G 1 mm² Orange 22255 100 m

Item no:1972630

Unavailable

Conrad Electronic

100 m

1 mm²

3 G

7.60 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 415.00^*

1 m = € 4.15

HELU PUR-Orange JB Flexible cable 3 G 1 mm² Orange 22255-1000 1000 m

Item no:3039417

Unavailable

Conrad Electronic

1000 m

1 mm²

3 G

7.60 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

HELU PUR-Orange JB Flexible cable 3 G 1 mm² Orange 22255-500 500 m

Item no:3042119

Unavailable

Conrad Electronic

500 m

1 mm²

3 G

7.60 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

HELU PUR-Orange JB Flexible cable 3 G 1.5 mm² Orange 22259 100 m

Item no:1972760

Unavailable

Conrad Electronic

100 m

1.5 mm²

3 G

8.30 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 349.00^*

1 m = € 3.49

HELU PUR-Orange JB Flexible cable 3 G 1.5 mm² Orange 22259-1000 1000 m

Item no:3039352

Unavailable

Conrad Electronic

1000 m

1.5 mm²

3 G

8.30 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

HELU PUR-Orange JB Flexible cable 3 G 1.5 mm² Orange 22259-500 500 m

Item no:3041948

Unavailable

Conrad Electronic

500 m

1.5 mm²

3 G

8.30 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

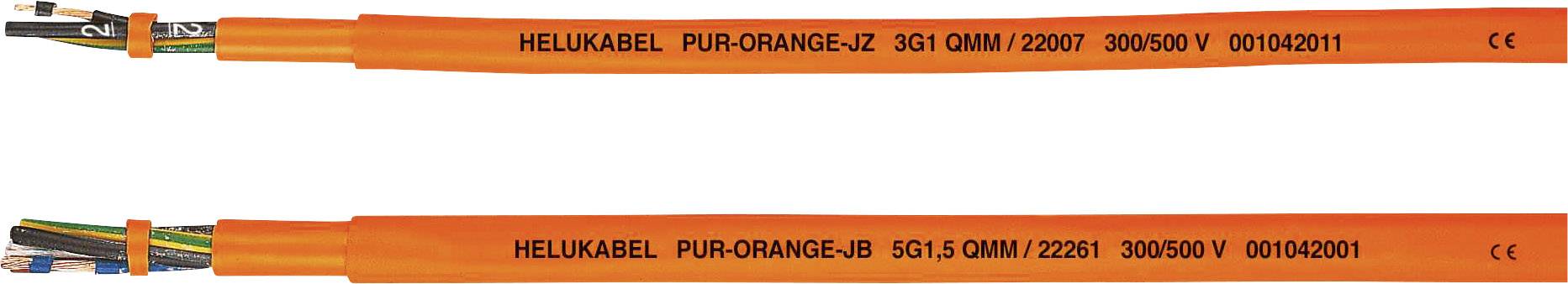

HELU PUR-Orange JB Flexible cable 3 G 2.5 mm² Orange 22263 100 m

Item no:1972716

Unavailable

Conrad Electronic

100 m

2.5 mm²

3 G

9.60 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 745.00^*

1 m = € 7.45
