Name: HELU PUR-Yellow JB Flexible cable 5 G 1.5 mm² Yellow 22213-1000 1000 m
Brand: HELU
SKU: 3039181

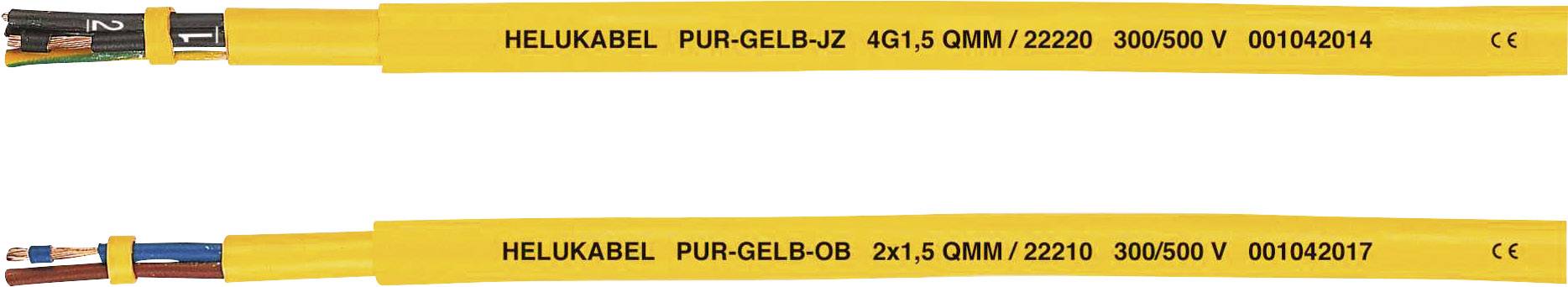

HELU PUR-Yellow JB Flexible cable 5 G 1.5 mm² Yellow 22213-1000 1000 m-0

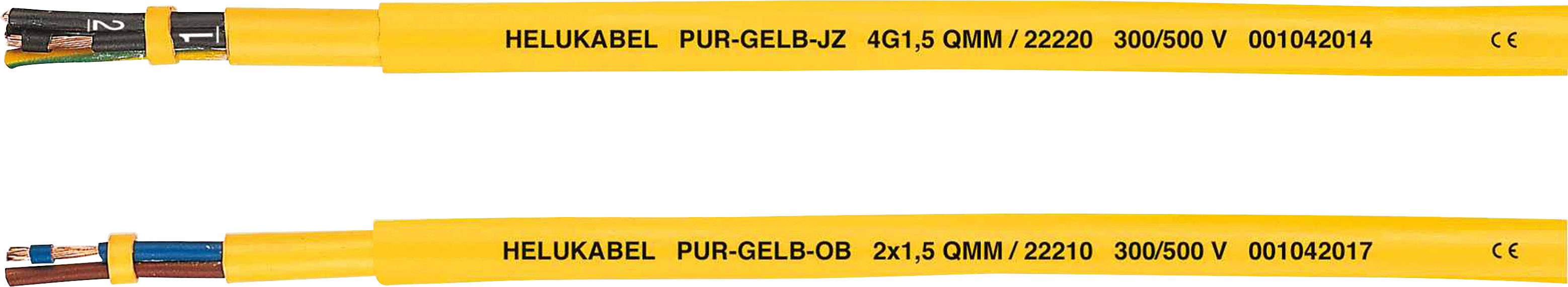

Two yellow cables labelled 'HELUKABEL PUR-YELLOW-JZ' and 'HELUKABEL PUR-YELLOW-OB', each with technical specifications.

1/2

Image similar

Product type

Flexible cable

No. of leads

5 G

Cross section (each core)

1.5 mm²

Cable type

PUR-Yellow JB

Outside Ø

11.20 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Flexible cable

No. of leads: 5 G

Content: 1000 m

Cross section (each core): 1.5 mm²

Cable features: Flexible
Ozone-resistant
UV-resistant
Waterproof
incl. graduation (metres)
Oil-resistant
Oil- and abrasion-resistant

Cable type: PUR-Yellow JB

Outside Ø: 11.20 mm

Packaged: Yes

Wire ID code: DIN VDE 0293

Bend radius (no. of ODs for fixed installation): 5

Bend radius (no. of ODs for flexible installation): 10

Halogen-free: No

Manufacturer part #: 22213-1000

Factory colour: Yellow

Insulation material: PUR

Insulation: PVC

Core layout: Plain Cu braid, according to DIN VDE 0295 class 5, fine strand

Material (details): PVC

Sold per metre: No

Nominal voltage: 500 V

Nominal voltage U0: 300 V

Number-coded: Yes

Test voltage: 3000 V

Cross section: 5 G 1.5 mm²

RoHS-compliant: Yes

Suited for cable carriers: No

Max. temperature range (flexible installation): +80 °C

Min. temperature range (flexible installation): -15 °C

Max. temperature range (fixed installation): +80 °C

Min. temperature range (fixed installation): -40 °C

Type: 22213-1000
