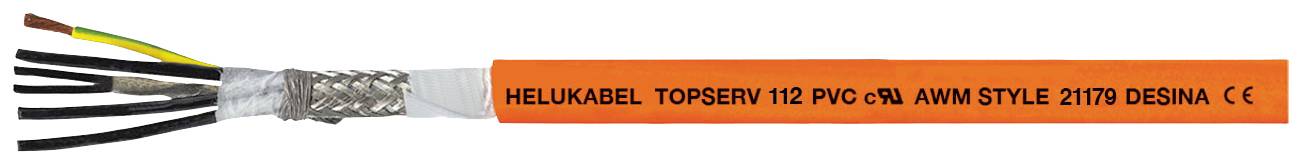

HELU TOPSERV® 112 Servo lead 4 G 1.5 mm² + 2 x 0.5 mm² Orange 707222 50 m
Product type
Servo lead
No. of leads
4 G
Cross section (each core)
1.5 mm²
Cable type
TOPSERV® 112
Outside Ø
11.00 mm
EAN:
Part number:
Item no:
Technical specifications
- Product type
Servo lead
- No. of leads
4 G
- Content
50 m
- Cross section (each core)
1.5 mm²
- Cable features
Oil-resistant
Shielded
Flame-retardant
- Cross section (each core) (part 2)
0.5 mm²
- No. of leads (part 2)
2 x
- Cable type
TOPSERV® 112
- Outside Ø
11.00 mm
- Bend radius (no. of ODs for fixed installation)
5
- Bend radius (no. of ODs for flexible installation)
15
- Halogen-free
No
- Manufacturer part #
707222
- Factory colour
Orange
- Core layout
Plain copper, fine strand to DIN EN 60228, class 5
- Material (details)
PVC
- Nominal voltage
1000 V
- Nominal voltage U0
600 V
- Test voltage
4000 V
- Cross section
4 G 1.5 mm² + 2 x 0.5 mm²
- Max. temperature range (flexible installation)
+60 °C
- Min. temperature range (flexible installation)
0 °C
- Max. temperature range (fixed installation)
+80 °C
- Min. temperature range (fixed installation)
-20 °C
- Type
707222
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2469376 HELU TOPSERV® 112 Servo lead 4 G 1.5 mm² + 2 x 0.5 mm² Orange 707222 50 m
