Hensel 3900221 Junction box Halogen-free, Sealable (L x W) 450 mm x 300 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Stackable: no.
- Type of housing bushing: Prestamped
- Rated insulation voltage UI: 690 V.
- Assembly: Terminal
- Lid mounting: Screwed
- Introduction from behind: no.
- Operating temperature: -25..40 °C.
- Shape: Rectangular
- Max. Conductor cross-section 70 mm²
- Surface: Untreated
- Protection system: IP65
- Pourable: no.
- Casting compound supplied: no.
- Material: Plastic
- Product type
Junction box
- Features
Halogen-free
Sealable
- Mounting type
Surface-mount
- Content
1 pc(s)
- Factory colour
Grey
- Dim

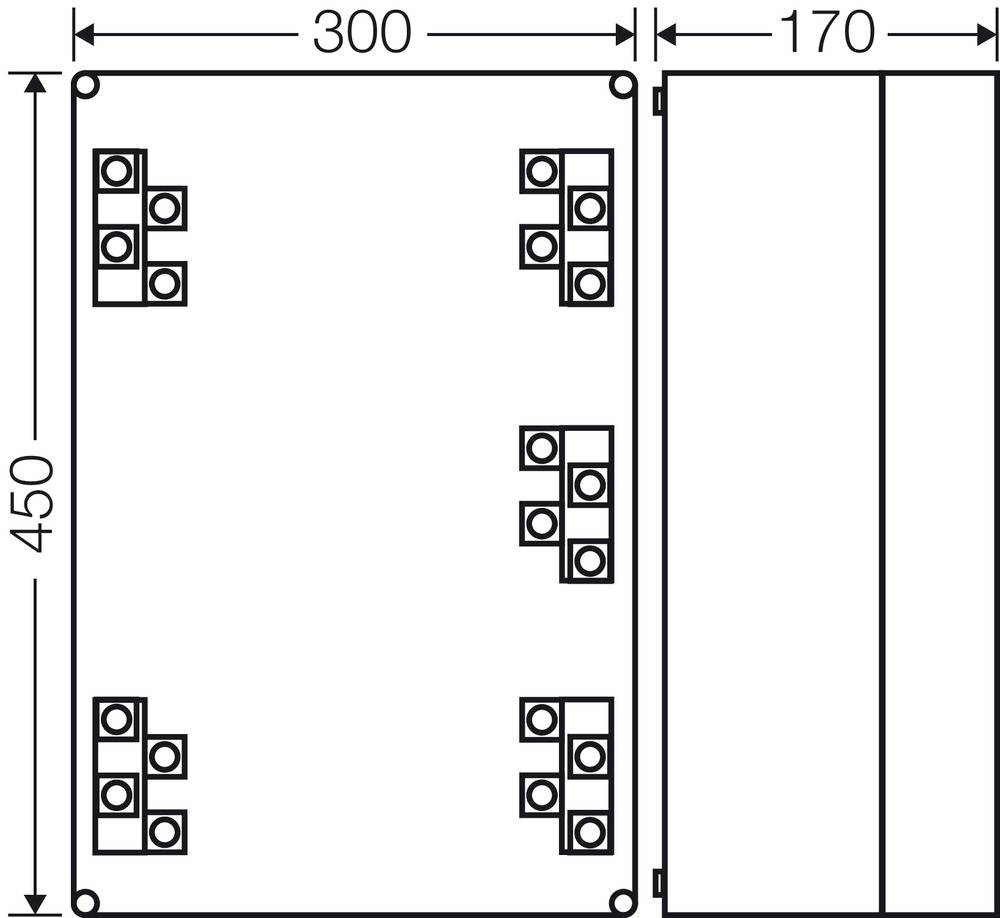

(L x W) 450 mm x 300 mm
- Length
450 mm
- Width
300 mm
- Depth
170 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297336 Hensel 3900221 Junction box Halogen-free, Sealable (L x W) 450 mm x 300 mm 1 pc(s)
Description
Cable junction box made of high-quality thermoplastic. For surface-mounting applications in buildings or protected installation outdoors. Cover attachment via quick-release fasteners. Cable connection and mounting flange in the accessories. With terminals up to 70 mm², 5-pin. Cable entries via metric knockouts in housing walls.
This text is machine translated.
This text is machine translated.
