Hensel 6000039 Junction box Halogen-free, Sealable (L x W) 88 mm x 88 mm 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Stackable: no.
- Number of introductions: 7
- Type of housing bushing: Prestamped
- Rated insulation voltage UI: 690 V.
- Equipment: Equipotential bonding
- Lid mounting: Screwed
- Introduction from behind: no.
- Operating temperature: -25..40 °C.
- Shape: Square
- Max. Conductor cross-section 16 mm²
- Surface: Untreated
- Protection class: IP54
- Pourable: no.
- Casting compound supplied: no.
- Material: Plastic
- Product type
Junction box
- Features
Halogen-free
Sealable
- Mounting type
Surface-mount
- Content
1 pc(s)
- Factory colour
Grey

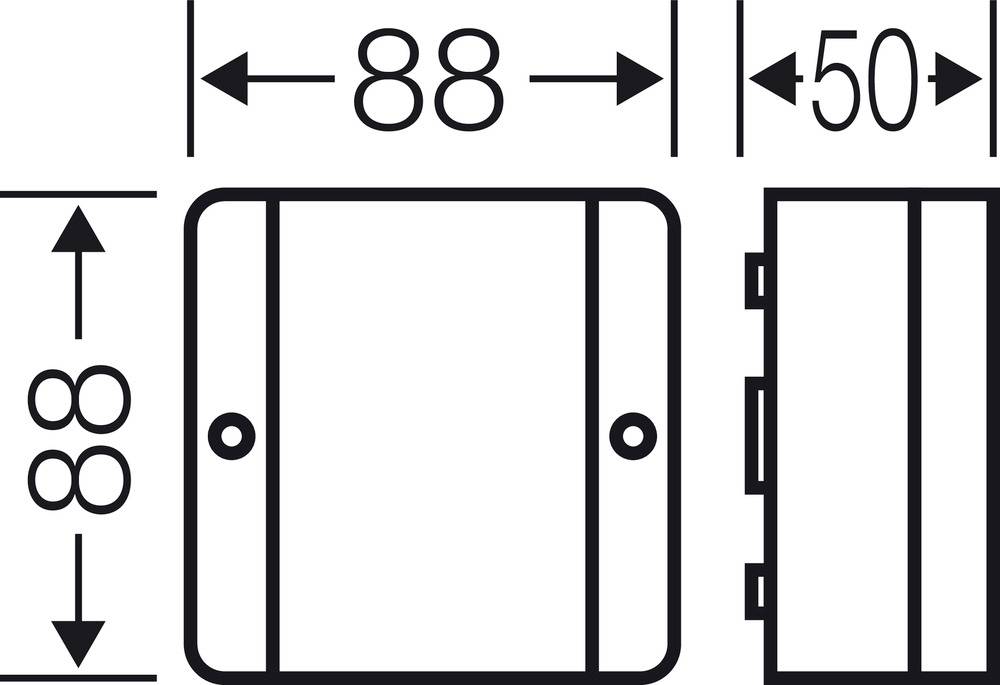

- Dim
(L x W) 88 mm x 88 mm
- Length
88 mm
- Width
88 mm
- Depth
49 mm
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2296419 Hensel 6000039 Junction box Halogen-free, Sealable (L x W) 88 mm x 88 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2296419 Hensel 6000039 Junction box Halogen-free, Sealable (L x W) 88 mm x 88 mm 1 pc(s)
Description

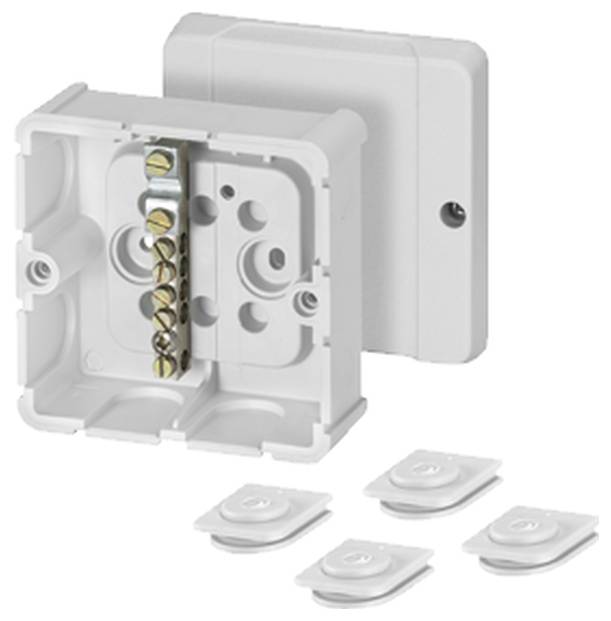

Cable junction boxes made of high-quality thermoplastic. For surface-mounting applications in buildings or protected installation outdoors. The supplied plug-in plugs allow the cables to be inserted from the front. Cover attachment with V2A screws. With clamp up to 25 mm² for potential compensating lines. Cable entry via the plug-in plug supplied.
