Hensel 6000041 Junction box Halogen-free, Sealable (L x W) 139 mm x 119 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of terminals: 5
- Number of introductions: 13
- Rated insulation voltage UI: 690 V.
- Lid mounting: Screwed
- Operating temperature: -25..40 °C.
- Max. Conductor cross-section: 4 mm²
- Surface: Untreated
- Protection class: IP54
- Material: Plastic
- Product type
Junction box
- Features
Halogen-free
Sealable
- Mounting type
Surface-mount
- Content
1 pc(s)
- Factory colour
Grey
- Dim

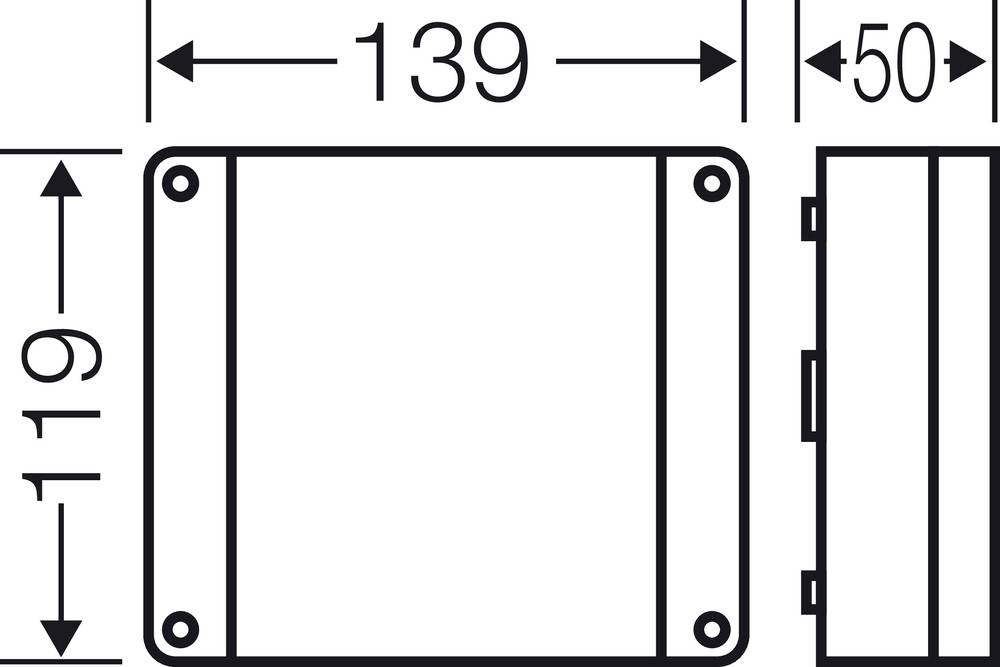

(L x W) 139 mm x 119 mm
- Length
139 mm
- Width
119 mm
- Depth
49 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2293265 Hensel 6000041 Junction box Halogen-free, Sealable (L x W) 139 mm x 119 mm 1 pc(s)
Description

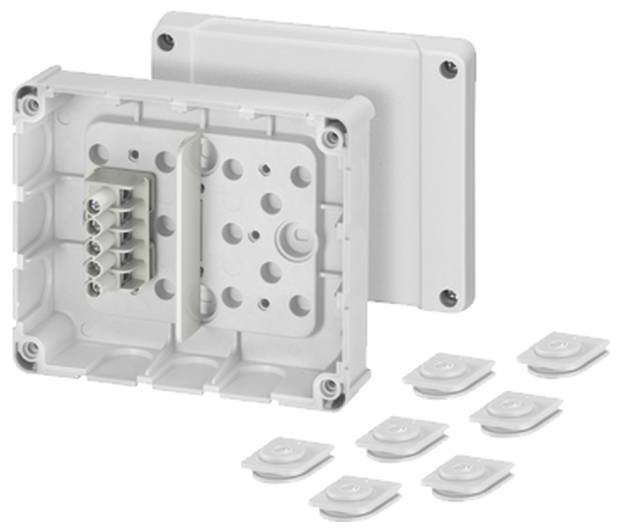

Cable junction boxes made of high-quality thermoplastic. For surface-mounting applications in buildings or protected installation outdoors, suitable for cable duct and pipe installation. By cutting out the cable duct wall and the attached plug-in plug, the cables can be inserted from the front, no threading is necessary. Cover attachment with V2A screws. With screw terminals up to 2.5 mm², 5-pin.
This text is machine translated.
This text is machine translated.
