Hensel 60001071 Junction box Halogen-free, Weather-proof (L x W) 515 mm x 276 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Stackable: no.
- Number of introductions: 6
- Rated insulation voltage UI: 690 V.
- Assembly: Terminal
- Lid mounting: Screwed
- Introduction from behind: no.
- Operating temperature: -25..40 °C.
- Shape: Rectangular
- Max. Conductor cross-section 50 mm²
- Protection system: IP65
- Pourable: no.
- Casting compound supplied: no.
- Material: Stainless steel
- Product type
Junction box
- Features
Halogen-free
Weather-proof
- Mounting type
Surface-mount
- Content
1 pc(s)
- Factory colour
Orange

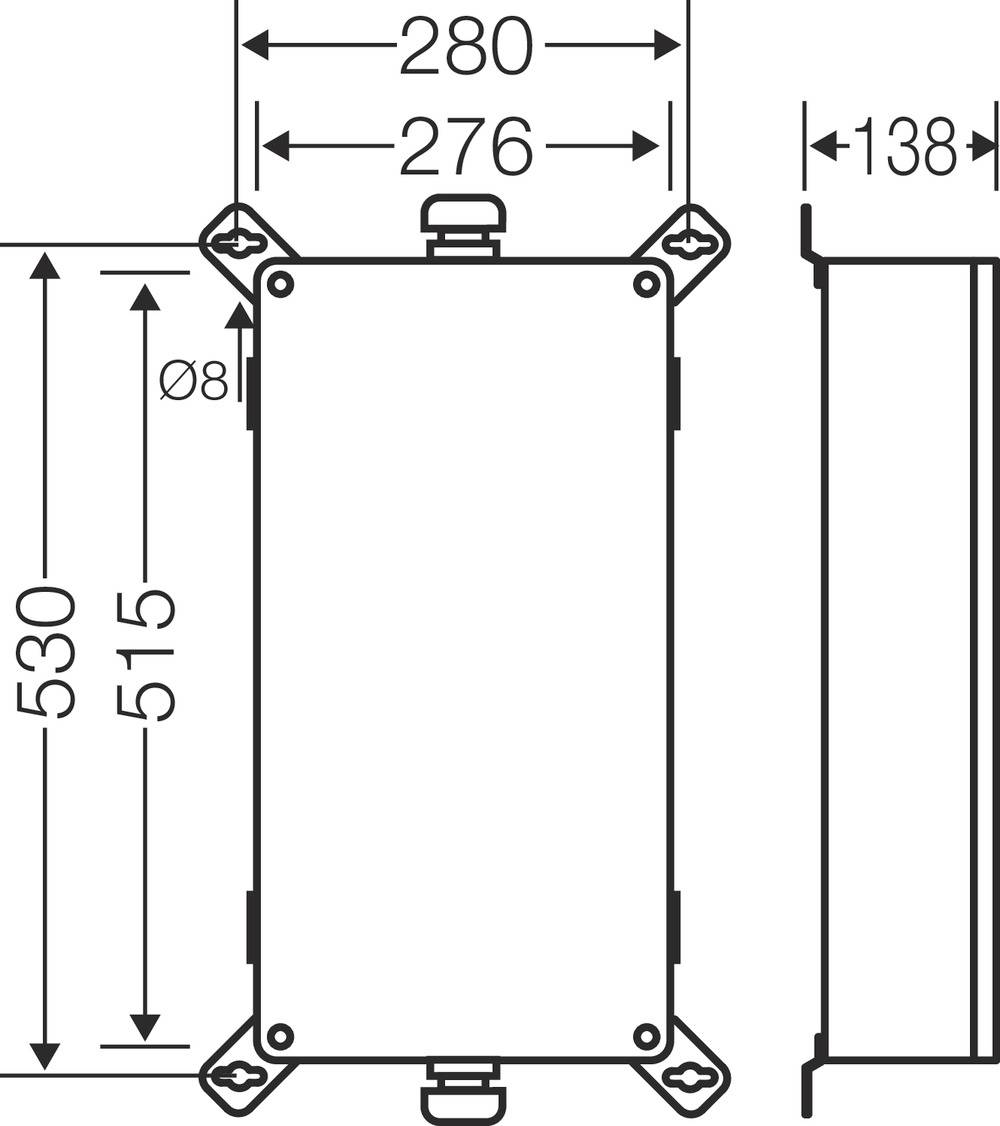

- Dim
(L x W) 515 mm x 276 mm
- Length
515 mm
- Width
276 mm
- Depth
138 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296828 Hensel 60001071 Junction box Halogen-free, Weather-proof (L x W) 515 mm x 276 mm 1 pc(s)
Description

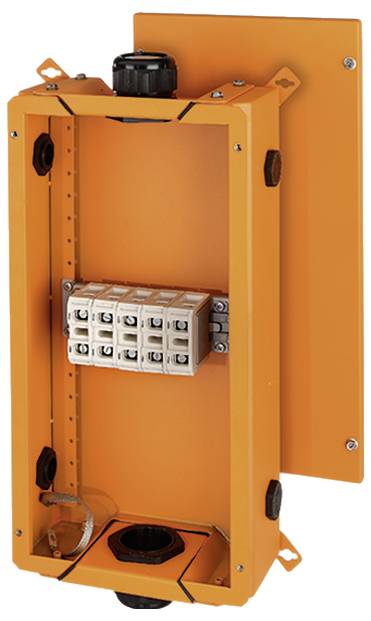

Cable junction box made of powder-painted steel sheet with functional maintenance in case of fire together with functional-retaining cables. Function class E30 to E90. For surface-mounting applications in buildings or protected installation outdoors. With high temperature resistant ceramic terminal for copper conductor and mounted cable connection. Mounting via external stainless steel lugs. With 5-pin terminal. Junction box 16 to 35 mm² or connection box up to 50 mm².
