Hensel 62000003 Junction box Halogen-free, Sealable (L x W) 104 mm x 104 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Stackable: no.
- Number of introductions: 8
- Rated insulation voltage UI: 690 V.
- Assembly: Terminal
- Lid mounting: Screwed
- Introduction from behind: Yes
- Operating temperature: -25..40 °C.
- Shape: Square
- Max. Conductor cross-section: 4 mm²
- Surface: Untreated
- IP66 protection rating
- Pourable: no.
- Casting compound supplied: no.
- Material: Plastic
- Product type
Junction box
- Features
Halogen-free
Sealable
- Mounting type
Surface-mount
- Content
1 pc(s)
- Factory colour
Grey

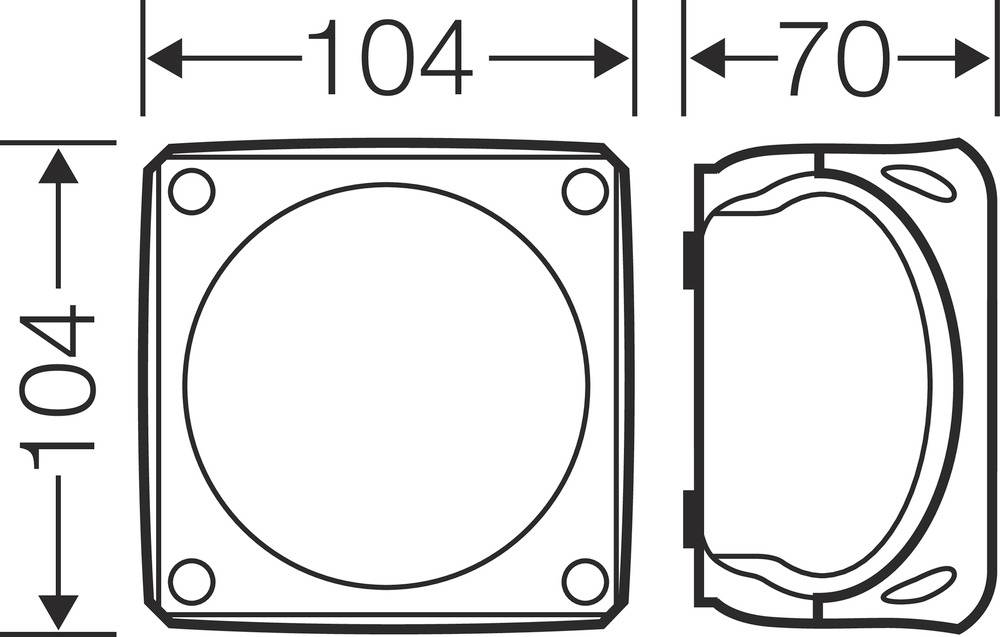

- Dim
(L x W) 104 mm x 104 mm
- Length
104 mm
- Width
104 mm
- Depth
70 mm
- Weight
0
Wall-/ceiling mounting
Grey
104
TRUE
70 mm
Square
Untreated
690 V
104 m
-25-40 °C
Plastic
FALSE
IP66
None
None
Other
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2292207 Hensel 62000003 Junction box Halogen-free, Sealable (L x W) 104 mm x 104 mm 1 pc(s)
Description

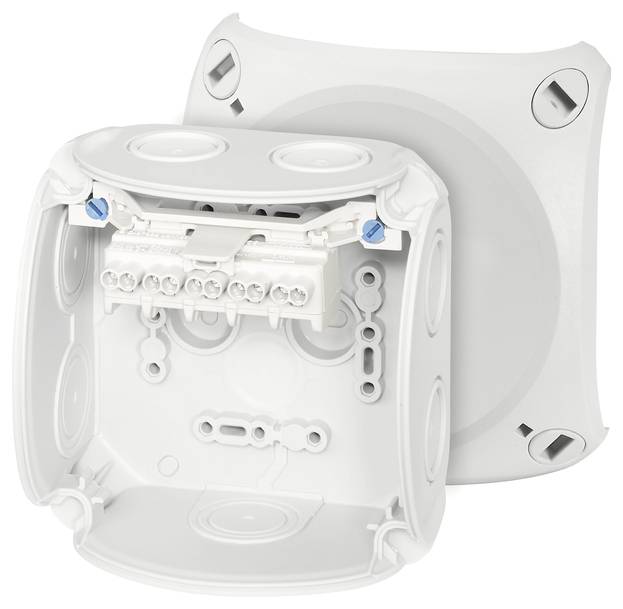

Cable junction box made of high-quality thermoplastic. For surface-mounting applications in buildings or protected installation outdoors. With external straps for fixing and lid fixing via quick-release fasteners. With innovative clamping technology up to 2.5 mm², 5-pin. Cable entry via elastic sealing membranes in housing walls and floor. Subsequent use of cable supports by removing the sealing membrane. With cover strap.
This text is machine translated.
This text is machine translated.
