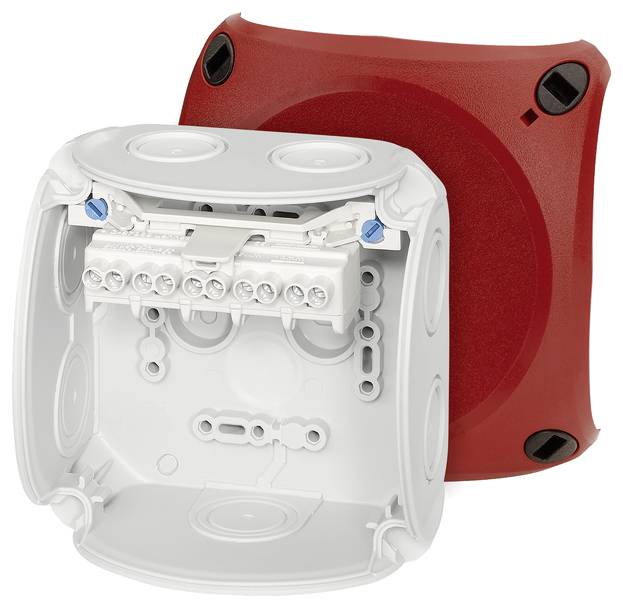

Hensel 62000039 Junction box Halogen-free, Sealable (L x W) 104 mm x 104 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Stackable: no.
- Number of introductions: 8
- Rated insulation voltage UI: 690 V.
- Assembly: Terminal
- Lid mounting: Screwed
- Introduction from behind: Yes
- Operating temperature: -25..40 °C.
- Shape: Square
- Max. Conductor cross-section: 6 mm²
- Surface: Untreated
- IP66 protection rating
- Pourable: no.
- Casting compound supplied: no.
- Material: Plastic
- Product type
Junction box
- Features
Halogen-free
Sealable
- Mounting type
Surface-mount
- Content
1 pc(s)
- Factory colour
Red
- Dim
(L x W) 104 mm x 104 mm
- Length
104 mm
- Width
104 mm
- Depth
70 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295093 Hensel 62000039 Junction box Halogen-free, Sealable (L x W) 104 mm x 104 mm 1 pc(s)
Description
Cable junction box made of high-quality thermoplastic with red cover for safety lighting circuits. For surface-mounting applications in buildings or protected installation outdoors. With innovative clamping technology up to 4 mm², 5-pin. Cable entry via elastic sealing membranes in housing walls and floor. Subsequent use of cable supports by removing the sealing membrane. With external straps for attachment and cover retaining strap. Cover attachment via quick-release fasteners.
This text is machine translated.
This text is machine translated.
