Hensel 62000046 Junction box Halogen-free, Sealable, Weather-proof (L x W) 104 mm x 104 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Stackable: no.
- Number of introductions: 7
- Type of housing bushing: Prestamped
- Assembly: None
- Lid mounting: Screwed
- Introduction from behind: no.
- Operating temperature: -25..70 °C.
- Shape: Square
- Surface: Untreated
- Protection class IP66/IP67
- Pourable: no.
- Casting compound supplied: no.
- Material: Plastic
- Product type
Junction box
- Features
Halogen-free
Sealable
Weather-proof
- Mounting type
Surface-mount
- Content
1 pc(s)
- Factory colour
Black
- Dim

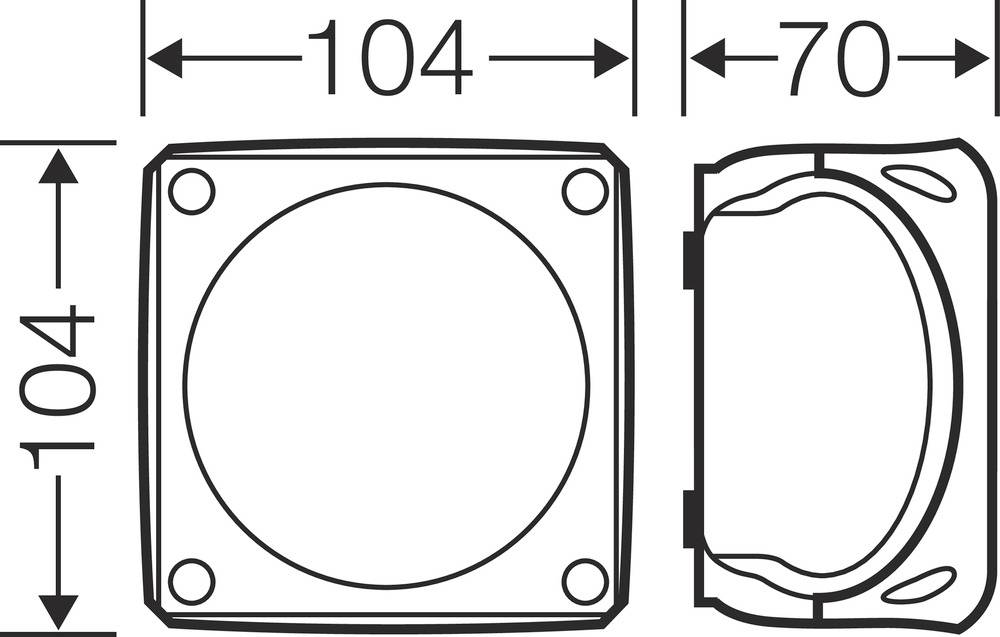

(L x W) 104 mm x 104 mm
- Length
104 mm
- Width
104 mm
- Depth
70 mm
IP67/IP69
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297328 Hensel 62000046 Junction box Halogen-free, Sealable, Weather-proof (L x W) 104 mm x 104 mm 1 pc(s)
Description

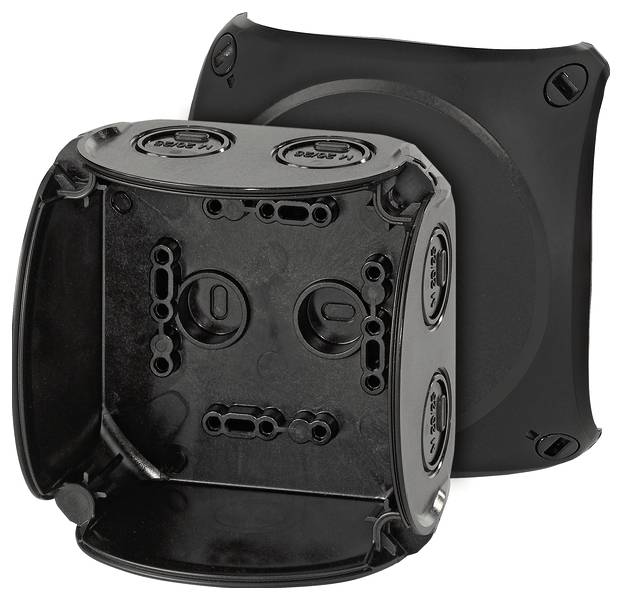

Cable junction box made of high-quality thermoplastic for unprotected outdoor installation or surface-mounted applications in buildings. Resistant to weather influences such as UV exposure to sunlight, protected against rain water, temperature resistant and impact resistant. Cover attachment via quick-release fasteners. With external straps for attachment. Seawater-resistant, for offshore applications. With approval for installation on ships. Cable junction box without terminal. Cable entry via metric knockouts. Extension cable connection in the accessories. With cover strap.
This text is machine translated.
This text is machine translated.
