Hensel 62000048 Junction box Halogen-free, Sealable, Weather-proof (L x W) 104 mm x 104 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Stackable: no.
- Number of introductions: 7
- Type of housing bushing: Prestamped
- Rated insulation voltage UI: 690 V.
- Assembly: Terminal
- Lid mounting: Screwed
- Introduction from behind: no.
- Operating temperature: -25..70 °C.
- Shape: Square
- Max. Conductor cross-section: 4 mm²
- Surface: Untreated
- Protection class IP66/IP67
- Pourable: no.
- Casting compound supplied: no.
- Material: Plastic
- Product type
Junction box
- Features
Halogen-free
Sealable
Weather-proof
- Mounting type
Surface-mount
- Content
1 pc(s)
- Factory colour
Black

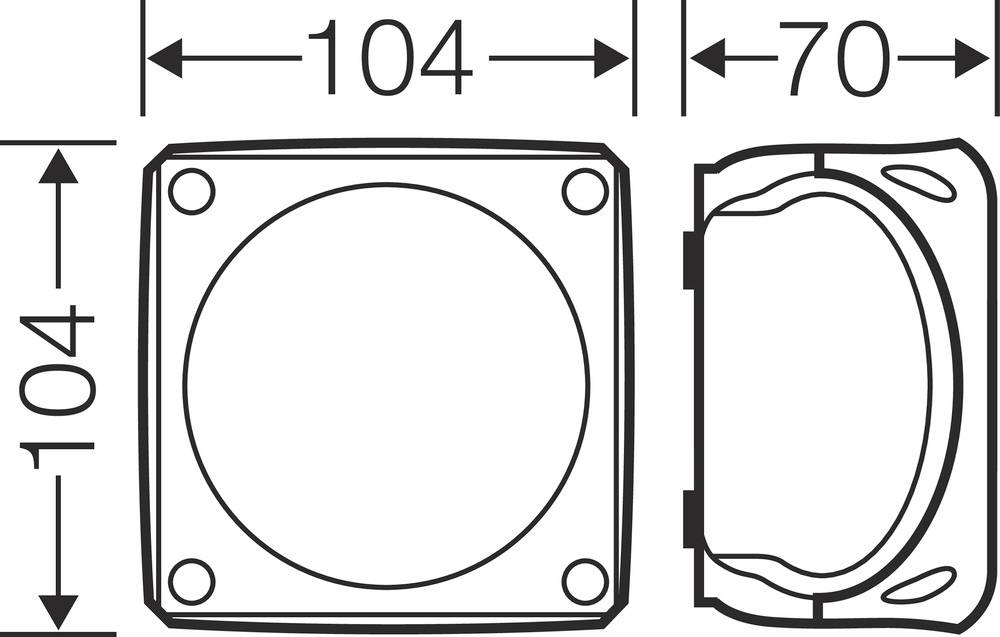

- Dim
(L x W) 104 mm x 104 mm
- Length
104 mm
- Width
104 mm
- Depth
70 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2294086 Hensel 62000048 Junction box Halogen-free, Sealable, Weather-proof (L x W) 104 mm x 104 mm 1 pc(s)
Description

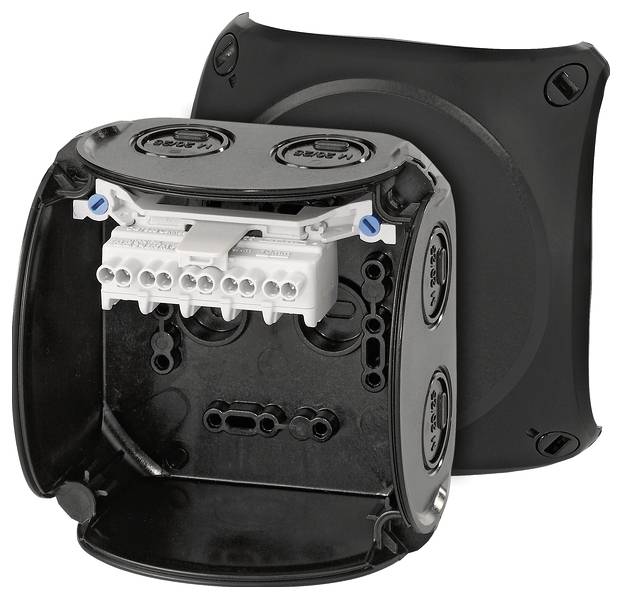

Cable junction box made of high-quality thermoplastic for unprotected outdoor installation or surface-mounted applications in buildings. Resistant to weather influences such as UV exposure to sunlight, protected against rain water, temperature resistant and impact resistant. Cover attachment via quick-release fasteners. With external straps for attachment. Seawater-resistant, for offshore applications. With approval for installation on ships. Terminal with 2 terminal points per pole up to 2.5 mm², 5-pole. Cable entry via metric knockouts. Extension cable connection in the accessories. With cover strap.
