Hensel 62000069 Junction box Halogen-free, Sealable, Weather-proof (L x W) 255 mm x 205 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Stackable: no.
- Number of introductions: 10
- Type of housing bushing: Prestamped
- Assembly: None
- Lid mounting: Screwed
- Introduction from behind: Yes
- Operating temperature: -25..70 °C.
- Shape: Rectangular
- Surface: Untreated
- Protection class IP66/IP67
- Pourable: no.
- Casting compound supplied: no.
- Material: Plastic
- Product type
Junction box
- Features
Halogen-free
Sealable
Weather-proof
- Mounting type
Surface-mount
- Content
1 pc(s)
- Factory colour
Grey

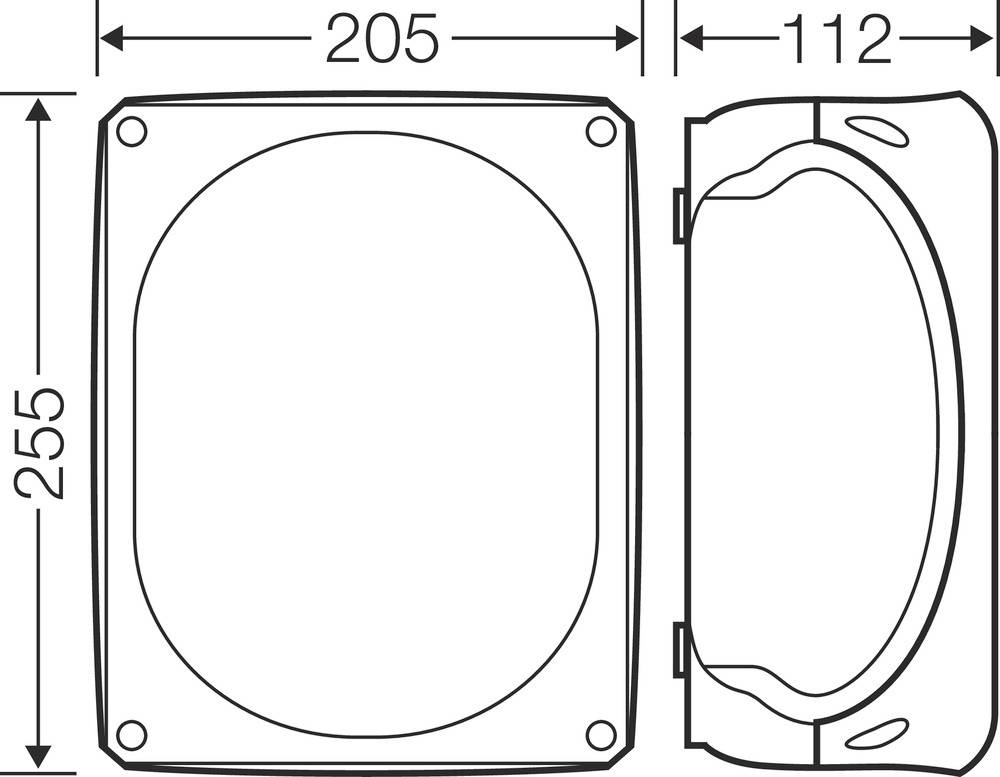

- Dim
(L x W) 255 mm x 205 mm
- Length
255 mm
- Width
205 mm
- Depth
112 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296342 Hensel 62000069 Junction box Halogen-free, Sealable, Weather-proof (L x W) 255 mm x 205 mm 1 pc(s)
Description

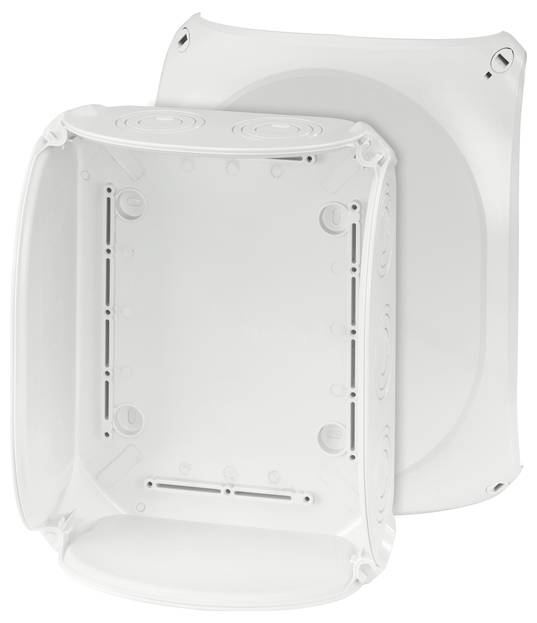

Cable junction box made of high-quality thermoplastic for unprotected outdoor installation or surface-mounted applications in buildings. Resistant to weather influences such as UV exposure to sunlight, protected against rain water, temperature resistant and impact resistant. Cover attachment via quick-release fasteners. With external straps for attachment. Seawater-resistant, for offshore applications. With approval for installation on ships. Cable junction box without terminal. Cable entry via metric knockouts in housing walls and floor. Extension cable connection in the accessories.
This text is machine translated.
This text is machine translated.
