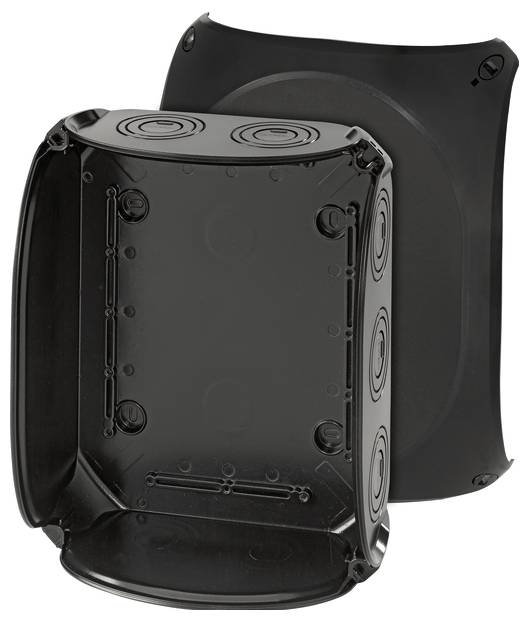

Hensel 62000070 Junction box Halogen-free, Sealable, Weather-proof (L x W) 255 mm x 205 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Stackable: no.
- Number of introductions: 10
- Type of housing bushing: Prestamped
- Assembly: None
- Lid mounting: Screwed
- Introduction from behind: Yes
- Operating temperature: -25..70 °C.
- Shape: Rectangular
- Surface: Untreated
- Protection class IP66/IP67
- Pourable: no.
- Casting compound supplied: no.
- Material: Plastic
- Product type
Junction box
- Features
Halogen-free
Sealable
Weather-proof
- Mounting type
Surface-mount
- Content
1 pc(s)
- Factory colour
Black

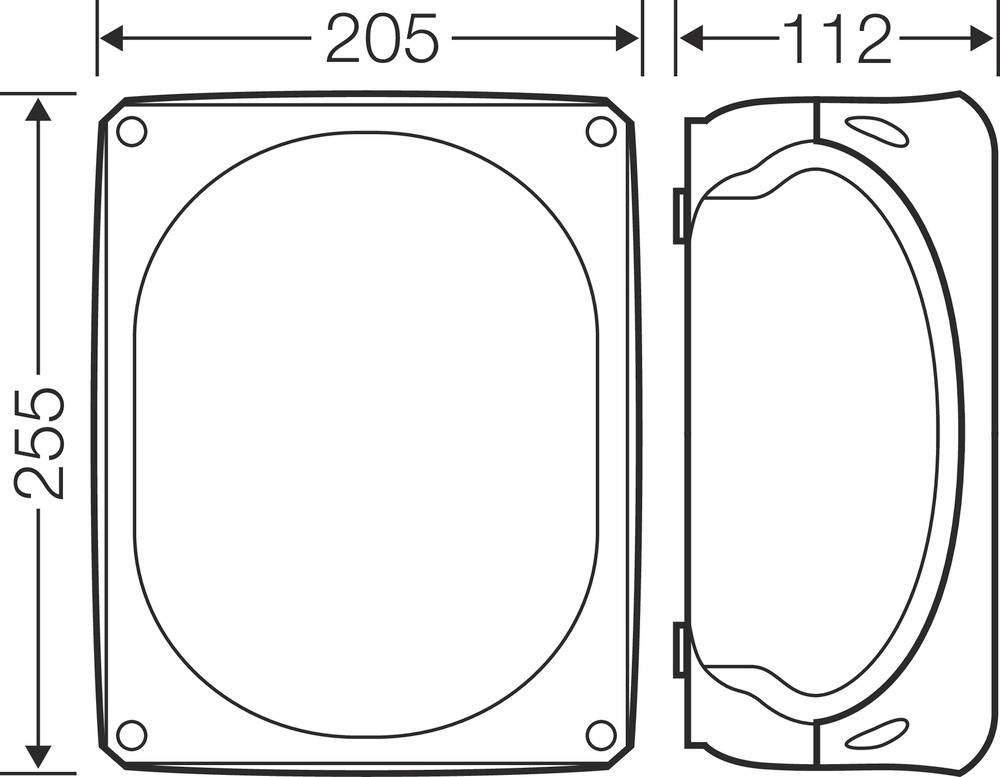

- Dim
(L x W) 255 mm x 205 mm
- Length
255 mm
- Width
205 mm
- Depth
112 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295082 Hensel 62000070 Junction box Halogen-free, Sealable, Weather-proof (L x W) 255 mm x 205 mm 1 pc(s)
Description
Cable junction box made of high-quality thermoplastic for unprotected outdoor installation or surface-mounted applications in buildings. Resistant to weather influences such as UV exposure to sunlight, protected against rain water, temperature resistant and impact resistant. Cover attachment via quick-release fasteners. With external straps for attachment. Seawater-resistant, for offshore applications. With approval for installation on ships. Cable junction box without terminal. Cable entry via metric knockouts in housing walls and floor. Extension cable connection in the accessories.
